SHARE 304S PRO

Name: SHARE 304S PRO
Brand: Share UAV
SKU: C114
Price: 134049.99 EUR
Availability: InStock

134.049,99 EUR

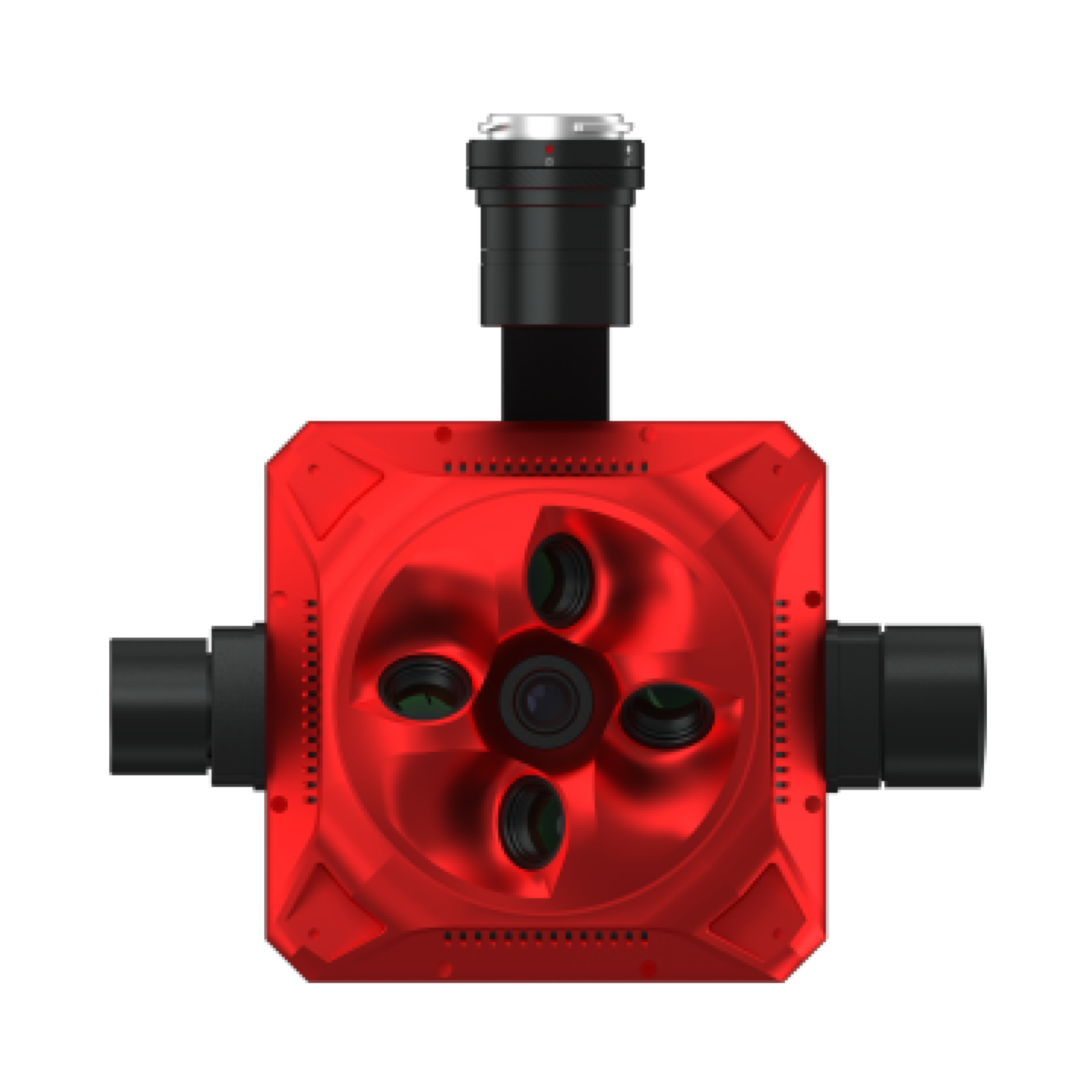

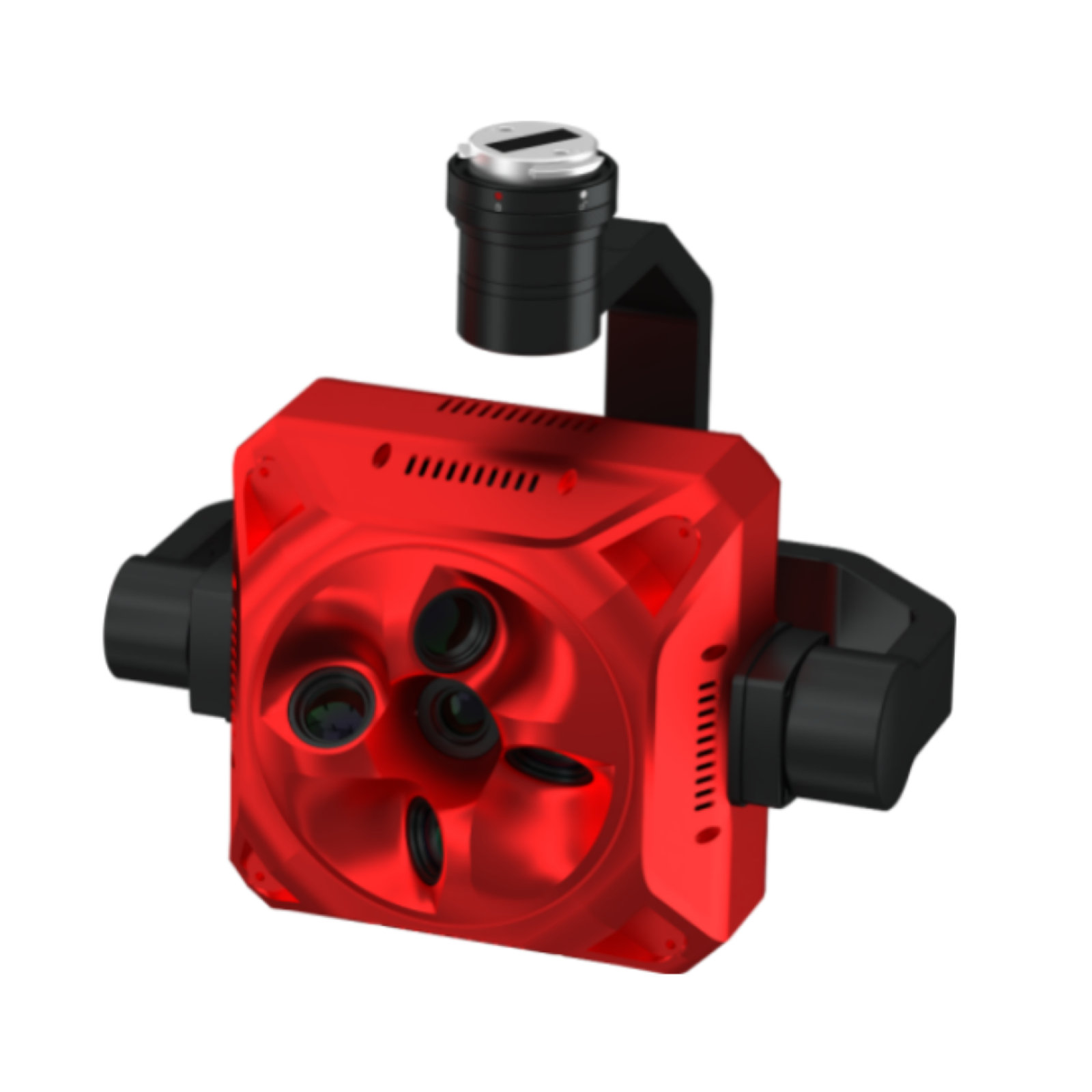

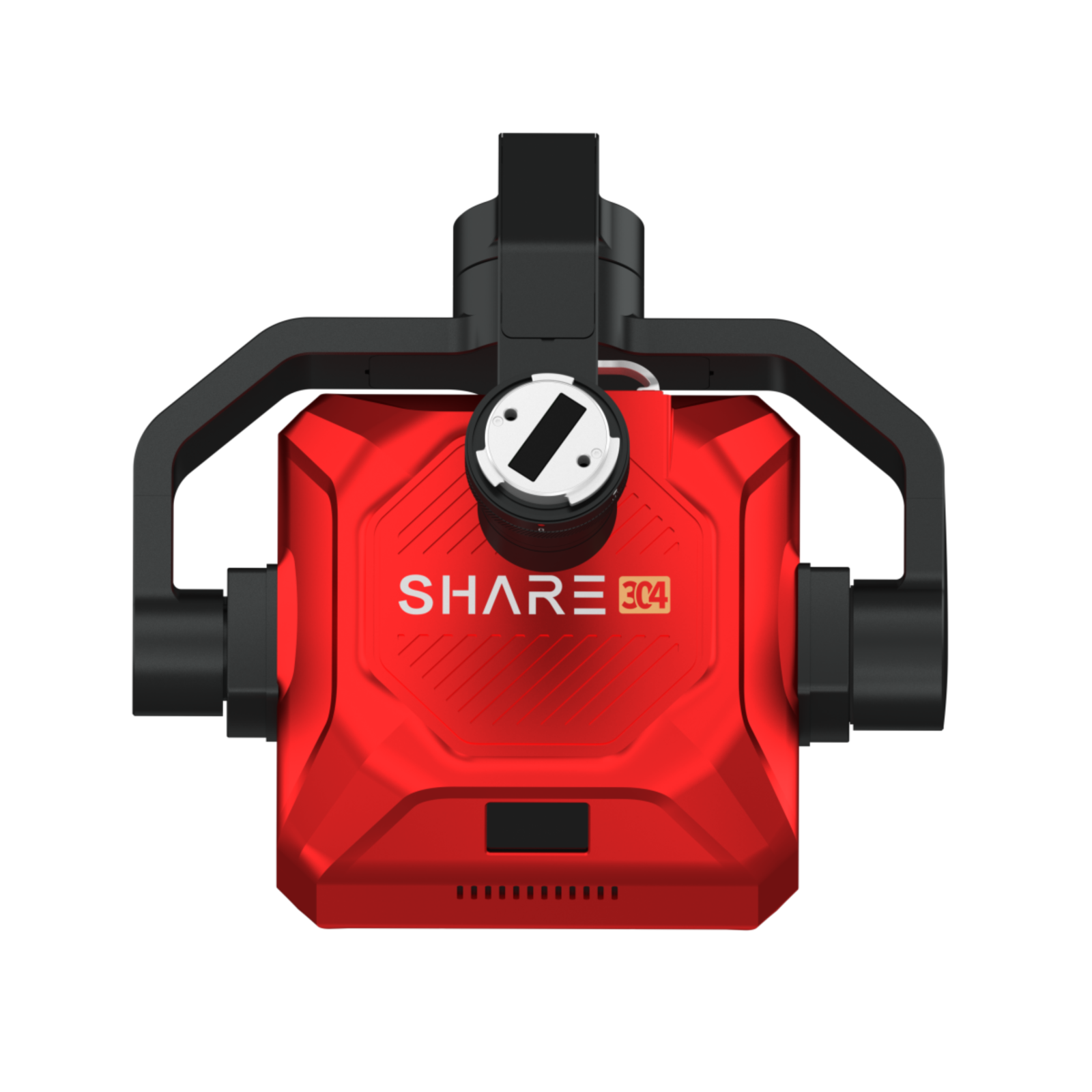

The SHARE 304S PRO is a professional oblique aerial mapping camera equipped with 5 Full-Frame lenses and a total resolution of 305 MP. It integrates the high-resolution SONY IMX455 sensor, professional SHARE S-ML 2.0 mapping optics, and a global mapping shutter, making it suitable for high-precision aerial surveying, 3D modeling, urban mapping, and large-scale geospatial data collection.

In stock

Stock limit

Add to cart

Product Code: C114 Do you need help? 0770531656

Add to wishlist

Description
Video (1)
Reviews (0)

Specifications
Key Features
Lenses	5 Full-Frame lenses
Total Resolution	305 MP
Resolution per Lens	61 MP
Sensor	SONY IMX455 Full-Frame
Sensor Size	36 × 24 mm
Pixel Size	3.76 μm
Focal Length	56 mm oblique / 40 mm orthophoto
SGS Global Shutter	up to 1,000,000 cycles
SHARE S-ML 2.0 Professional Lens	LD low-dispersion optics with nano-coating
Image Transmission	1080P, with 5-view monitoring
White Balance	independent calibration for each view
SDK Support	compatibility with flight control systems and further development
Storage	dual 1280 GB modules
Data Transfer Speed	up to 800 MB/s
Adjustable Parameters	ISO, white balance, color mode and shutter speed
Bluetooth Adjustment	supported
Compatibility

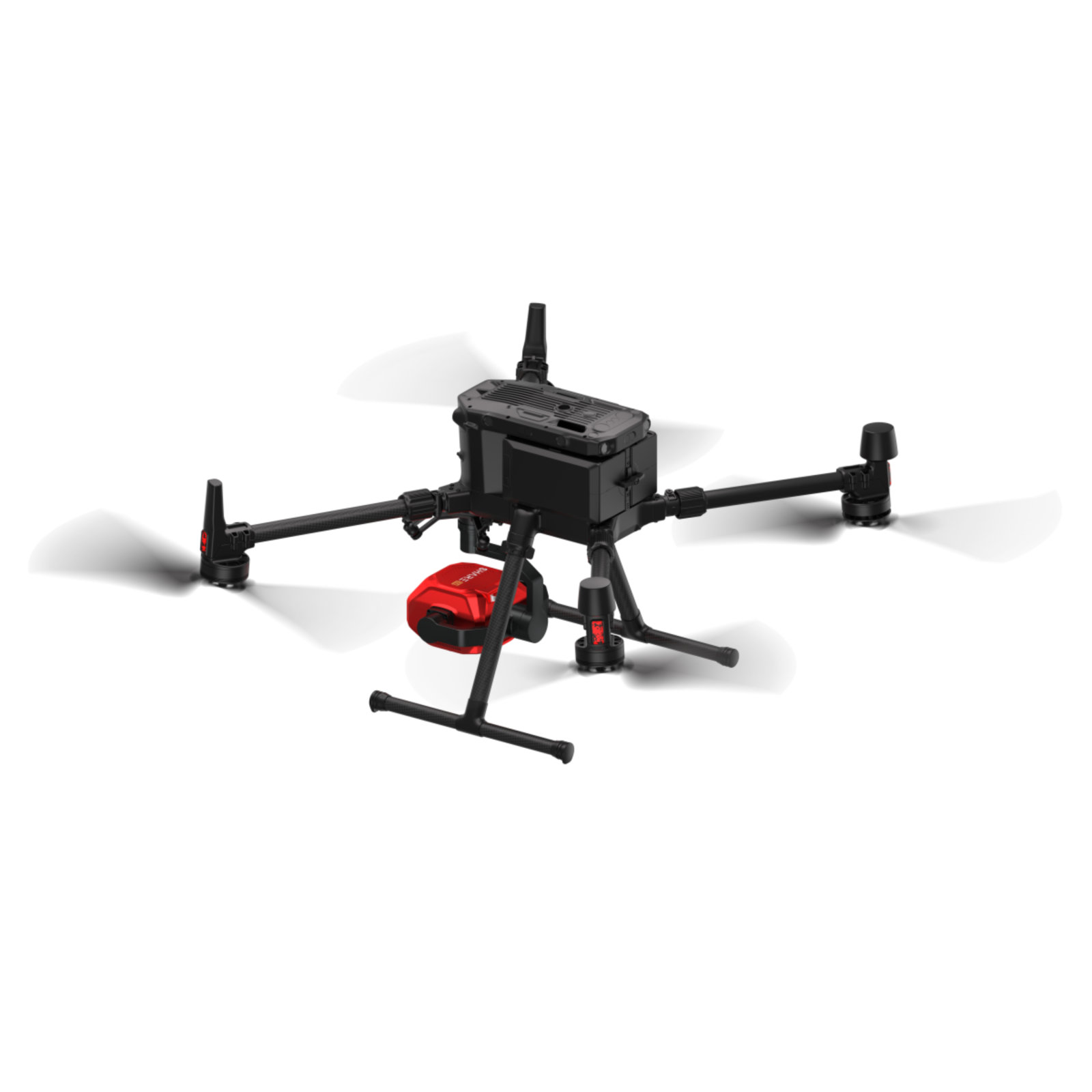

Supported Aircraft	DJI Matrice 350 RTK
Compatible Drones	Various multirotor drones
Compatible Drones	Various fixed-wing drones
Interface	DJI SkyPort
Aviation Interface	Universal aviation interface
Applications
Topographic Mapping	Yes
3D Mapping	Yes
Oblique Photogrammetry	Yes
3D Modeling	Yes
Urban Mapping	Yes
High-Precision Geospatial Data Collection	Yes
Technical Parameters
Dimensions	182 × 203 × 196 mm
Weight	1,280 g
Effective Pixels	61 MP per lens, 305 MP total
Sensor	36 × 24 mm Full-Frame
Pixel Size	3.76 μm
Focal Length	56 mm oblique / 40 mm orthophoto
Storage Capacity	2 × 1280 GB
Data Transfer Speed	up to 800 MB/s
Package Contents
Package Contents	1 × SHARE 304S PRO – 305 MP Full-Frame Oblique Aerial Camera with 5 Lenses

Product safety information

The SHARE 304S PRO is a 5-lens oblique aerial camera with full-frame sensors of 61 MP each (305 MP in total), with a 56 mm focal length for the oblique images and 40 mm for the down-view, a 3-axis gimbal and two 1280 GB storage modules. It weighs approx. 830 g (1280 g with the gimbal) and mounts on DJI Matrice 350 RTK drones through the DJI SkyPort interface, as well as on other multi-rotor and fixed-wing drones. It is intended for professional use only, by trained persons. It is not a toy.

Warnings:

Read the manufacturer's documentation before use.
Use the equipment only with a compatible drone, with original cables and accessories.
Before every flight, check the equipment for damage and make sure it is mounted correctly on the drone. The equipment weighs up to 1280 g, so observe the drone's payload capacity.
Use the equipment at temperatures between -20 °C and 50 °C. Do not expose it to water, rain or excessive moisture and do not immerse it.
The equipment may heat up during operation. Do not cover it and do not touch it immediately after use.
Do not touch the lenses and sensors with your fingers. Clean the lenses only with materials intended for optical equipment.
Do not open, disassemble or modify the equipment. Do not use it if it is damaged.
The camera can record images and videos of people. Comply with privacy and personal data protection law (including GDPR) and use it only during authorized operations.
Comply with aviation law in your country.
Keep out of reach of children.

Manufacturer: SHARE (SHAREUAV), Shenzhen, China. Read the documentation supplied by the manufacturer with the product.
