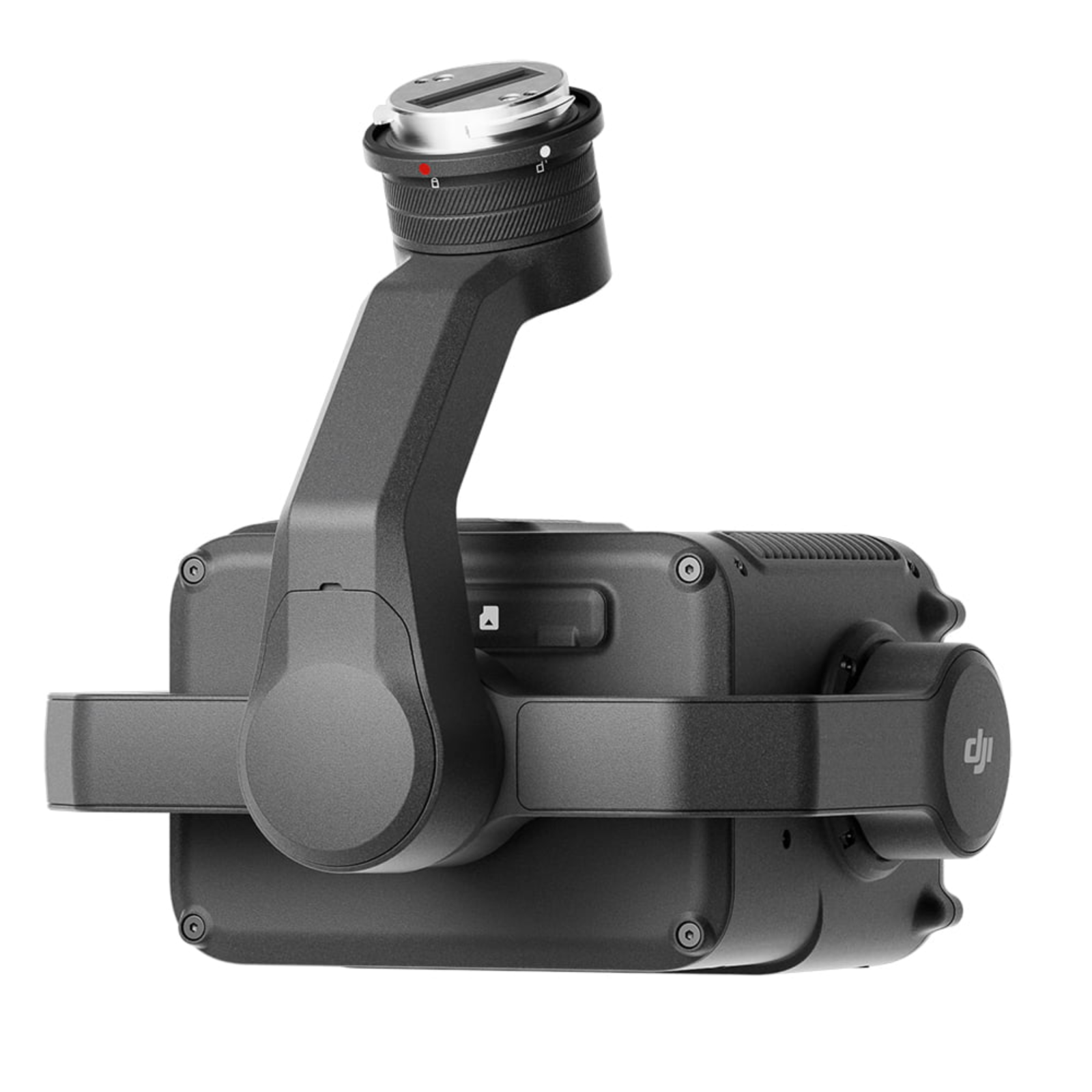

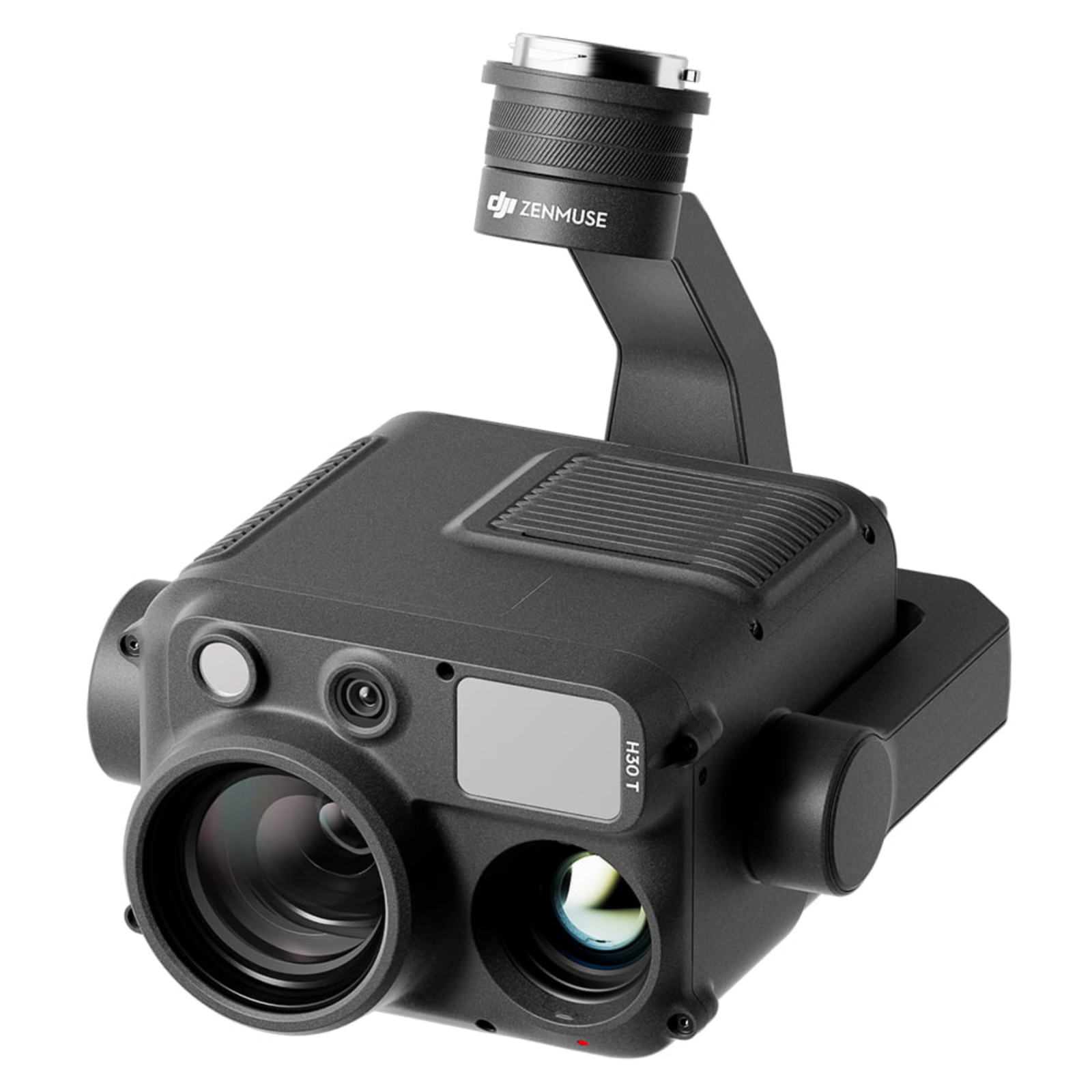

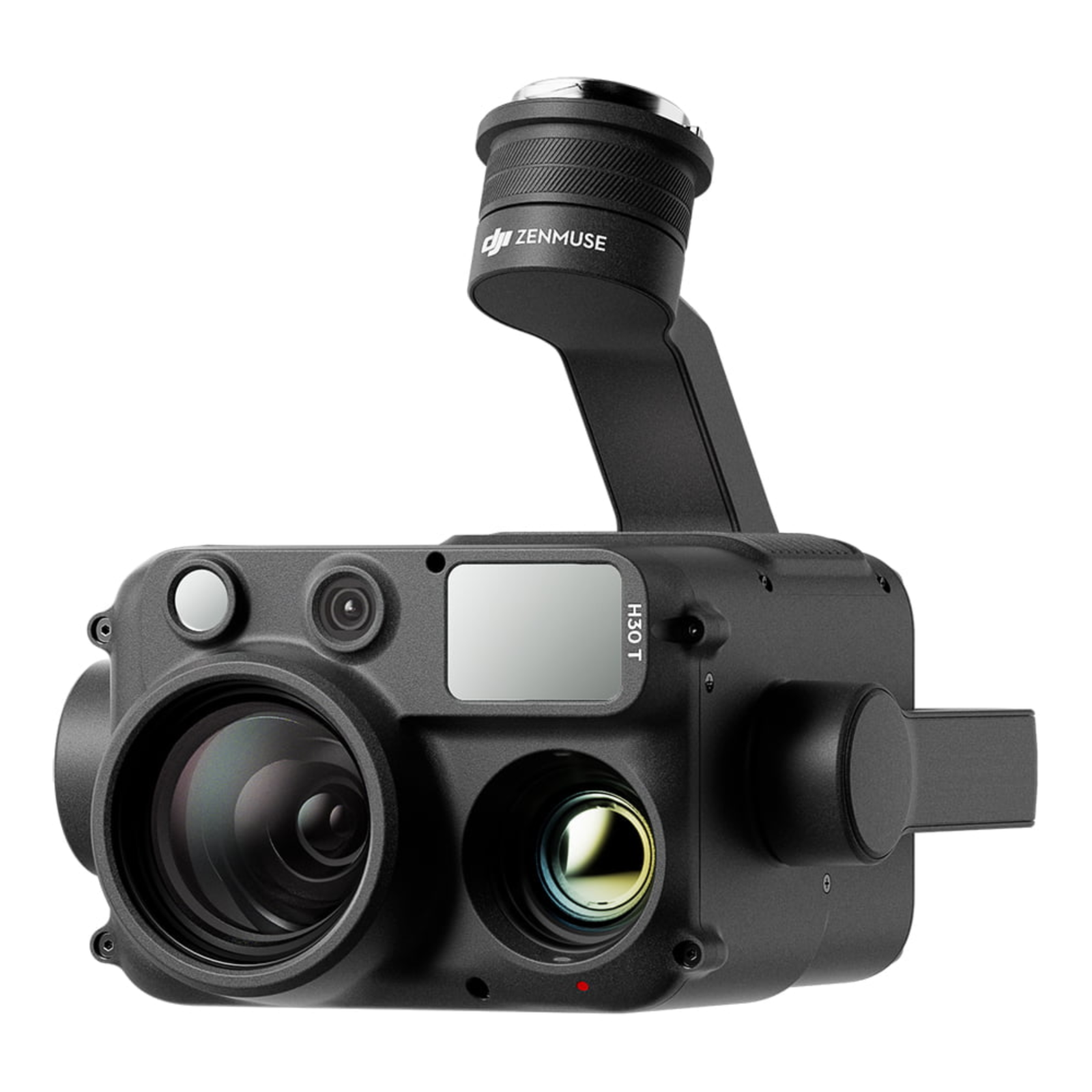

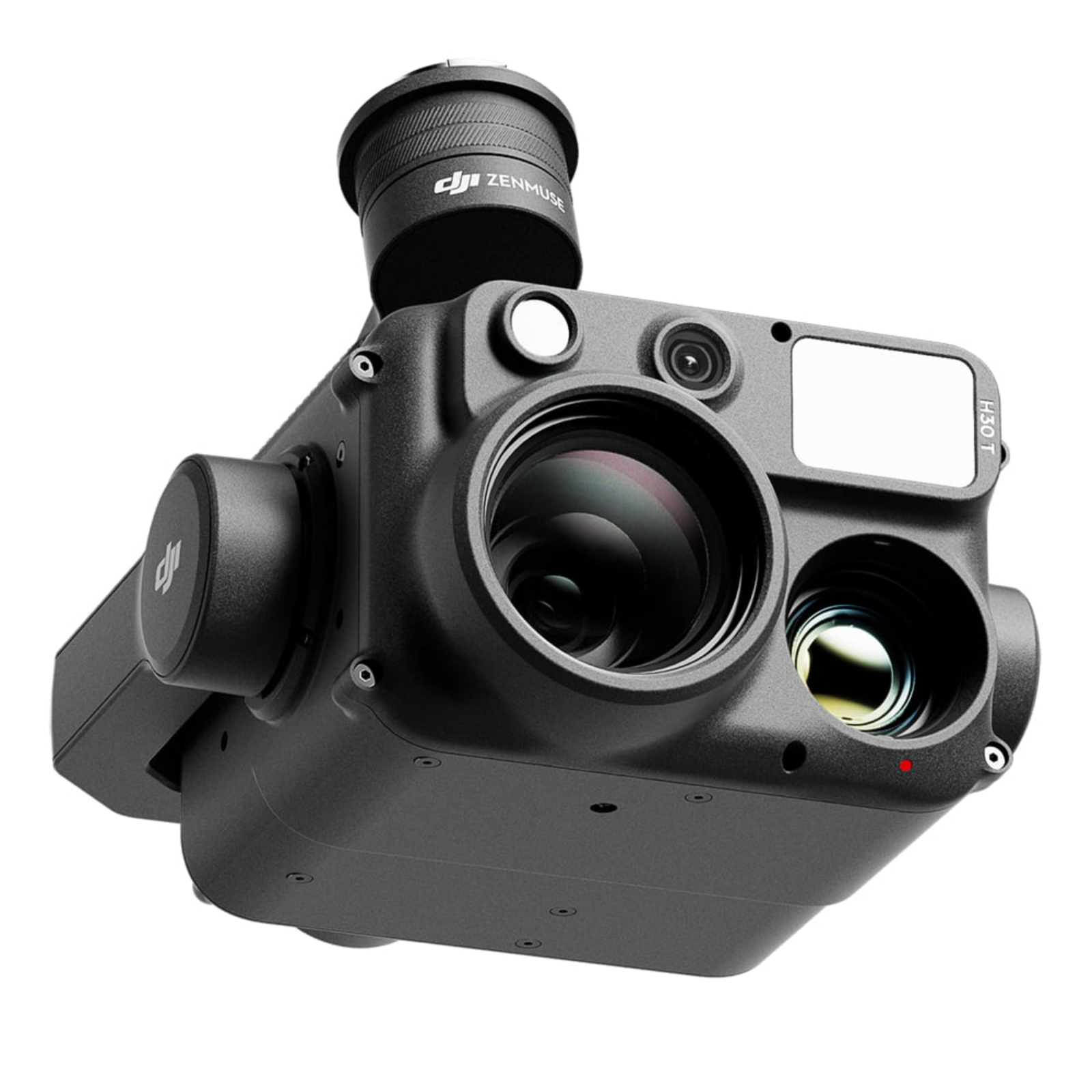

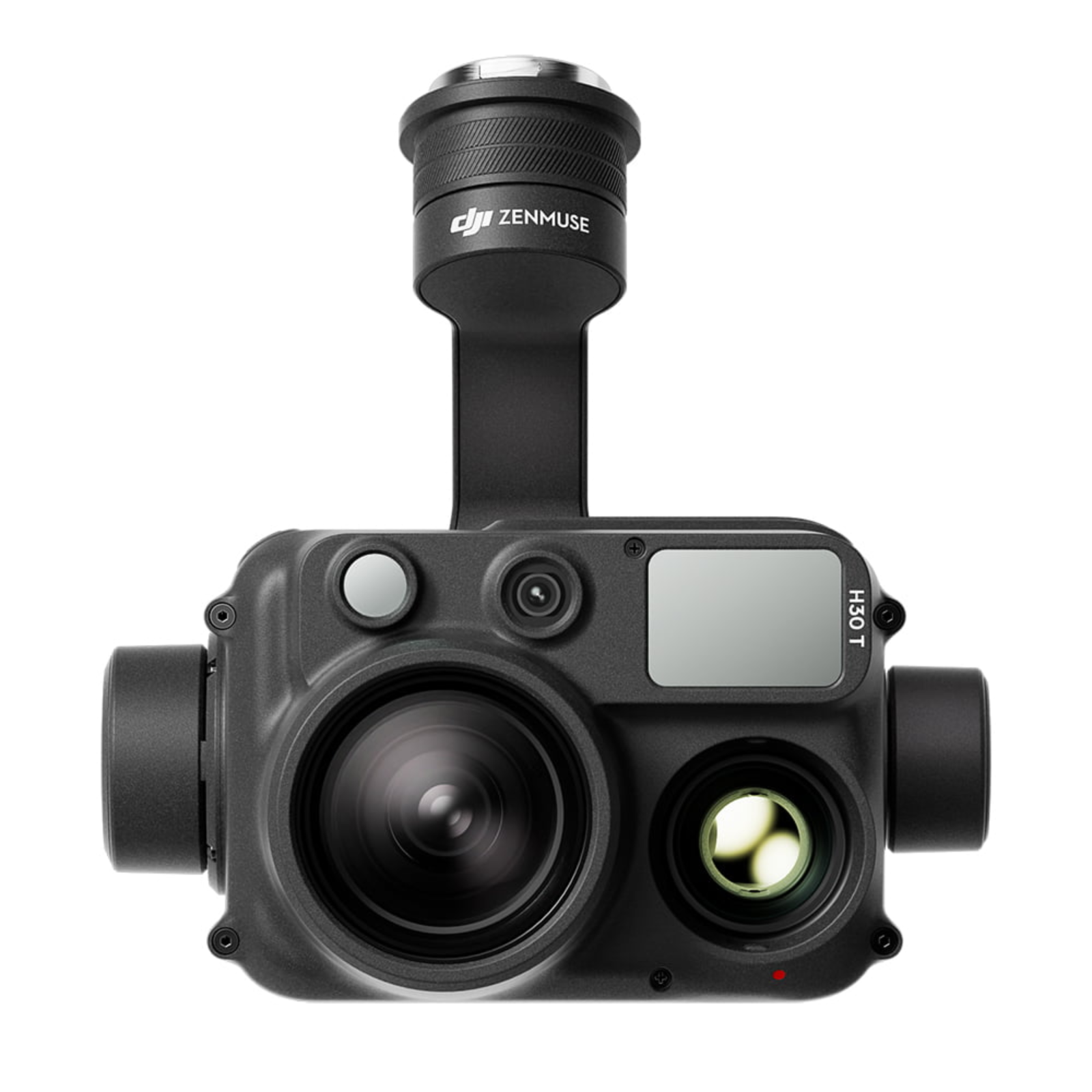

DJI ZENMUSE H30T

12.693,47 EUR

The Zenmuse H30 series is a leading multi-sensor solution designed for use in all weather conditions. It integrates five main modules: a wide-angle camera, a zoom camera, an infrared thermal camera, a laser rangefinder and an NIR auxiliary light. Thanks to the latest generation of intelligent algorithms, the Zenmuse H30 offers advanced perception and imaging performance, ensuring excellent visibility both during the day and at night. Its versatility recommends it for a wide range of applications, from public safety and energy infrastructure inspections to water resources management and forestry activities.

In stock

Stock limit

Add to cart

Product Code: C80 Do you need help? 0770531656

Add to wishlist

Description
Video (1)
Reviews (0)

Specifications
General
Dimensions	170 × 145 × 165 mm (L × W × H)
Weight	920 ± 5 g
Power	28 W
Ingress Protection Rating	IP54 (under controlled laboratory conditions per IEC60529; the rating may decrease over time due to wear)
Operating / Storage Temperature	-20 °C to 50 °C / -20 °C to 60 °C
Supported Aircraft	DJI Matrice 400 DJI Matrice 350 RTK DJI Matrice 300 RTK (requires DJI RC Plus)
Gimbal
Stabilization / Mounting	3-axis (tilt, roll, pan) / detachable DJI SKYPORT
Angular Vibration Range	Hover: ±0.002° / flight: ±0.004°
Mechanical Range	Tilt: -132.5° to +73° Roll: ±60° Pan: ±328°
Controllable Range	Tilt: -120° to +60° Pan: ±320° Modes: Follow / Free / Re-center
Zoom Camera
Sensor	1/1.8" CMOS, 40 MP effective pixels
Lens	Focal length: 7.1 – 172 mm (equivalent 33.4 – 809.3 mm) Aperture: f/1.6 – f/5.2 DFOV: 66.7° – 2.9°
Focus / Exposure	MF, AFC, AFS; manual or auto exposure, compensation ±3.0 (1/3 steps), AE lock
Shutter / ISO	1/8000 – 2 s ISO 100 – 25600 (single shot) / 100 – 819200 (night scene)
Video	3840 × 2160 @ 30 fps, 1920 × 1080 @ 30 fps Night scene: 1920 × 1080 @ 25 / 15 / 5 fps H.264 / H.265, CBR / VBR, MP4, with subtitles
Photo	Max 7328 × 5496 or 3664 × 2748 (JPG)
Wide-Angle Camera
Sensor	1/1.3" CMOS, 48 MP effective pixels
Lens	Focal length: 6.72 mm (equivalent 24 mm) Aperture: f/1.7 DFOV: 82.1°
Shutter / ISO	1/8000 – 2 s ISO 100 – 25600 (single shot) / 100 – 409600 (night scene)
Video / Photo	3840 × 2160 @ 30 fps, 1920 × 1080 @ 30 fps (night scene 1920 × 1080 @ 25 / 15 / 5 fps) Photo: max 8064 × 6048 or 4032 × 3024 (JPG)
Infrared Thermal Camera
Sensor	Uncooled VOx microbolometer, 12 μm pixel pitch, 8 – 14 μm spectral band
Lens	Focal length: 24 mm (equivalent 52 mm), aperture f/0.95, DFOV 45.2° Digital zoom equivalent: 32×
Resolution	Video 1280 × 1024 @ 30 fps (MP4, H.264 / H.265) / photo 1280 × 1024 (R-JPEG)
NETD	≤ 50 mK @ f/1.0
Temperature Measurement	Spot, area, and center-point measurement High Gain: -20 °C to 150 °C (up to 450 °C with infrared density filter) Low Gain: 0 °C to 600 °C (up to 1600 °C with infrared density filter) Temperature alert, sun burn protection, auto / manual FFC
Palettes	White Hot, Black Hot, Tint, Iron Red, Rainbow 1, Rainbow 2, Medical, Arctic, Fulgurite, Hot Iron
Laser Range Finder
Wavelength	905 nm (Class 1)
Measurement Range	3 – 3000 m Common objects: grasslands 2000 m, woodlands 1900 m, road surfaces 1700 m
Measurement Accuracy	≤ 500 m: ±(0.2 m + distance × 0.15%) > 500 m: ±1.0 m
Laser Spot Size	@100 m: approx. 50 × 450 mm @1000 m: approx. 450 × 4500 mm
NIR Auxiliary Light
Parameters	Wavelength 850 nm, FOV 4.6 ± 0.6° (round), Class 1 Illumination: approx. 8 m diameter circle @ 100 m
Special Features
Zoom	34× hybrid optical zoom, 400× max zoom
Supported Features	Link Zoom, Click to Aim, High-Res Grid Photo, Night Scene, Timestamp, Smart Capture, Video Pre-Recording, UHR Infrared Image
Storage and Post-Processing
microSD Card	U3 / Class 10 / V30 or above, exFAT file system; supports security code (card encryption from DJI Pilot 2)
Software	Mapping: DJI Terra, DJI FlightHub 2 Infrared analysis: DJI Thermal Analysis Tool 3

Product safety information

The DJI Zenmuse H30T is a multi-sensor payload with a 1280×1024 thermal camera, a 40 MP zoom camera (34× hybrid zoom), a 48 MP wide camera, a 905 nm laser rangefinder (Class 1, 3–3000 m) and an 850 nm NIR auxiliary light (Class 1). It has an IP54 protection rating and operates from −20 °C to 50 °C, at a power consumption of 28 W. It is compatible with the DJI Matrice 400, Matrice 350 RTK and Matrice 300 RTK (the latter requires the DJI RC Plus). It is intended for professional use only, by trained persons. It is not a toy.

Warnings:

Read the official DJI documentation (user manual) before use.
The equipment contains a laser rangefinder and an NIR auxiliary light, both Class 1. Do not deliberately look into the laser or light windows with optical instruments (magnifiers, binoculars) and do not use the equipment if it is damaged.
Do not point the camera at the sun or at strong light or laser sources, as the sensors can be damaged. Fit the protective cover when the equipment is not in use.
Use the equipment only with compatible aircraft and original DJI accessories. Before every flight, check that it is fixed correctly and shows no damage. Remove the gimbal protective cover.
The IP54 protection rating is not permanent and may decrease over time. Do not immerse the equipment in water and do not use it in heavy rain.
Observe the operating temperature (−20 °C to 50 °C).
Do not touch the lenses and windows with your fingers. Clean them only with materials intended for optical equipment.
Do not open, disassemble or modify the equipment.
The equipment can capture images of people. Comply with privacy and personal data protection law (including GDPR) and use it only during authorized operations.
Comply with aviation law in your country.
Keep out of reach of children.
