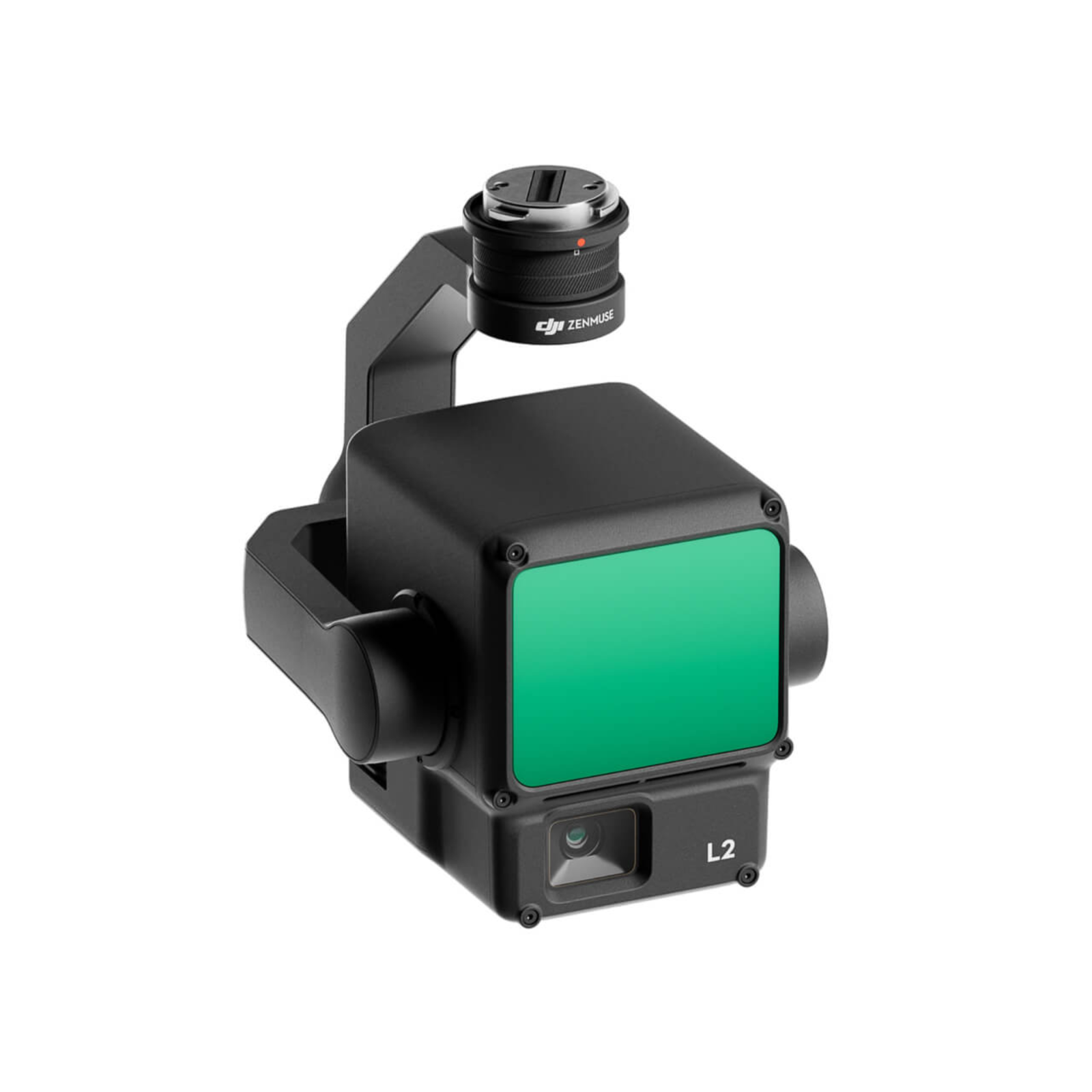

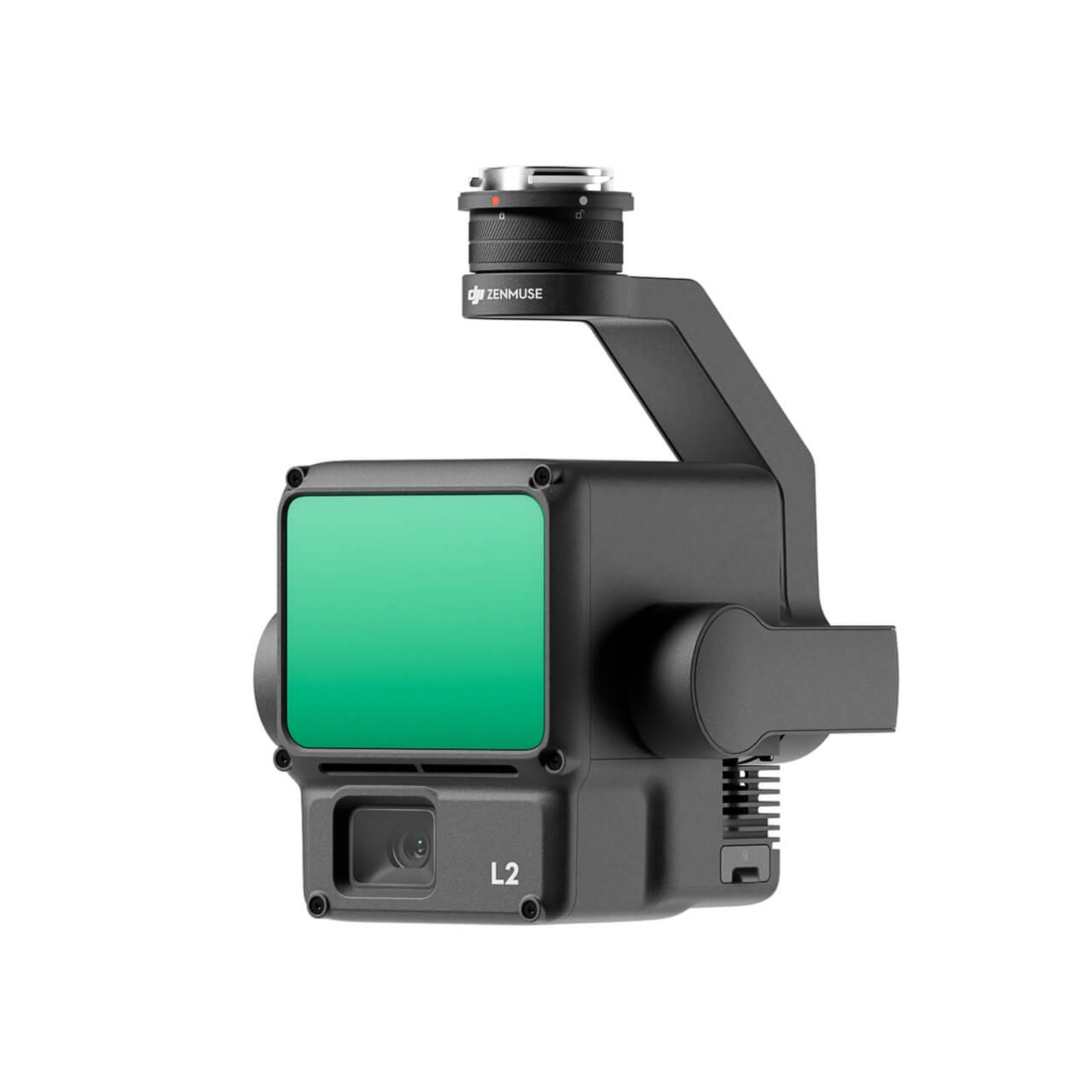

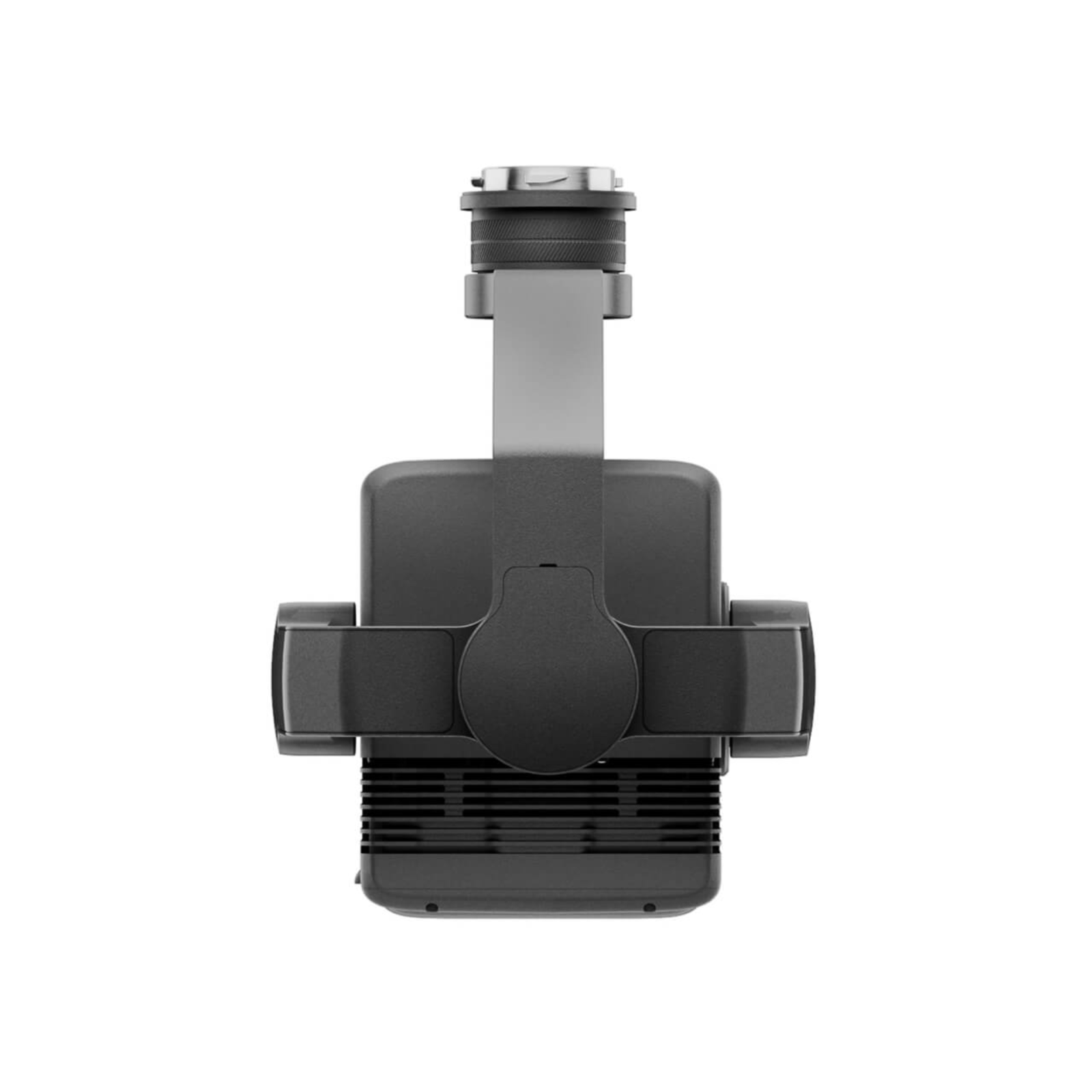

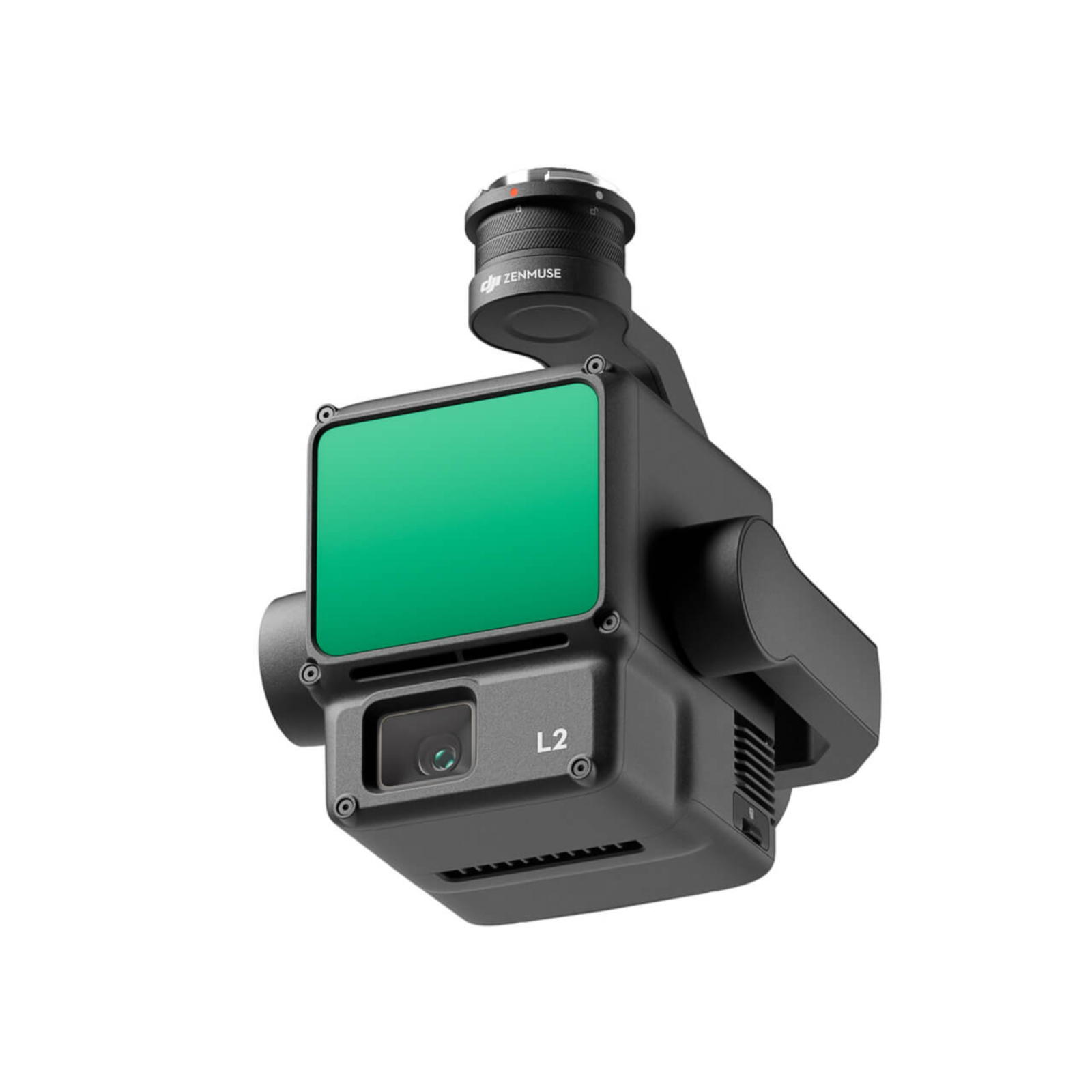

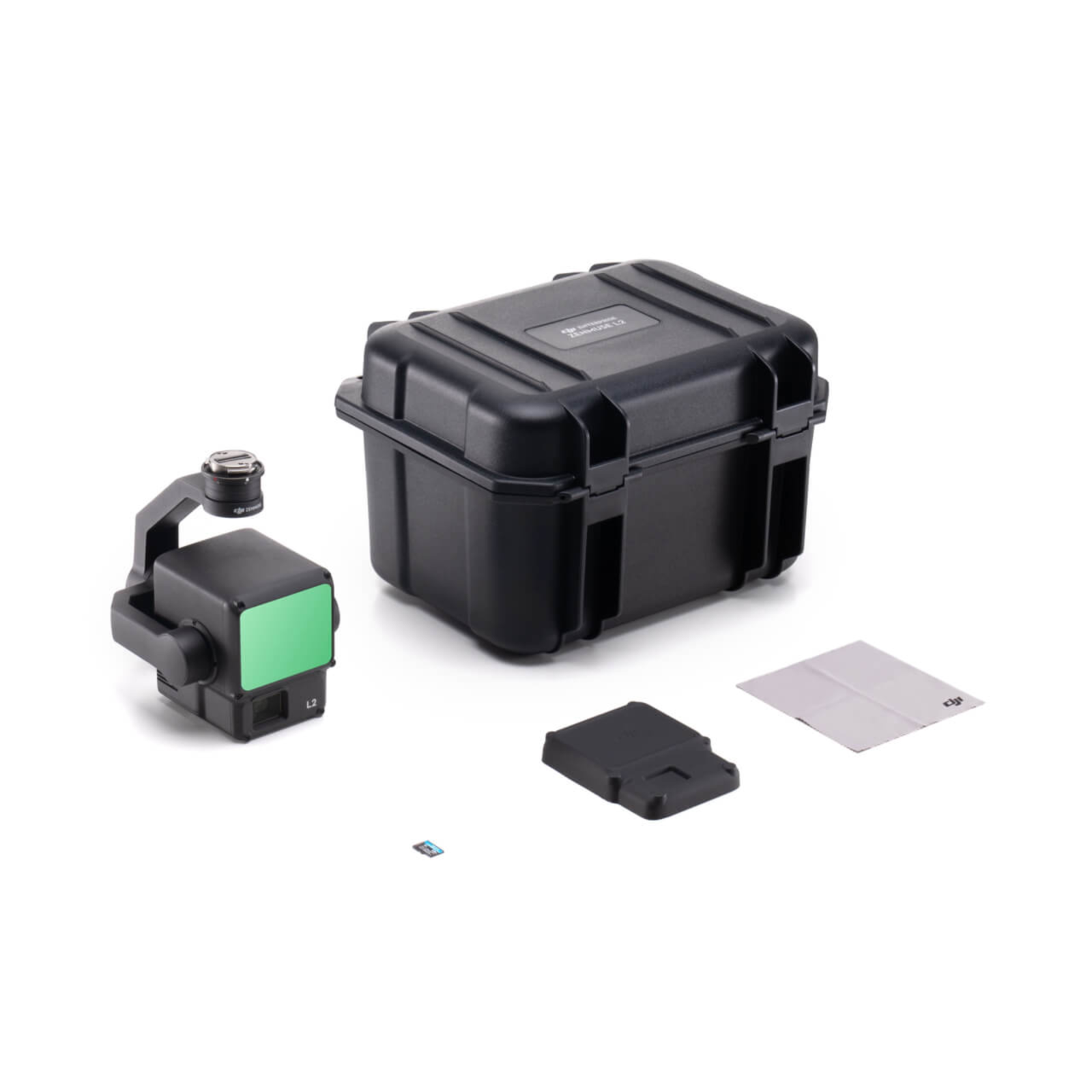

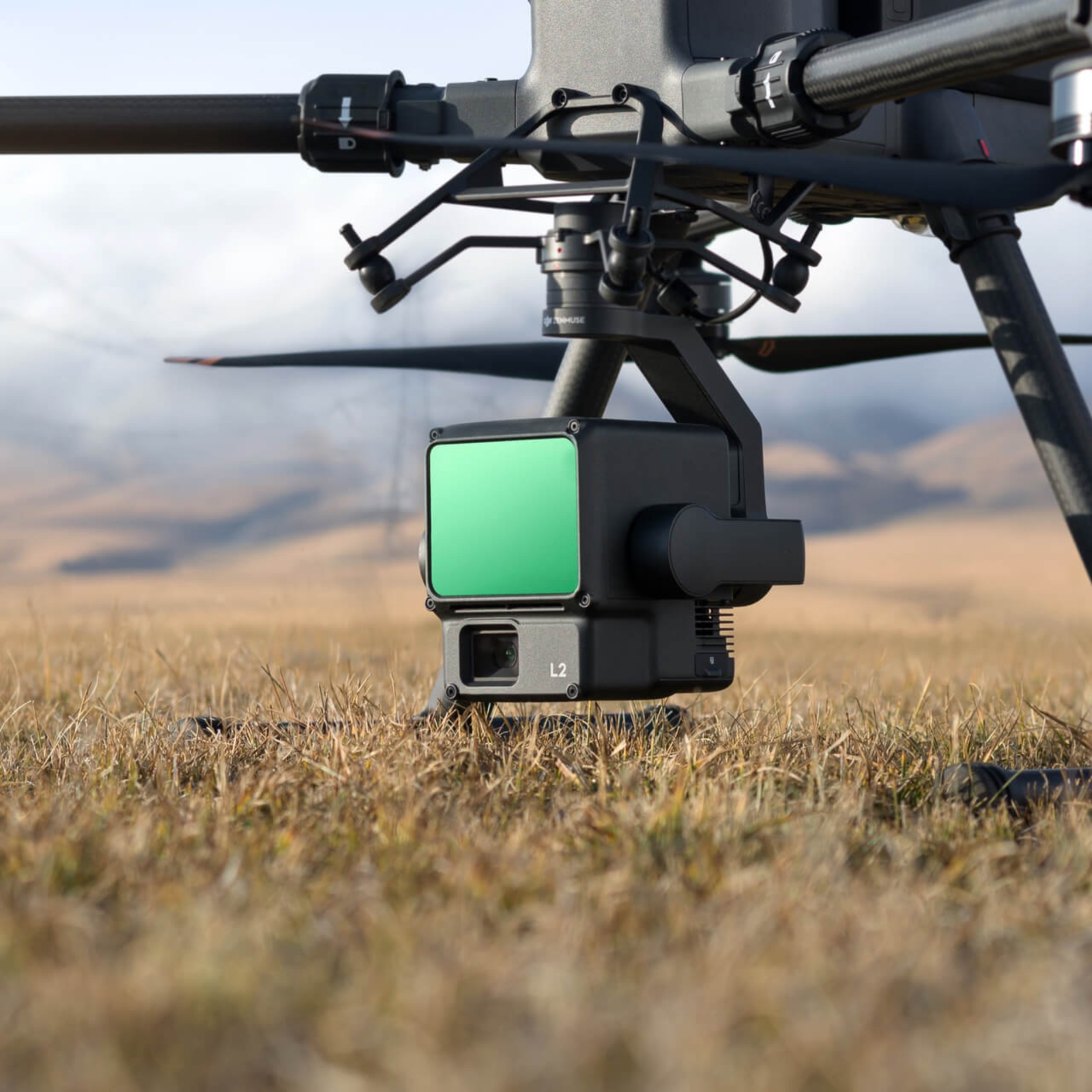

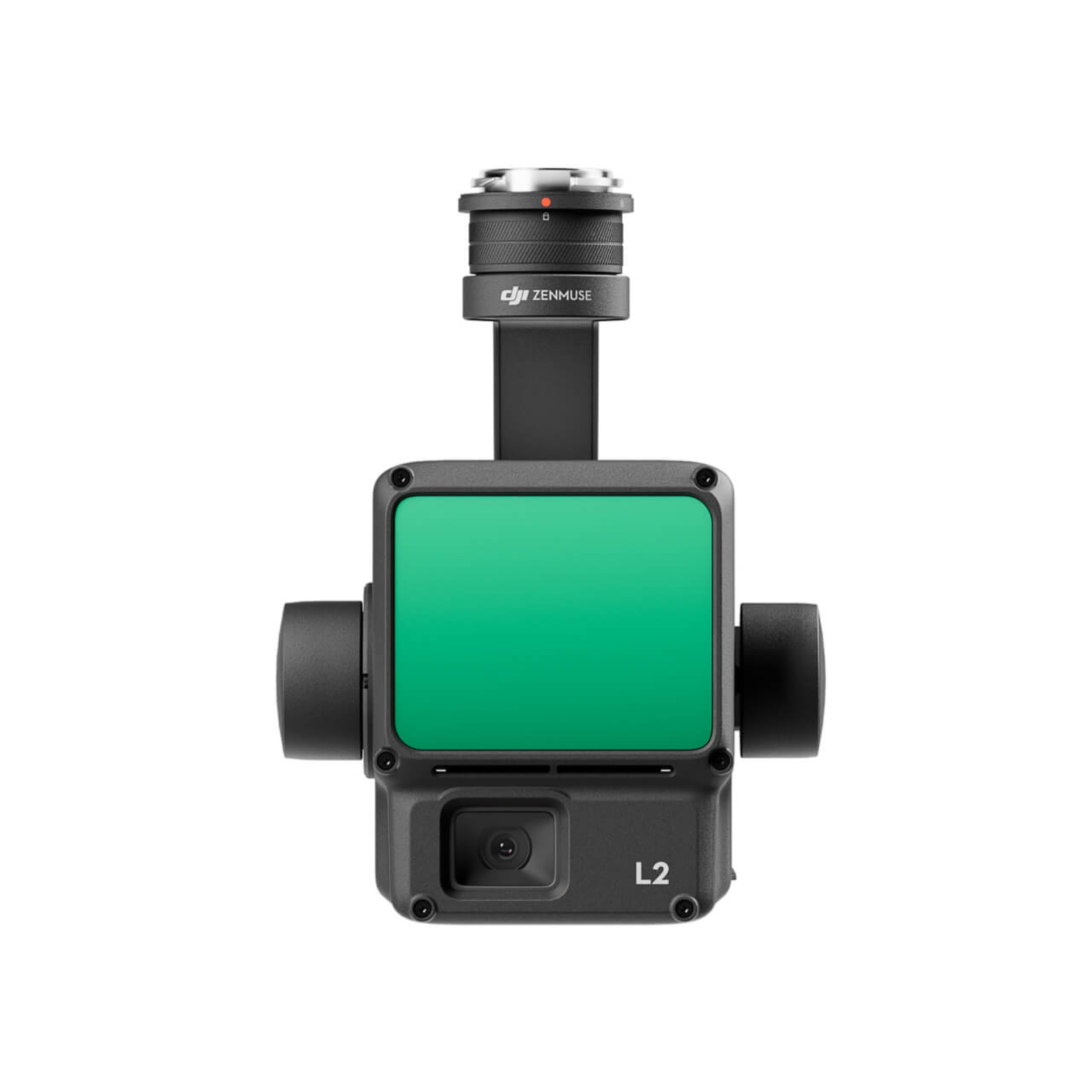

DJI ZENMUSE L2

The DJI Zenmuse L2 is a LiDAR payload with a Class 1 laser (IEC 60825-1:2014, 905 nm), a high-accuracy IMU system and a 20 MP 4/3 CMOS RGB mapping camera. It weighs 905±5 g, has an IP54 protection rating and operates from −20 °C to 50 °C, at a power consumption of 28 W (58 W maximum). It is compatible with the DJI Matrice 400, Matrice 350 RTK and Matrice 300 RTK (the latter requires the DJI RC Plus). It is intended for professional use only, by trained persons. It is not a toy.

Warnings:

• Read the official DJI documentation (user manual) before use.
• The equipment contains a Class 1 laser. Do not deliberately look into the laser window with optical instruments (magnifiers, binoculars) and do not use the equipment if it is damaged.
• Do not point the camera at the sun or at strong light or laser sources, as the sensors can be damaged. Fit the protective cover when the equipment is not in use.
• Use the equipment only with compatible aircraft and original DJI accessories. Before every flight, check that it is fixed correctly and shows no damage. Remove the gimbal protective cover.
• The IP54 protection rating is not permanent and may decrease over time. Do not immerse the equipment in water and do not use it in heavy rain.
• Observe the operating temperature (−20 °C to 50 °C) and storage temperature (−20 °C to 60 °C).
• Use only microSD cards recommended by the manufacturer.
• Do not touch the lenses and laser window with your fingers. Clean them only with materials intended for optical equipment.
• Do not open, disassemble or modify the equipment.
• The equipment can capture images of people. Comply with privacy and personal data protection law (including GDPR) and use it only during authorized operations.
• Comply with aviation law in your country.
• Keep out of reach of children.

Manufacturer: SZ DJI Technology Co., Ltd., Shenzhen, China. EU contact: DJI GmbH, Industriestrasse 12, 97618 Niederlauer, Germany.

User Manual (PDF, EN)
