DJI ZENMUSE H20T

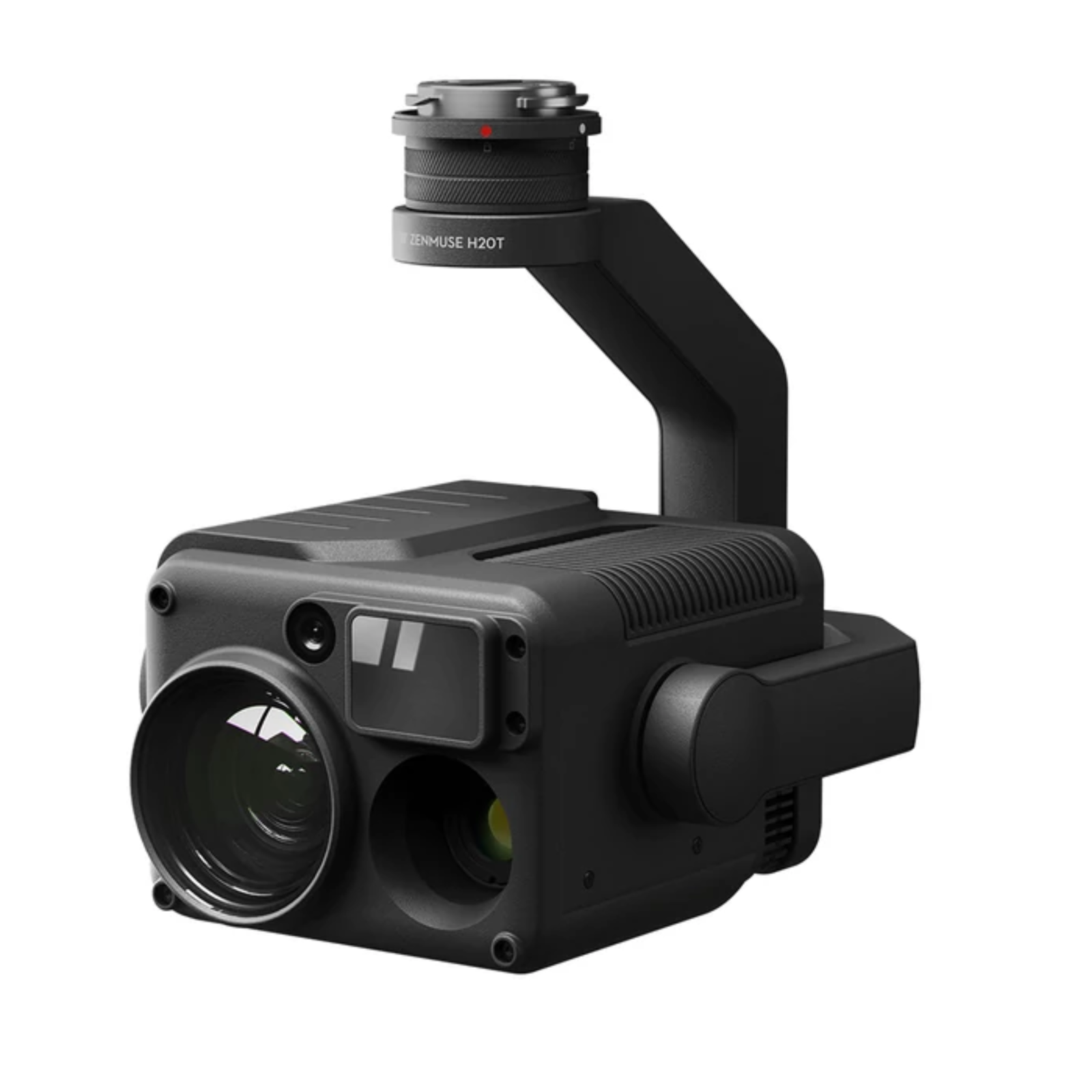

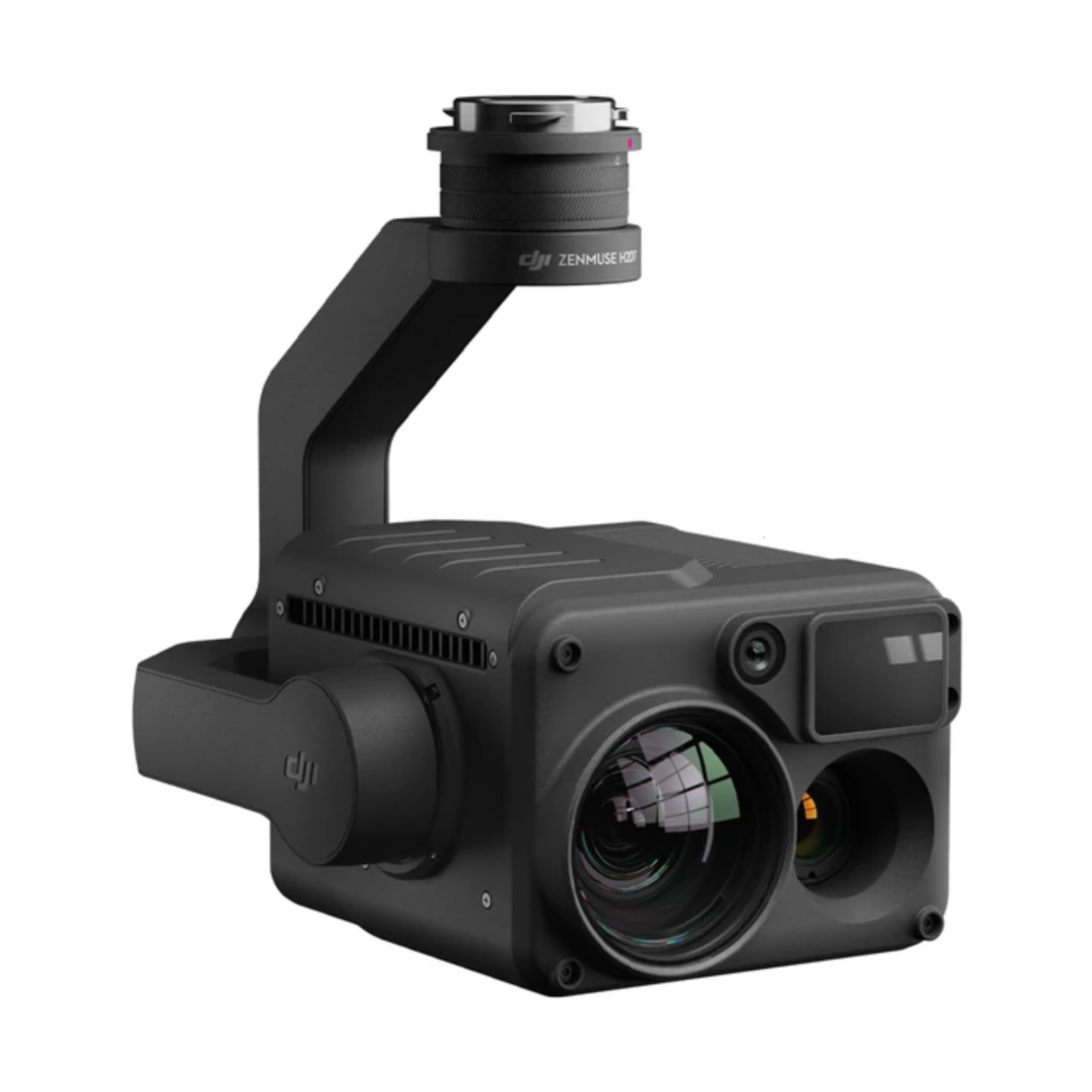

The DJI Zenmuse H20T is a multi-sensor payload with a 20 MP zoom camera (23× hybrid zoom, 200× maximum), a 12 MP wide camera, a 640×512 thermal camera and a 905 nm laser rangefinder (Class 1M, 3–1200 m). It weighs 828±5 g, has an IP44 protection rating and operates from −20 °C to 50 °C. It is compatible with the DJI Matrice 300 RTK. It is intended for professional use only, by trained persons. It is not a toy.

Warnings:

• Read the official DJI documentation (user manual) before use.
• The laser rangefinder is Class 1M. Do not view the laser beam with optical instruments (binoculars, telescopes, magnifiers), as eye injury may occur. Do not point the laser at the eyes of people or animals.
• Do not point the camera at the sun or at strong light or laser sources, as the sensors (especially the thermal one) can be damaged. Fit the protective cover when the equipment is not in use.
• Use the equipment only with compatible aircraft and original DJI accessories. Before every flight, check that it is fixed correctly and shows no damage. Remove the gimbal protective cover.
• The IP44 protection rating offers limited protection against splashes. Do not immerse the equipment in water and do not use it in heavy rain.
• Observe the operating temperature (−20 °C to 50 °C) and storage temperature (−20 °C to 60 °C).
• Use only microSD cards recommended by the manufacturer.
• Do not touch the lenses and laser window with your fingers. Clean them only with materials intended for optical equipment.
• Do not open, disassemble or modify the equipment.
• The equipment can capture images of people. Comply with privacy and personal data protection law (including GDPR) and use it only during authorized operations.
• Comply with aviation law in your country.
• Keep out of reach of children.

Manufacturer: SZ DJI Technology Co., Ltd., Shenzhen, China. EU contact: DJI GmbH, Industriestrasse 12, 97618 Niederlauer, Germany.

User Manual (PDF, EN)
