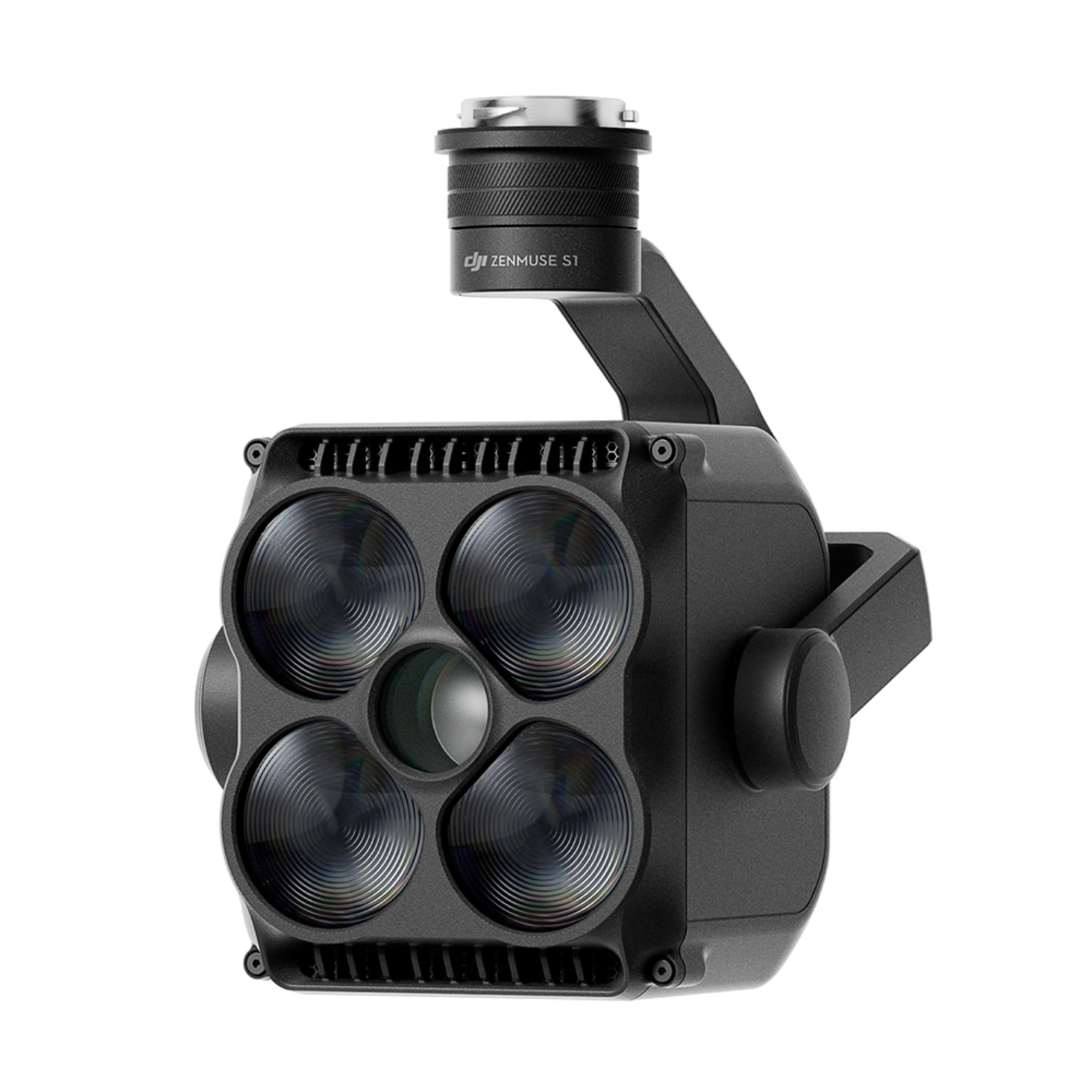

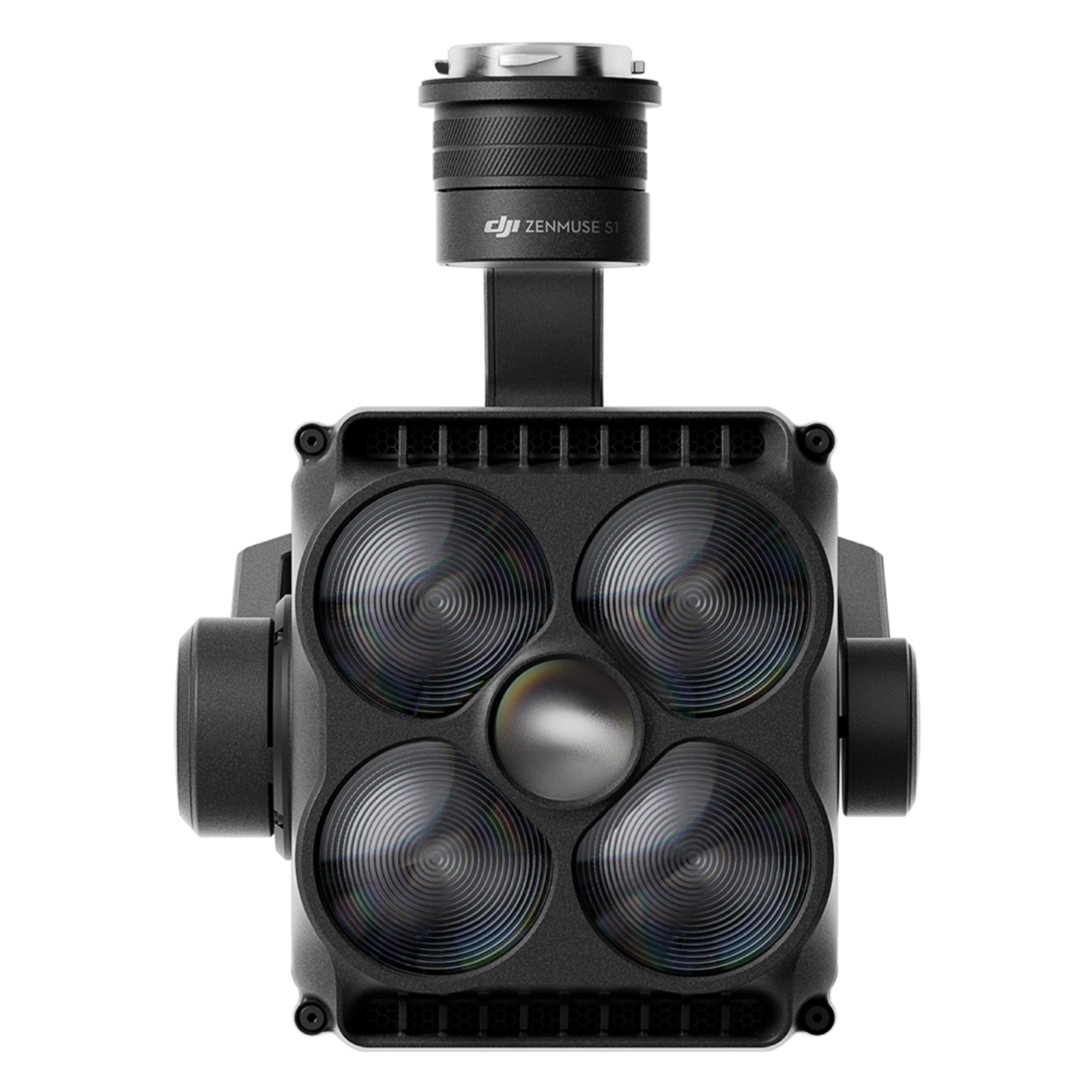

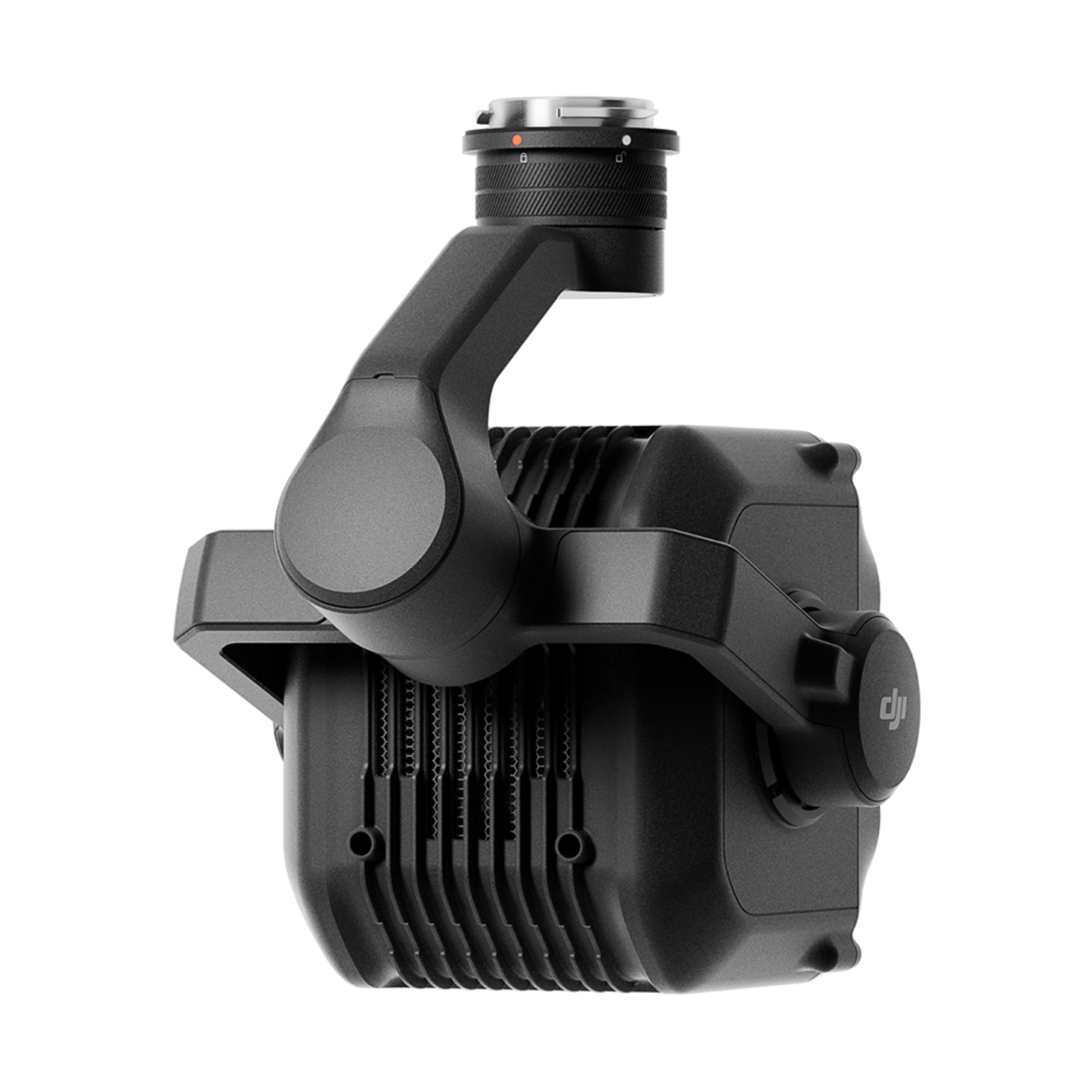

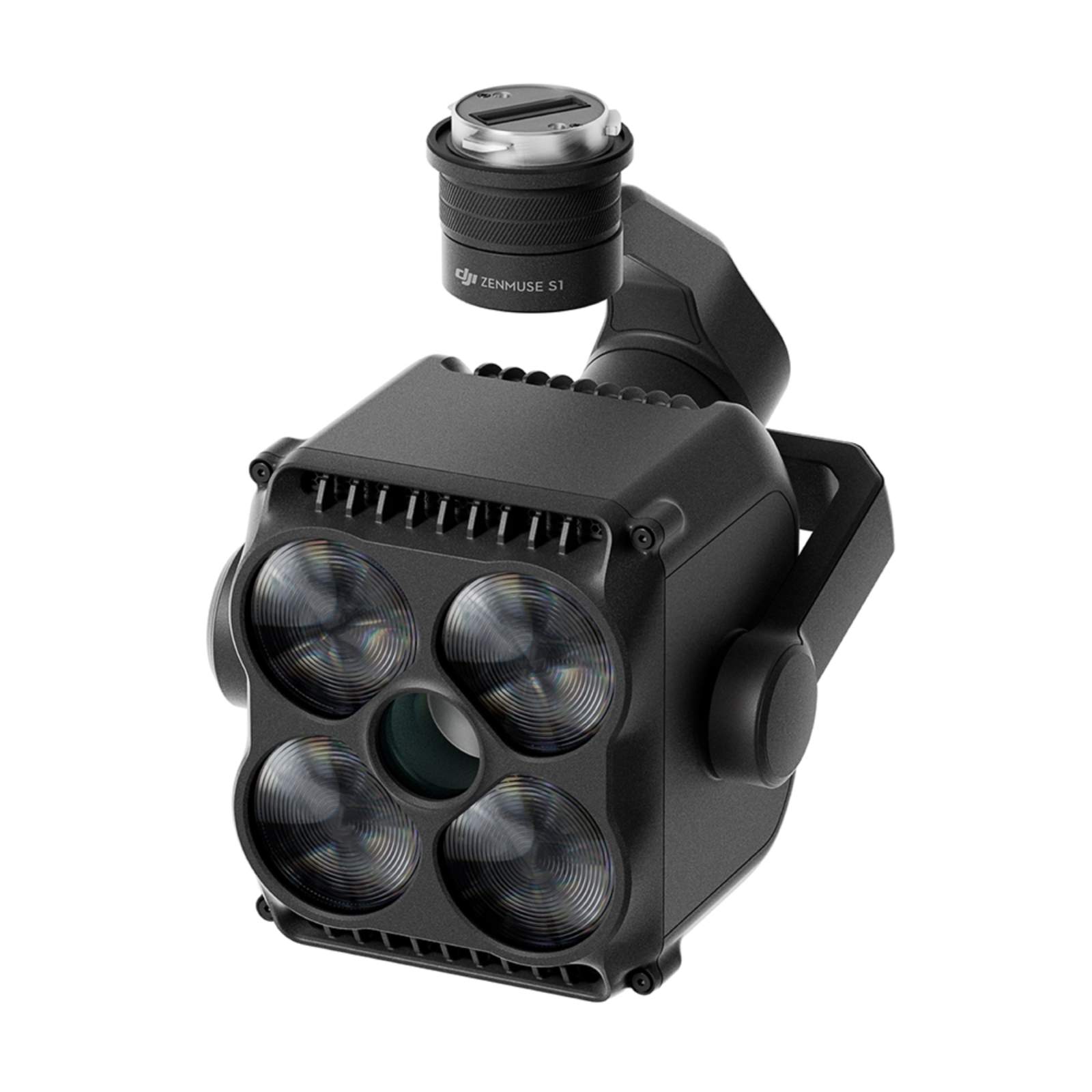

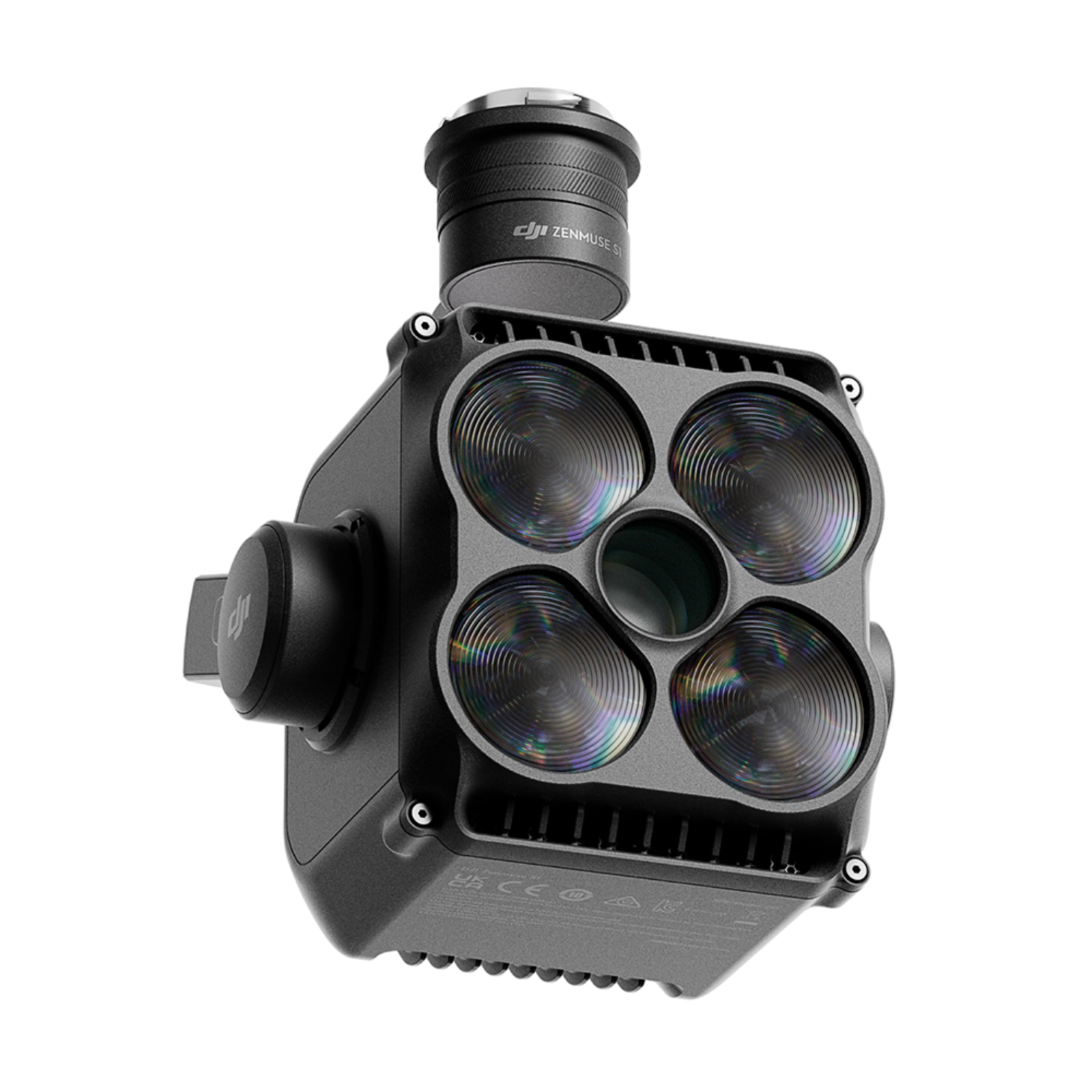

DJI ZENMUSE S1

1.490,61 EUR

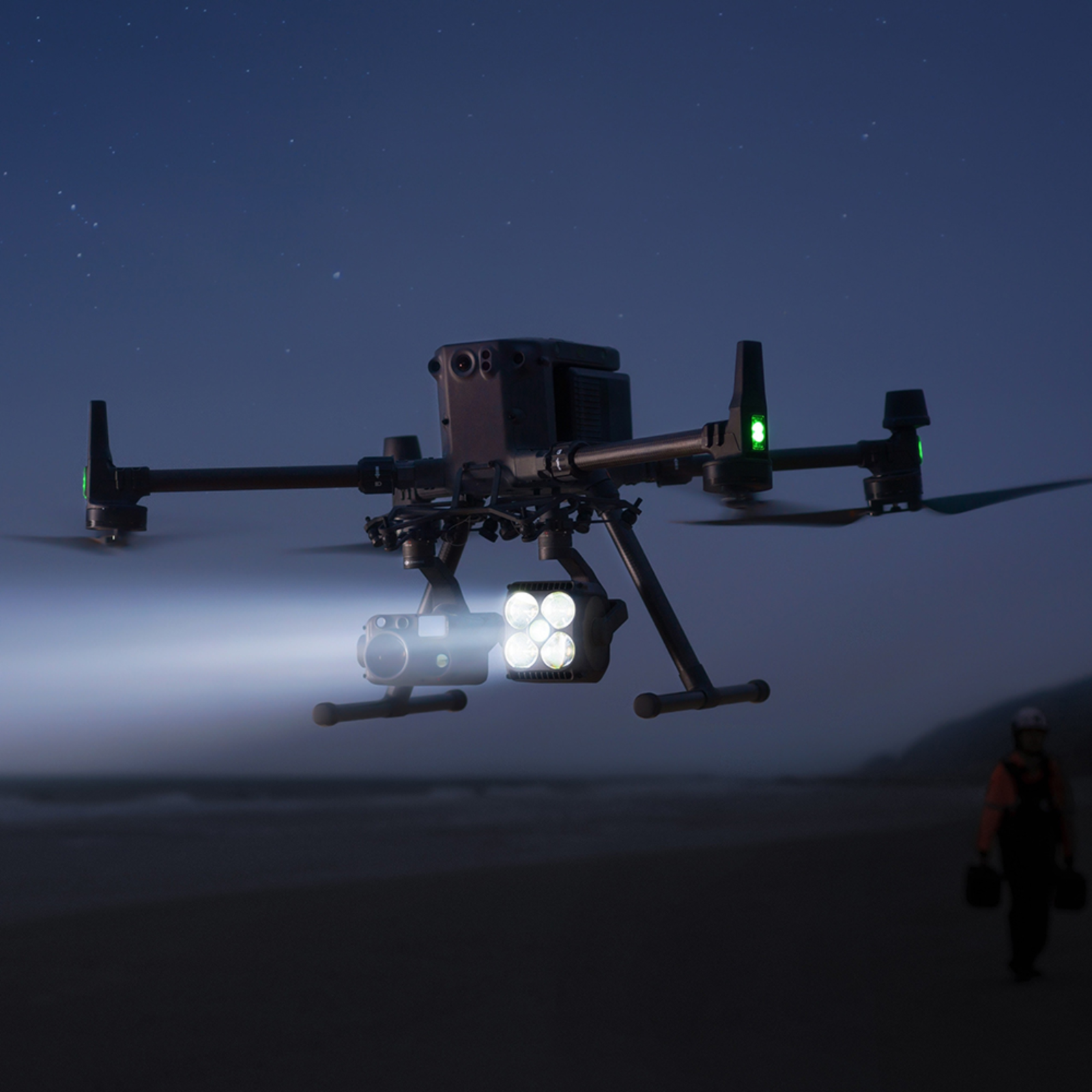

The Zenmuse S1 is DJI’s first floodlight designed for multi-payload drone platforms and is compatible with the DJI Matrice 400, Matrice 350 RTK, and Matrice 300 RTK. Featuring LEP technology, it offers high light intensity and an extended range of illumination, while also featuring multiple lighting modes for different operating scenarios. These features make it ideal for a wide range of nighttime applications, such as public safety, rescue and emergency response operations, inspections, and other missions in low-light conditions.

In stock

Stock limit

Add to cart

Product Code: C82 Do you need help? 0770531656

Add to wishlist

Description
Video (2)
Reviews (0)

Specifications
General
Weight	760±10 g
Dimensions	125×152×171 mm (L×W×H)
Rated Power	120 W (Matrice 400) 68 W (Matrice 300 RTK/Matrice 350 RTK)
Supported Aircraft	Matrice 400 Matrice 350 RTK Matrice 300 RTK (requires DJI RC Plus)
Eye Safety Class	IEC 62471: Risk Group 1
Housing Temperature	<50° C (122° F, plastic housing)
Ingress Protection Rating	IP54
Environment
Operating Temperature	-20° to 40° C (-4° to 104° F)
Storage Temperature	-20° to 60° C (-4° to 140° F)
Gimbal
Stabilization System	3-axis (tilt, roll, pan)
Angular Vibration Range	Hovering: ±0.01° Flight: ±0.02°
Mount	Detachable DJI SKYPORT
Mechanical Range	Tilt: -129° to +73° Roll: ±55.8° Pan: ±327°
Controllable Range	Tilt: -120° to +60° Pan: ±320°
Operating Mode	Follow / Free / Recentering
Lighting
Maximum Center Illuminance	40 lux at 100 m (Matrice 400, Both On mode) 35 lux at 100 m (Matrice 300 RTK/Matrice 350 RTK, Both On mode)
Short-Beam Center Illuminance	20 lux at 100 m (Matrice 400, Short-Beam mode) 13 lux at 100 m (Matrice 300 RTK/Matrice 350 RTK, Short-Beam mode)
Long-Beam Center Illuminance	30 lux at 100 m (Long-Beam mode)
Effective Illumination Angle	15±1° (10% relative illuminance, Short-Beam and Both On modes) 4±0.5° (10% relative illuminance, Long-Beam mode)
Typical Color Temperature	Typical value of 6500 K (Short-Beam mode) Typical value of 7500 K (Long-Beam mode)
Light Dimming Mode	Analog dimming
Effective Illumination Distance	500 m (Both modes activated)
Basic Features
Lighting Control	Light on/off, brightness adjustment
Strobe Mode	5 Hz strobe
Lighting Mode	Short-Beam mode, Long-Beam mode, Both On mode
Remote Controller Buttons	Can be configured to turn the light on/off, adjust brightness, or switch lighting modes
Gimbal Synchronization	Supports synchronized control with other gimbal-equipped payloads
Special Features
Eye Protection	Automatically limits brightness to 40% when not in flight
Payload Protection	LED, LEP temperature protection, overcurrent protection, and power supply protection to prevent damage.
Synchronized Control	When two Zenmuse S1 units are mounted on Matrice 400, both spotlights can be controlled simultaneously.
Smart Beam Alignment	When used with the Zenmuse H30 Series on Matrice 400, Zenmuse S1 uses gimbal synchronization to automatically align the spotlight beam with the camera view.

Product safety information

The DJI Zenmuse S1 is a spotlight with LEP technology, with Low Beam, High Beam and Both On lighting modes, an effective illumination distance of up to 500 m and a 5 Hz strobe. It weighs 760±10 g, has an IP54 protection rating and operates from −20 °C to 40 °C. It is classified as Risk Group 1 under IEC 62471. It is compatible with the DJI Matrice 400, Matrice 350 RTK and Matrice 300 RTK (the latter requires the DJI RC Plus). It is intended for professional use only, by trained persons. It is not a toy.

Warnings:

Read the official DJI documentation (user manual and product information) before use.
Do not look directly into the light source, even from a short distance, and do not point it at the eyes of people or animals. Do not view the light through optical instruments (binoculars, magnifiers).
The intense light can cause temporary blindness. Do not point it at pilots, drivers or other aircraft.
The strobe mode (5 Hz) can cause discomfort or seizures in people sensitive to flashing light (photosensitivity, epilepsy). Use it with caution.
The surface of the spotlight heats up during operation. Do not touch or cover it during operation or immediately after.
Do not run the light at high power on the ground longer than necessary. Brightness drops automatically to 40% when the aircraft is not in flight.
Use the equipment only with compatible aircraft and original DJI accessories. Before every flight, check that it is fixed correctly and shows no damage.
The IP54 protection rating is not permanent and may decrease over time. Do not immerse the equipment in water and do not use it in heavy rain.
Do not open, disassemble or modify the equipment. Do not use it if it is damaged.
Comply with aviation law and lighting regulations in your country.
Keep out of reach of children.
