SHARE 202S PRO V2

Name: SHARE 202S PRO V2
Brand: Share UAV
SKU: C110
Price: 45067.63 EUR
Availability: InStock

45.067,63 EUR

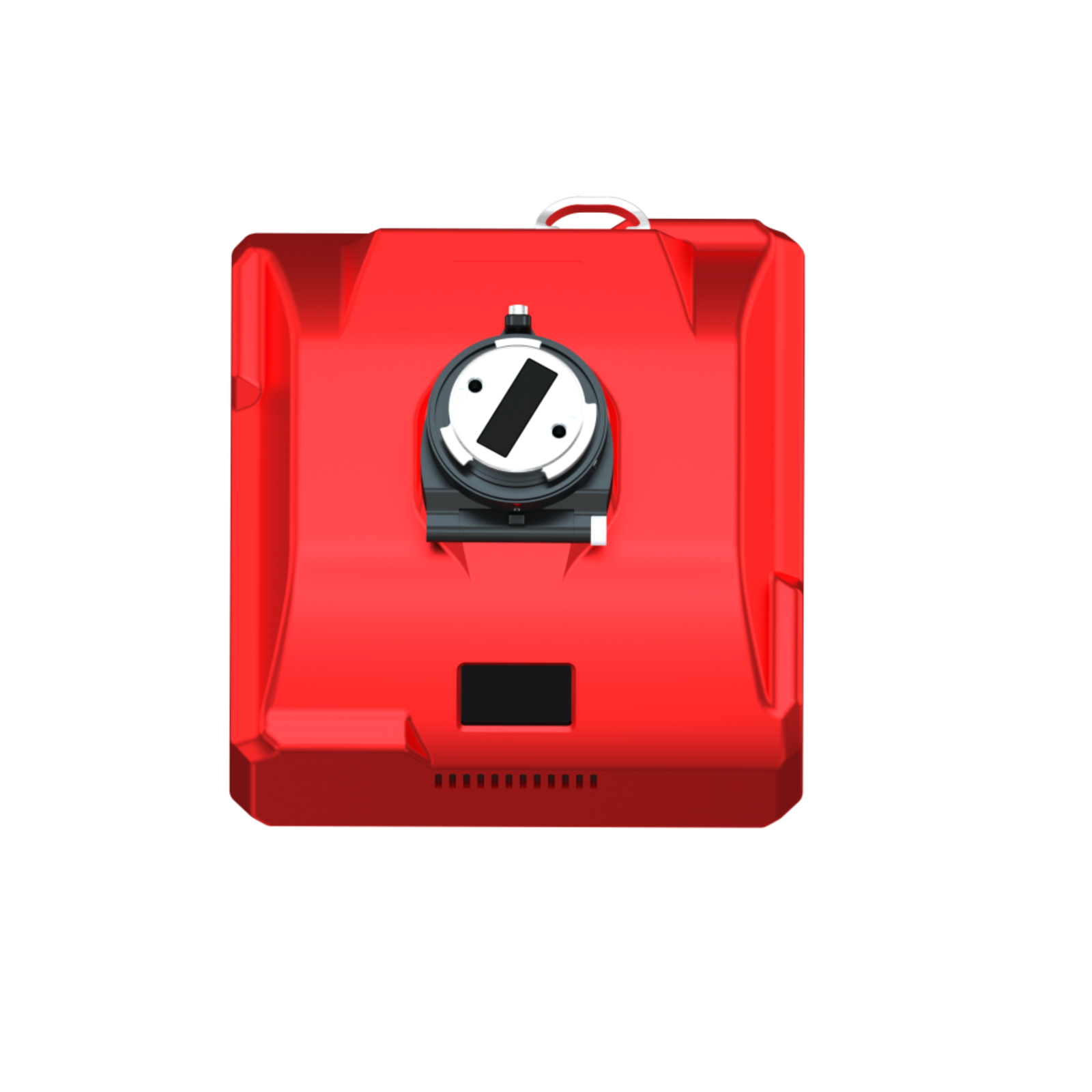

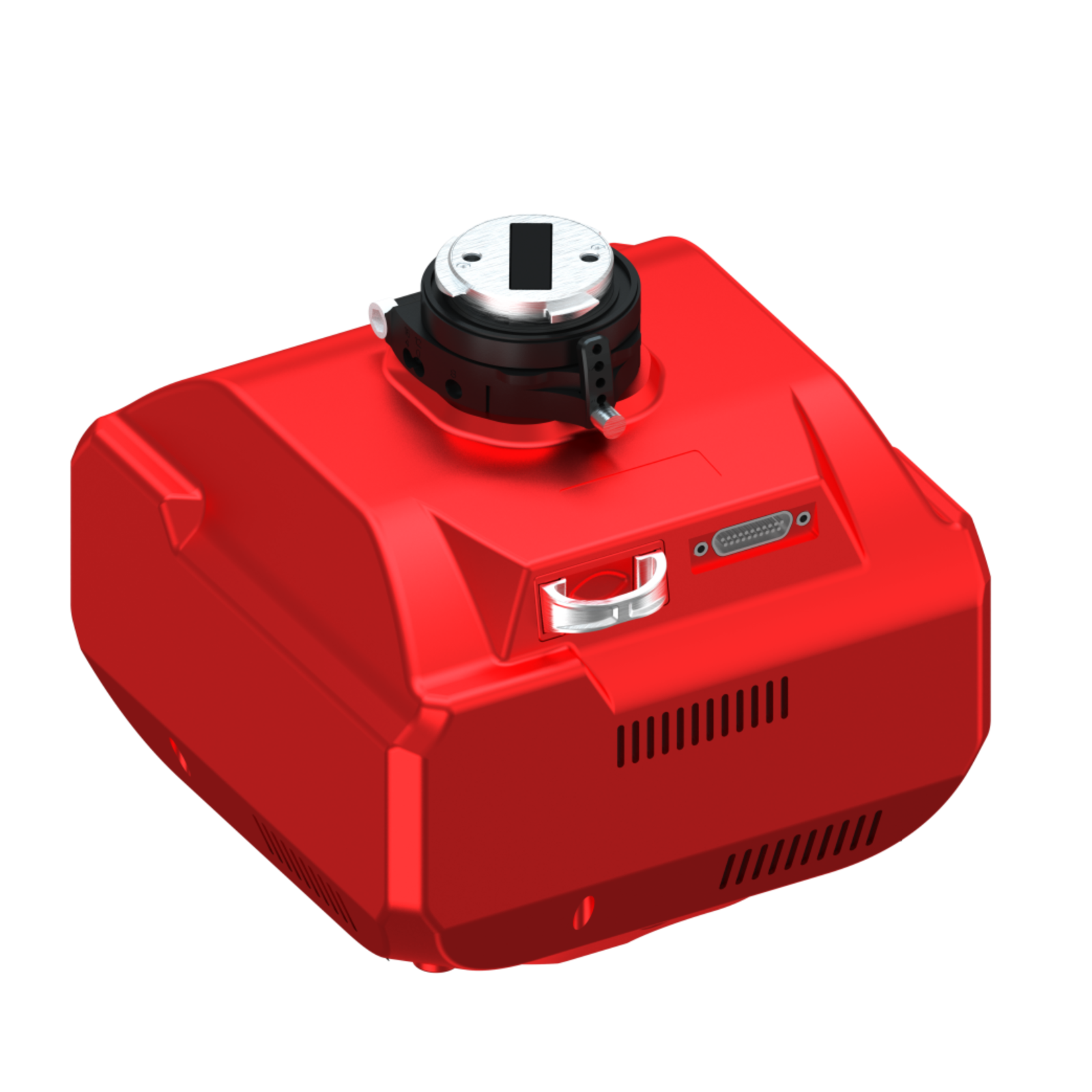

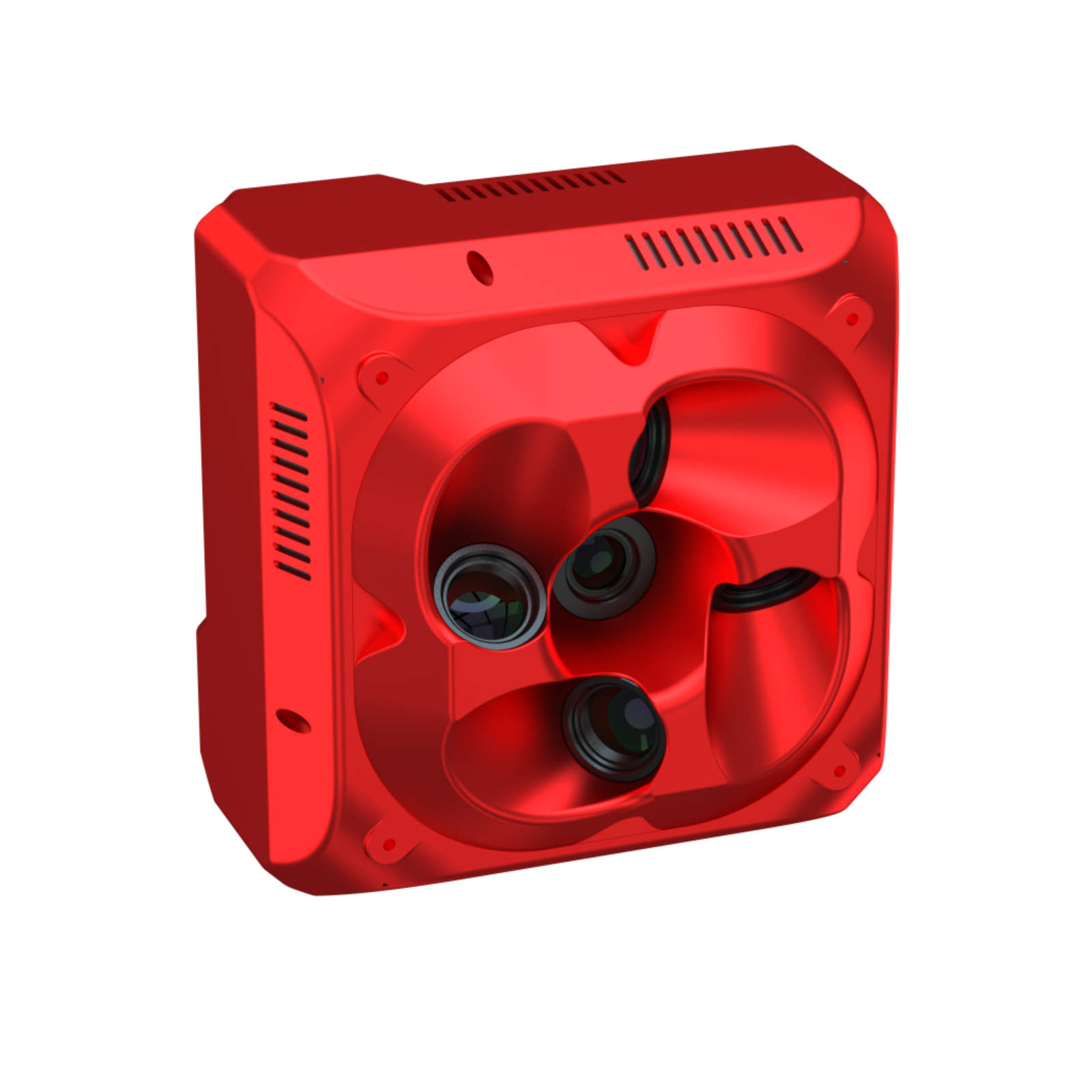

The SHARE 202S PRO V2 is a professional oblique aerial mapping camera equipped with 5 Full-Frame lenses and a total resolution of over 225 MP. It is designed for large-scale urban mapping, aerial surveying, high-precision 3D modeling, and Digital Twin projects.

The camera is designed for efficient aerial data collection and high-precision 3D reconstruction.

In stock

Stock limit

Add to cart

Product Code: C110 Do you need help? 0770531656

Add to wishlist

Description
Video (1)
Reviews (0)

Specifications
Key Features	5 Full-Frame lenses
Total Resolution	Over 225 MP
Resolution per Lens	45 MP
Full-Frame Sensor	36 × 24 mm
Pixel Size	4.4 μm
Focal Length	56 mm oblique / 40 mm nadir
Ground Resolution	3 cm from an altitude of up to 272 m
TimeSync 2.0	Microsecond-level synchronization between camera, UAV, RTK and flight control system
POS Recording	POS data can be written directly into photos
GCP-Free	Enables model reconstruction without ground control points, according to the provided information
S-GS Global Shutter	Reduces rolling shutter effect
Shutter Life	Up to 500,000 actuations
Dynamic Image Transmission	1080P
Data Copy Speed	Up to 600 MB/s
Storage	1280 GB
Angle Compensator	Keeps the camera vertical relative to the ground at speeds of up to 15 m/s
Adjustable Parameters	ISO, white balance, color mode and shutter speed
Compatibility
DJI Matrice 350 RTK	Yes
Multirotor Drones	Yes
Fixed-Wing Drones	Yes
DJI SkyPort	Yes
Universal Aviation Interface	Yes
Applications
Urban Mapping	Yes
Topographic Mapping	Yes
Oblique Photogrammetry	Yes
3D Modeling	Yes
Digital Twin	Yes
Large-Scale Mapping	Yes
High-Precision Aerial Data Collection	Yes
Technical Parameters
Dimensions	130 × 130 × 129 mm
Weight	886 g
Supported UAVs	DJI Matrice 350 RTK and various multirotor and fixed-wing UAVs
Interface	DJI SkyPort + universal interface
Effective Pixels	25 MP according to the provided parameter; 225 MP total
Sensor	36 × 24 mm Full-Frame
Pixel Size	4.4 μm
Focal Length	56 mm oblique / 40 mm nadir
Storage Capacity	1280 GB
Data Transfer Speed	Up to 600 MB/s
Package Contents
In the Box	1 × SHARE 202S PRO – 225 MP Full-Frame Oblique Aerial Camera with 5 Lenses

Product safety information

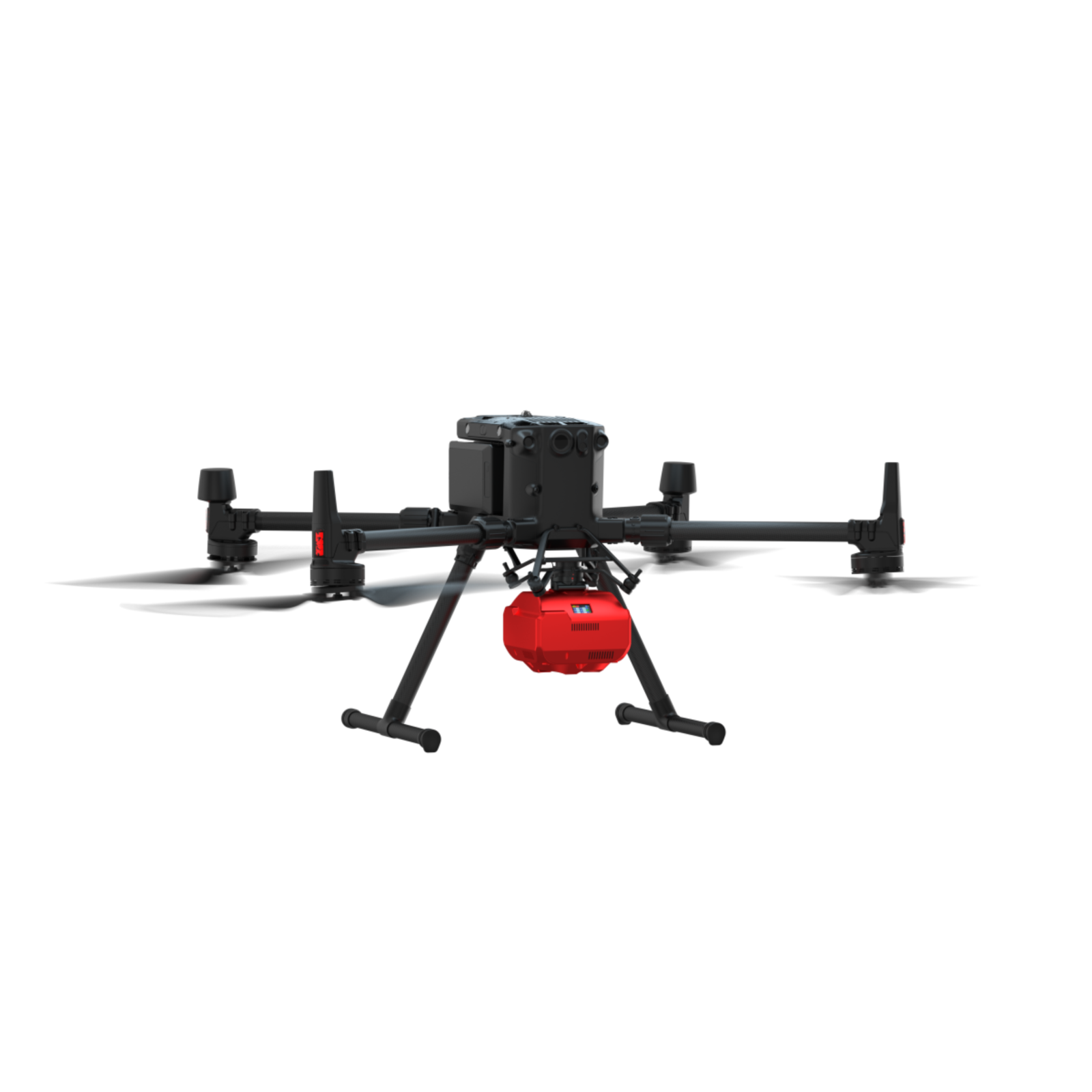

The SHARE 202S PRO V2 is a 5-lens oblique aerial camera with full-frame sensors, with a 56 mm focal length for the oblique images and 40 mm for the down-view, a global shutter and 1280 GB of storage. It weighs approx. 886 g and mounts on DJI Matrice 350 RTK drones through the DJI SkyPort interface, as well as on fixed-wing drones. It is intended for professional use only, by trained persons. It is not a toy.

Warnings:

Read the manufacturer's documentation before use.
Use the equipment only with a compatible drone, with original cables and accessories.
Before every flight, check the equipment for damage and make sure it is mounted correctly on the drone. Observe the drone's payload capacity.
Do not expose the equipment to water, rain or excessive moisture and do not immerse it.
The equipment may heat up during operation. Do not cover it and do not touch it immediately after use.
Do not touch the lenses and sensors with your fingers. Clean the lenses only with materials intended for optical equipment.
Do not open, disassemble or modify the equipment. Do not use it if it is damaged.
The camera can record images and videos of people. Comply with privacy and personal data protection law (including GDPR) and use it only during authorized operations.
Comply with aviation law in your country.
Keep out of reach of children.

Manufacturer: SHARE (SHAREUAV), Shenzhen, China. Read the documentation supplied by the manufacturer with the product.
