DJI D-RTK 3 MULTIFUNCTIONAL STATION RENTAL

Name: DJI D-RTK 3 MULTIFUNCTIONAL STATION RENTAL
Brand: DJI
SKU: C391
Price: 17.92 EUR
Availability: OutOfStock

17,92 EUR

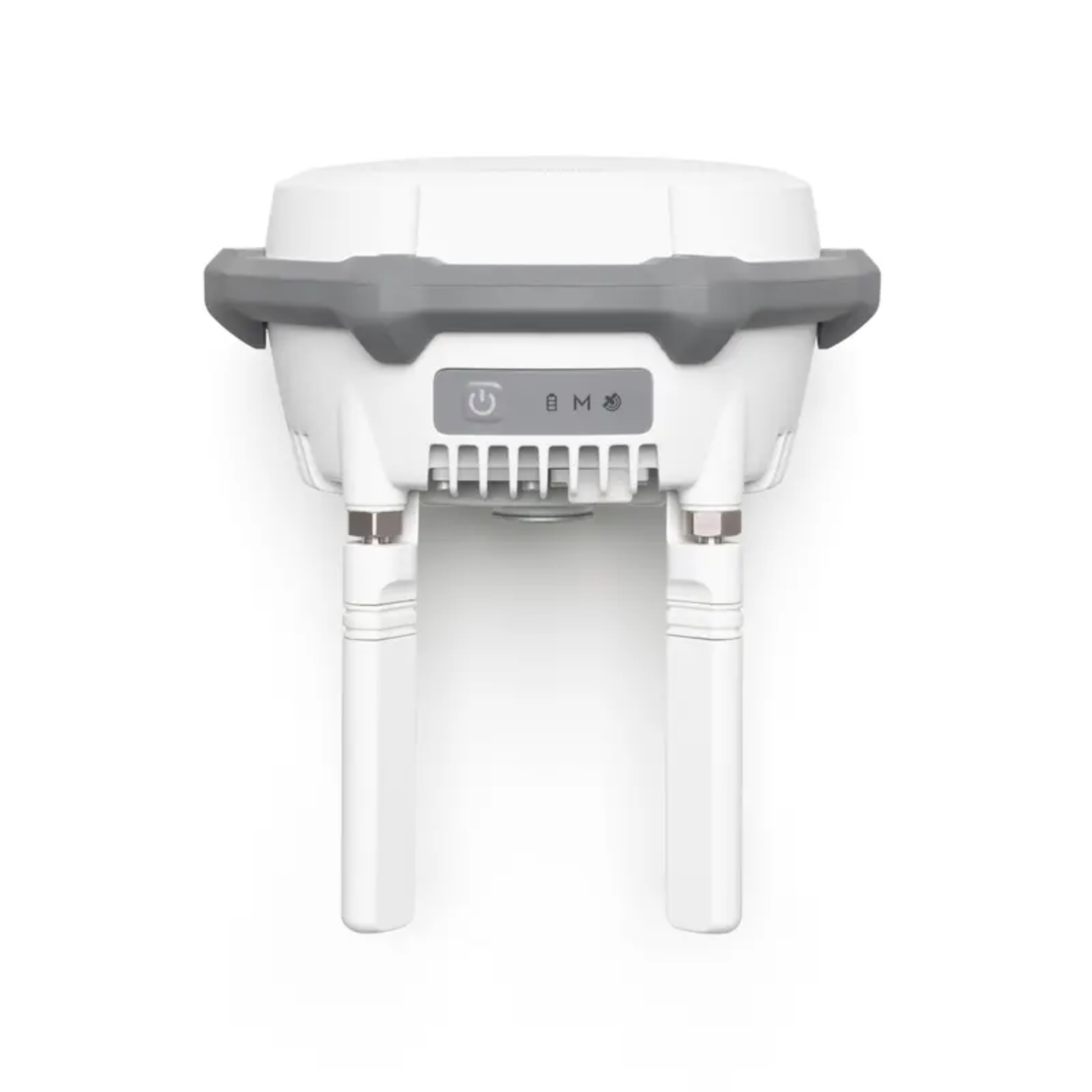

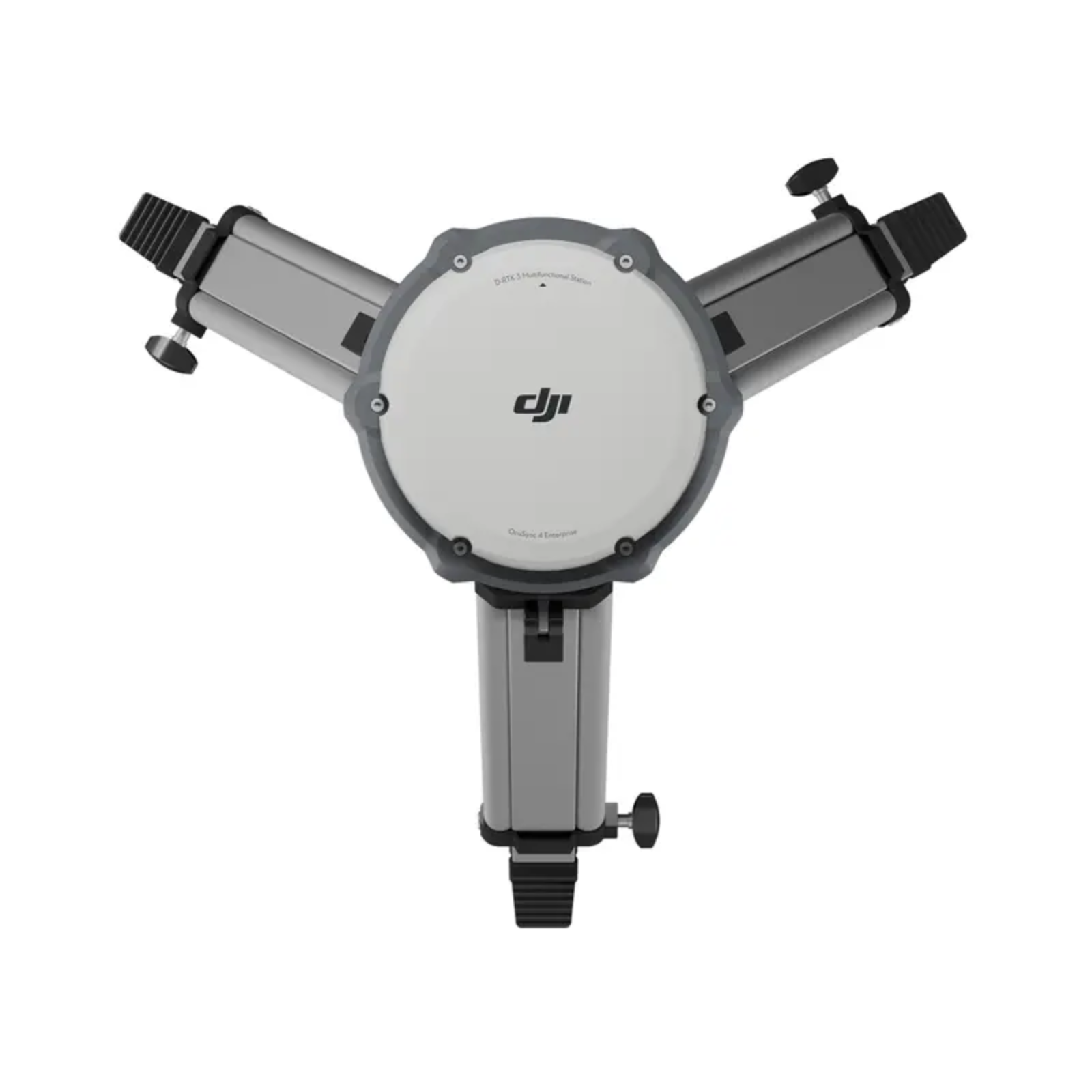

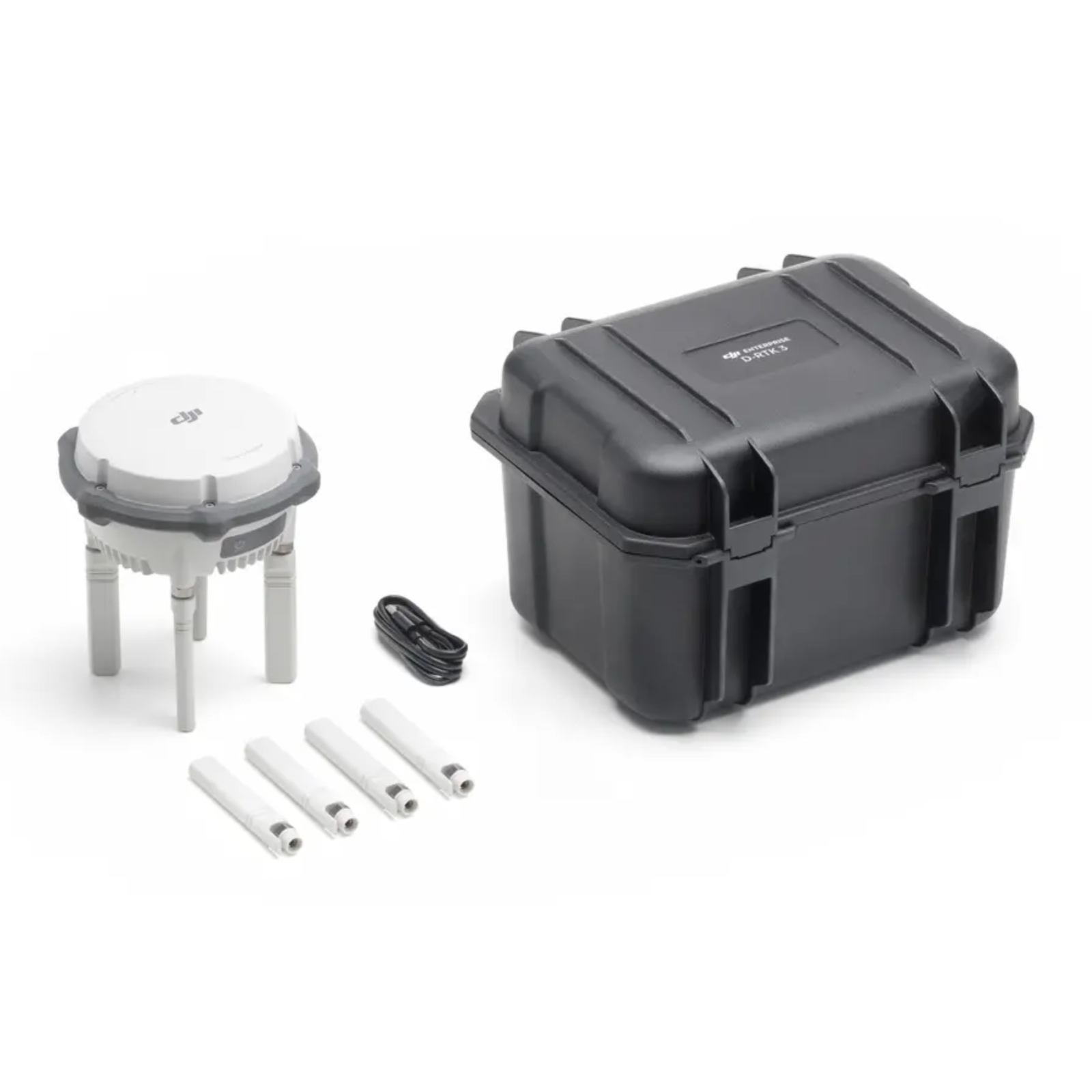

The new D-RTK 3 multifunctional station is equipped with high-performance antennas and advanced reception modules, capable of tracking and processing signals from major global satellite navigation systems. It supports multiple data transmission methods, providing high versatility in various operating scenarios.

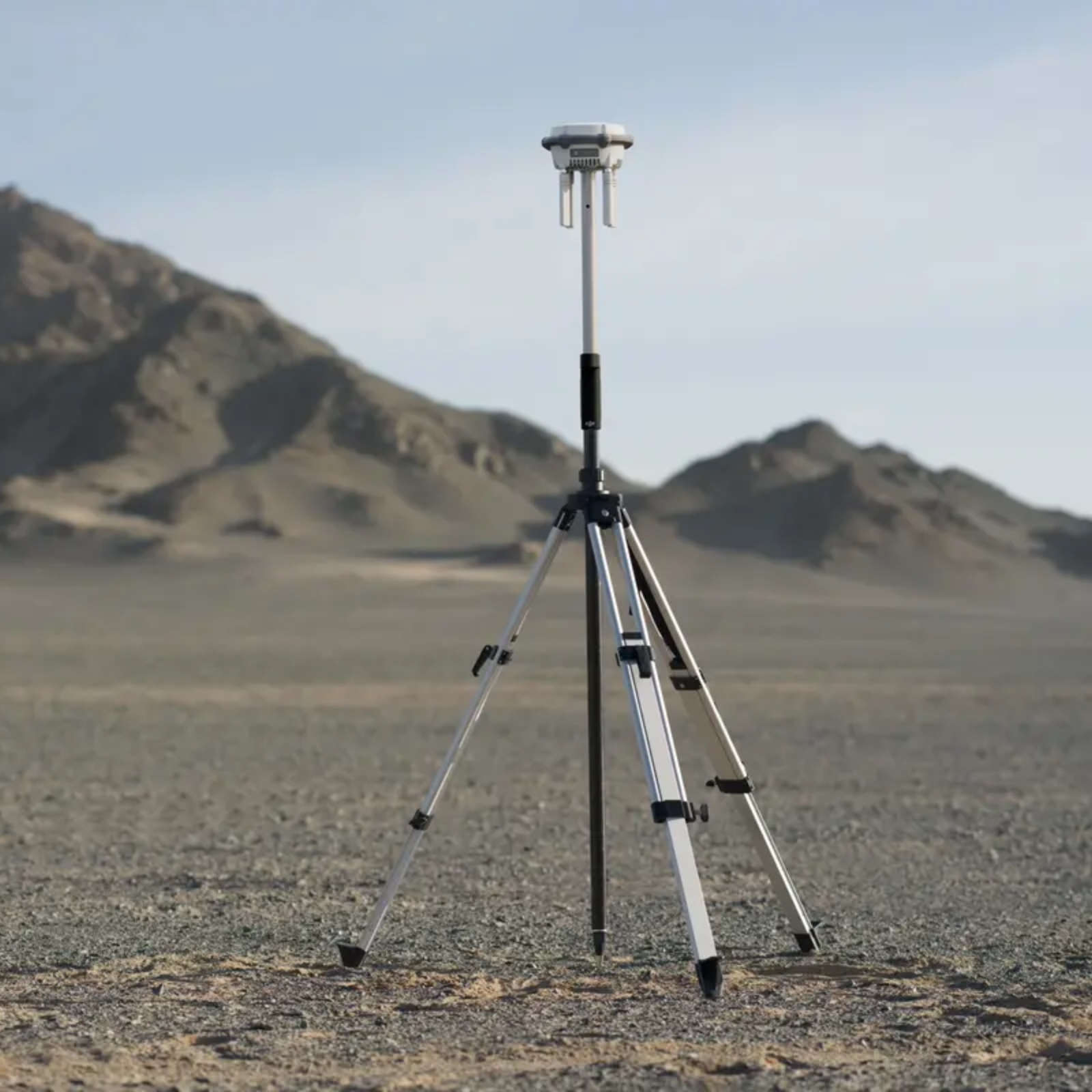

The D-RTK 3 can function as a base station, simultaneously providing centimeter-accurate positioning data to multiple drones, or it can extend the operating range of drones and DJI Dock 3 when used in relay station mode. Also, the new rover mode, together with the DJI Enterprise and DJI Terra applications, provides a complete solution for high-precision aerial surveying work, contributing to safe, efficient and accurate operations.

Ediție:

Unavailable at the moment

Product Code: C391 Do you need help? 0770531656

Add to wishlist

Description
Reviews (0)

Specifications
GNSS Receiver
GNSS Frequency	GPS: L1C/A, L2C, L5 BDS: B1I, B2I, B3I, B1C, B2a, B2b GALILEO: E1, E5a, E5b, E6 GLONASS: L1, L2 QZSS: L1C/A, L2C, L5 L-Band
System Accuracy	Base Station Mode: Single Point Positioning Accuracy (uncalibrated): Horizontal: 1.5 m (RMS), Vertical: 3.0 m (RMS) Satellite-Based Differential Positioning Accuracy: Horizontal: 30 cm (RMS), Vertical: 40 cm (RMS) Rover Station Mode: RTK Accuracy (Fixed Solution): Horizontal: 0.8 cm (RMS) + 1 ppm, Vertical: 1.5 cm (RMS) + 1 ppm
Satellite-Based Precise Point Positioning	Supported Frequencies: BDS B2b, GALILEO E6, L-BAND Convergence Time: 20 minutes Accuracy: Horizontal: 30 cm (RMS), Vertical: 40 cm (RMS)
Differential Data Transmission Format	Rover Station Mode: Supports RTCM v3.0, v3.1, v3.2, MSM4, MSM5, MSM6, MSM7 Base Station records raw data in RTCM 3.2 (DAT) format
Initialization Reliability	>99.9%
Video Transmission
Video Transmission System	O4 Enterprise
Operating Frequency	Relay Station Mode: 2.4 GHz / 5.2 GHz / 5.8 GHz Base Station Mode: 2.4 GHz / 5.8 GHz Rover Station Mode: BLE 2.4 GHz
Transmitter Power (EIRP)	2.4000 GHz – 2.4835 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.150 GHz – 5.250 GHz: <23 dBm (CE/FCC) 5.725 GHz – 5.850 GHz: <33 dBm
Bluetooth	Protocol: Bluetooth 5.1 Frequency: 2.400 GHz – 2.4835 GHz EIRP Power: <10 dBm
Maximum Transmission Distance (unobstructed, interference-free)	Base Station Mode: FCC: 15 km SRRC: 12 km CE/JP: 8 km Rover Station Mode: Between D-RTK 3 and mobile devices: 30 m
Maximum Transmission Distance in Relay Station Mode	FCC: Aircraft – Relay Station: 25 km, Relay Station – Remote Controller: 1 km SRRC: Aircraft – Relay Station: 12 km, Relay Station – Remote Controller: 1 km CE: Aircraft – Relay Station: 10 km, Relay Station – Remote Controller: 300 m
Maximum Transmission Distance (obstructed, with interference)	Low interference, obstructed by buildings: 0–0.5 km Low interference, obstructed by trees: 0.5–3 km
Antenna	OcuSync 4 directional antennas × 4, 2T4R
Fixed Relay Station Deployment Version	Compatible with DJI Cellular Dongle 2
