DJI O4 RELAY FOR DJI AGRAS RENTAL

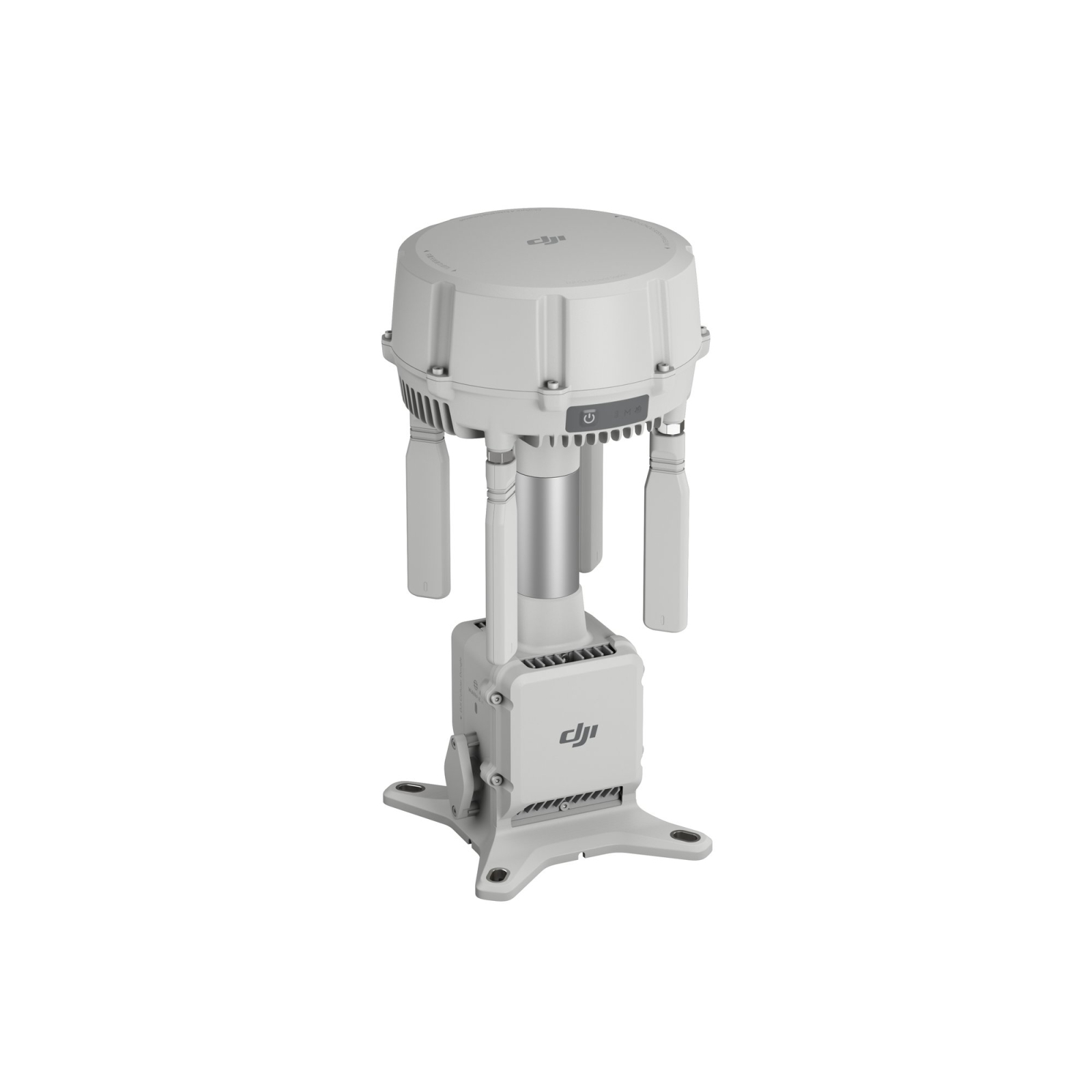

![DJI O4 RELAY FOR DJI AGRAS RENTAL [1]](https://gomagcdn.ro/domains3/zerovec.ro/files/product/original/inchiriere-releu-dji-o4-pentru-dji-agras-729897.jpg "DJI O4 RELAY FOR DJI AGRAS RENTAL [1]")

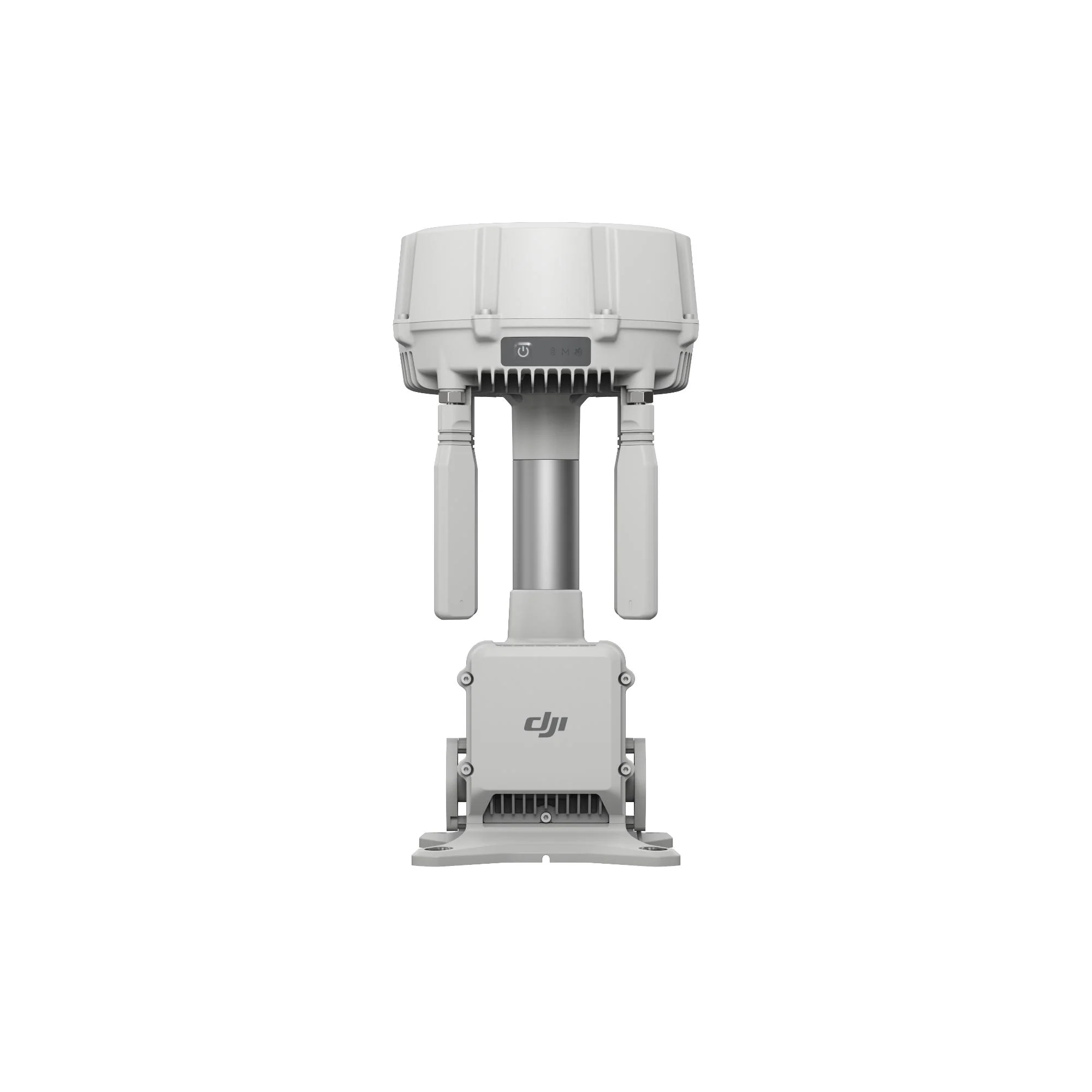

![DJI O4 RELAY FOR DJI AGRAS RENTAL [2]](https://gomagcdn.ro/domains3/zerovec.ro/files/product/original/inchiriere-releu-dji-o4-pentru-dji-agras-373653.webp "DJI O4 RELAY FOR DJI AGRAS RENTAL [2]")

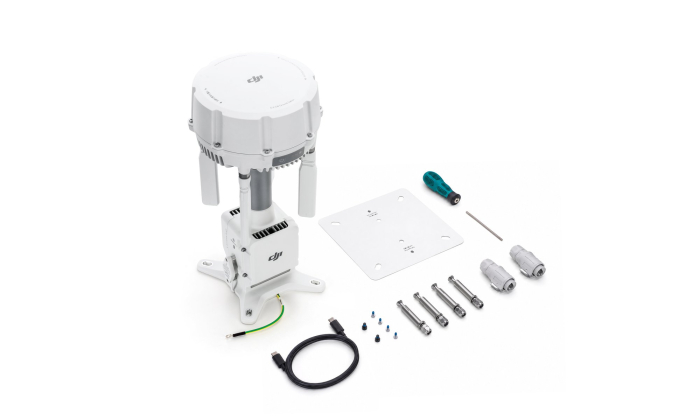

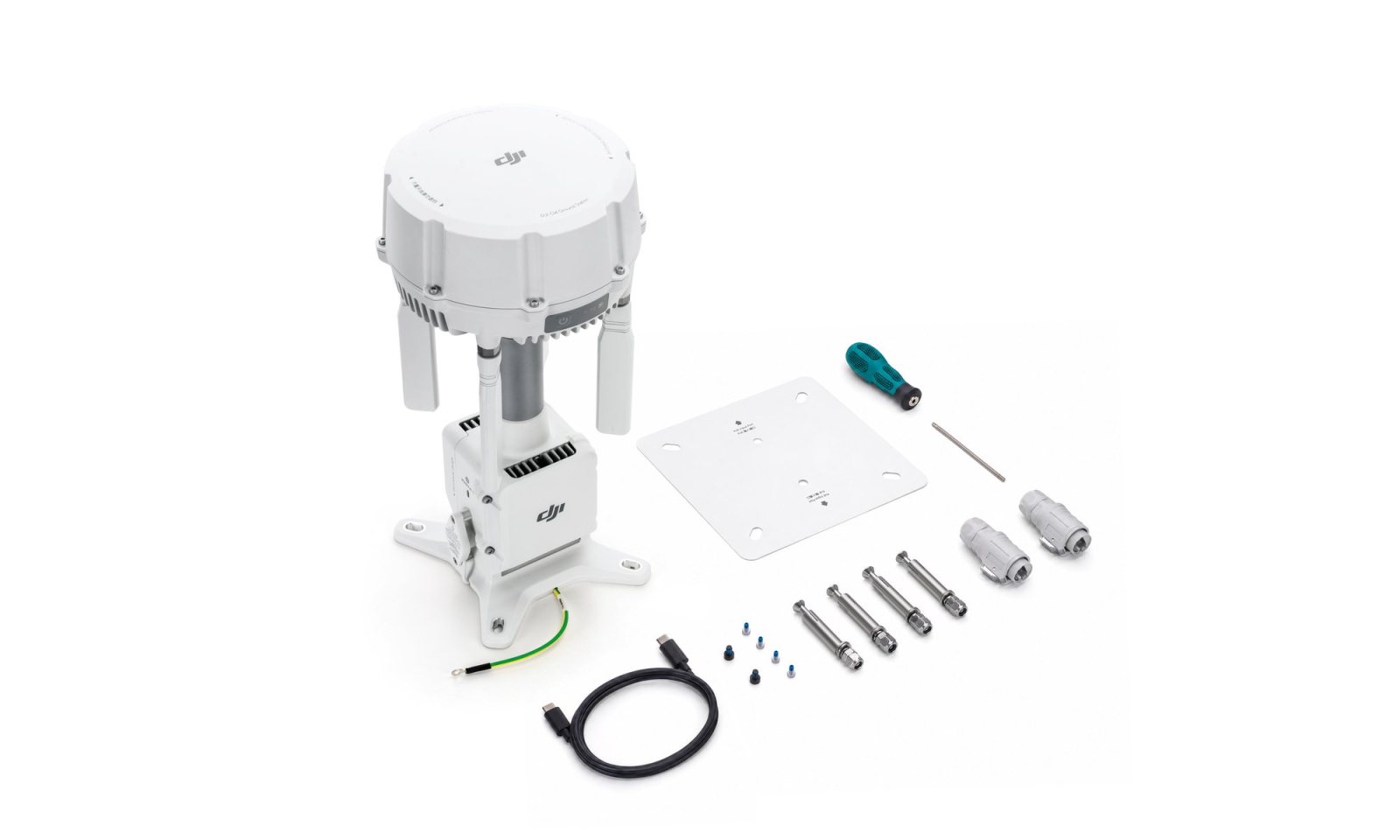

![DJI O4 RELAY FOR DJI AGRAS RENTAL [3]](https://gomagcdn.ro/domains3/zerovec.ro/files/product/original/inchiriere-releu-dji-o4-pentru-dji-agras-664121.jpg "DJI O4 RELAY FOR DJI AGRAS RENTAL [3]")
The DJI O4 Ground Station is a wide-area transmission ground station with 12 antennas and automatic multi-band selection. It extends the communication range of DJI Enterprise drones in Gateway mode (connected to FlightHub 2) or Relay mode (offline), for the DJI Dock 3, Matrice 400, and Matrice 4 series. IP67-rated and maintenance-free, with integrated GNSS RTK and support for up to 4 IP cameras.
Ediție:
Product Code:
C330
Do you need help?
0770531656
- Description
- Reviews (0)
| Specifications | |
|---|---|
| GNSS Receiver | |
| GNSS Frequency | GPS: L1C/A, L2C, L5 BDS: B1I, B2I, B3I, B1C, B2a, B2b Galileo: E1, E5a, E5b, E6 GLONASS: L1, L2 QZSS: L1C/A, L2C, L5 L-Band (5 systems, 19 frequencies) |
| System Accuracy | Single point (uncalibrated): 1.5 m horizontal / 3.0 m vertical (RMS) Satellite-based differential (20 min convergence): 30 cm horizontal / 40 cm vertical (RMS) Network RTK calibration: 1.0 cm + 1 ppm horizontal / 3.0 cm + 1 ppm vertical (RMS) |
| Video Transmission | |
| Transmission System | DJI O4 Enterprise |
| Antennas | 4 external OcuSync 4 Pro directional antennas + 8 internal OcuSync 4 Pro directional antennas (12 total) 2.4G / 5.2G / 5.8G: 2T4R; Sub2G: 2T2R Standard reverse-polarity SMA connector |
| Operating Frequency | 902 – 928 MHz, 1.430 – 1.444 GHz, 2.400 – 2.4835 GHz, 5.150 – 5.250 GHz, 5.725 – 5.850 GHz (varies by country and region) |
| Max Transmission Distance (unobstructed, no interference) | IC: 40 km with Matrice 400 / 30 km with other aircraft SRRC and CE: 25 km with Matrice 400 / 18 km with other aircraft Relay mode, remote controller/Dock 3 to station: IC and SRRC recommended within 1 km, max 3 km; CE recommended within 300 m, max 1 km |
| Distance (unobstructed, with interference) | Strong interference: approx. 1.8 – 6 km Medium interference: approx. 6 – 18 km Low interference: approx. 18 – 40 km Reference data, tested with Matrice 400 (IC). |
| Distance (obstructed, low interference) | Buildings: approx. 0 – 0.5 km Trees: approx. 0.5 – 3 km |
| Network Access | Adaptive Ethernet (min. 100 Mbps, max. 100 ms latency) 4G: requires DJI Cellular Dongle 2 (sold separately) |
| Electrical Properties | |
| Power Interface | Ethernet PoE port (WAN: PoE input / LAN: PoE input) Cat 6 or higher outdoor-rated cable, max 100 m, 5.5 – 6.5 mm diameter |
| Power Consumption | Gateway mode: max 65 W (with heating), typical 17.1 W, low-power mode 7 W Relay mode: max 65 W (with heating), typical 31.7 W (Dock 3 / Matrice 4 series) or 37.9 W (Matrice 400) |
| Supported Power Sources | DJI Dock 3 PoE output port Third-party PoE: IEEE 802.3bt Type 4 (max 99.9 W), Type 3 (max 60 W), 802.3at Type 2 (max 30 W, Gateway mode only) |
| Backup Battery | LiPo 3250 mAh, 23.4 Wh Runtime on power loss: approx. 45 min (Gateway) / 30 min (Relay) PD 9 V / 12 V charging (DJI 65 W charger recommended), approx. 2.5 hours |
| Physical Characteristics | |
| Protection Rating | IP67 |
| Operating Temperature | PoE++ Type 4: -40 °C to 55 °C PoE++ Type 3: -30 °C to 55 °C PoE+ Type 2: -20 °C to 55 °C |
| Ethernet Surge Protection | Up to 10 kA (WAN/LAN), compliant with EN/IEC 61643-21 Category C |
| Compatibility | |
| Gateway Mode | DJI Dock 3 |
| Relay Mode | DJI Dock 3, Matrice 400, Matrice 4E, Matrice 4T, Matrice 4D / 4TD (with DJI RC Plus 2 Enterprise) |
