DJI AGRAS T70P/T100 INTELLIGENT POWER SUPPLY (C12000) RENTAL
![DJI AGRAS T70P/T100 INTELLIGENT POWER SUPPLY (C12000) RENTAL [1]](https://gomagcdn.ro/domains3/zerovec.ro/files/product/original/inchiriere-sursa-de-alimentare-inteligenta-dji-agras-t70p-t100-c12000-909672.png "DJI AGRAS T70P/T100 INTELLIGENT POWER SUPPLY (C12000) RENTAL [1]")
![DJI AGRAS T70P/T100 INTELLIGENT POWER SUPPLY (C12000) RENTAL [2]](https://gomagcdn.ro/domains3/zerovec.ro/files/product/original/inchiriere-sursa-de-alimentare-inteligenta-dji-agras-t70p-t100-c12000-567634.png "DJI AGRAS T70P/T100 INTELLIGENT POWER SUPPLY (C12000) RENTAL [2]")

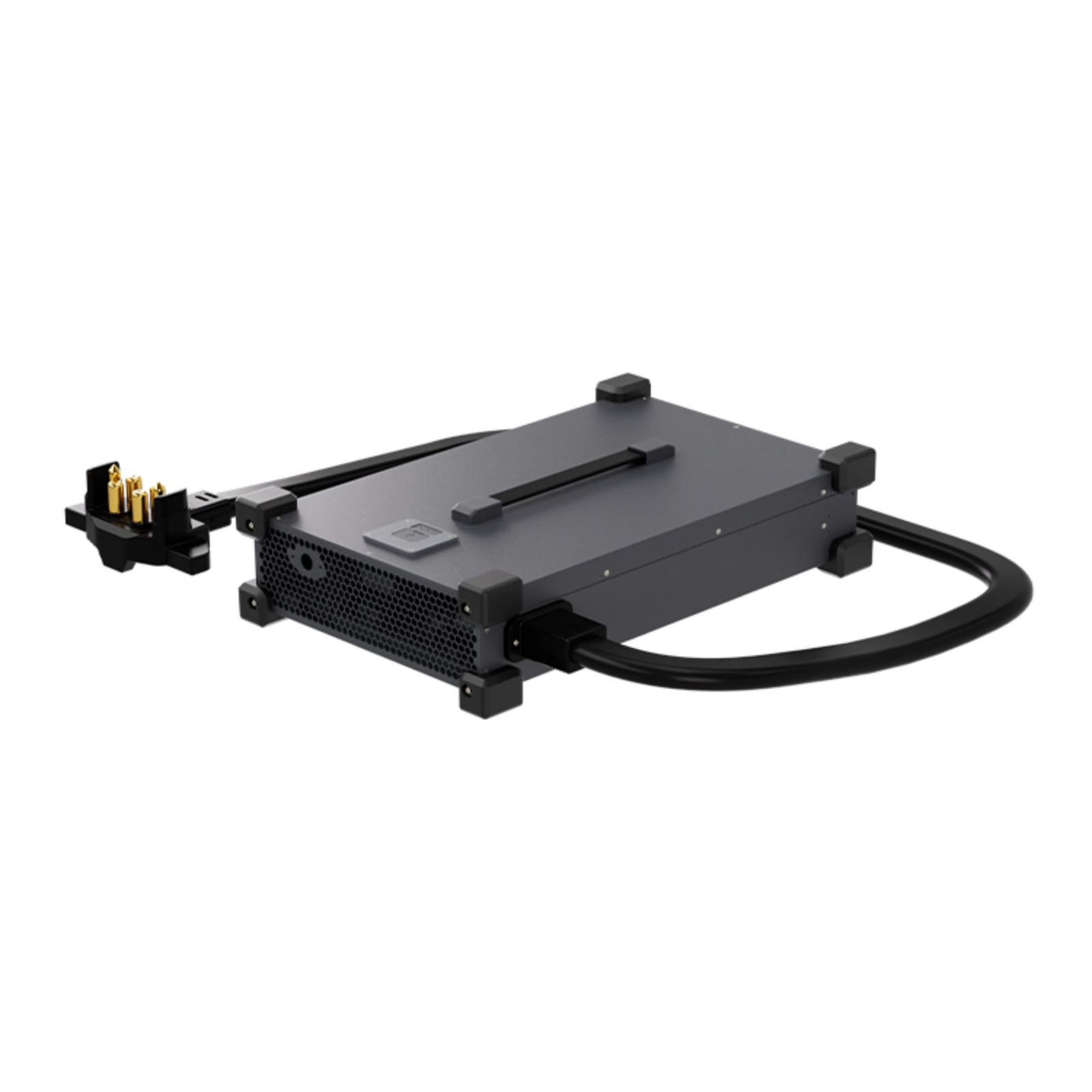

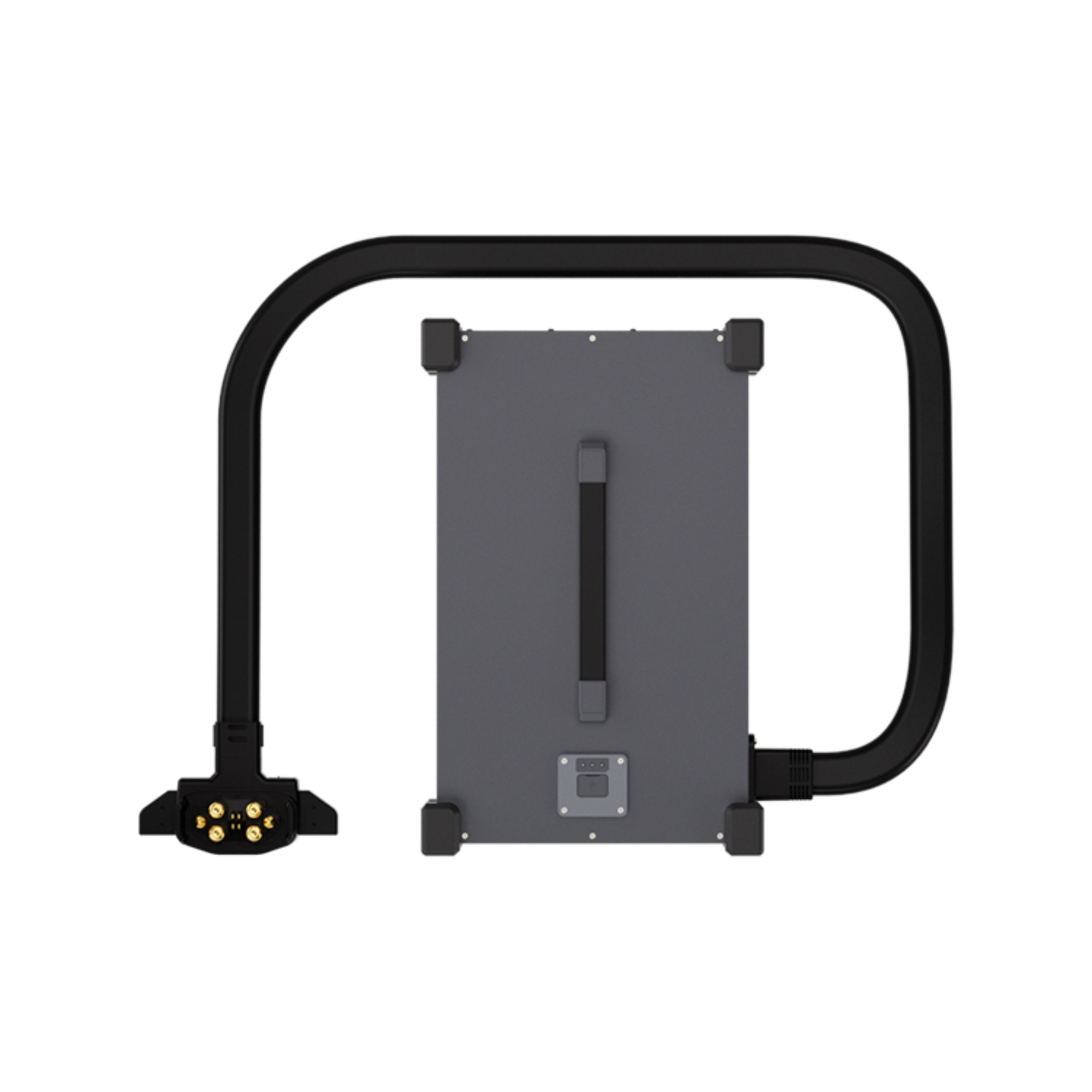

The DJI C12000 Intelligent Charger is a high-power charging solution designed for DJI Agras T100 and T70 agricultural drones. It supports both three-phase and single-phase power input, providing fast and efficient charging for compatible batteries.
With up to 12,000 W of power when using three-phase input and up to 3,000 W with single-phase input, the C12000 is designed to reduce battery charging time and maintain operational efficiency during agricultural operations. The system includes protection against overvoltage, undervoltage, overheating, short circuits, and fan blockage.
With up to 12,000 W of power when using three-phase input and up to 3,000 W with single-phase input, the C12000 is designed to reduce battery charging time and maintain operational efficiency during agricultural operations. The system includes protection against overvoltage, undervoltage, overheating, short circuits, and fan blockage.
Ediție:
Product Code:
C322
Do you need help?
0770531656
- Description
- Reviews (0)
| Specifications | |
|---|---|
| Charger Model | CSX901-12000 |
| Dimensions | 456 × 291 × 107 mm |
| Weight | 13.13 kg |
| Input Voltage | Three-phase AC: 175 – 520 V Single-phase AC: 200 – 264 V |
| Output Voltage | 62 V |
| Rated Output Current | 194 A |
| Rated Power | 12,000 W (three-phase 380 V input) / 3,000 W (single-phase 220 V input) |
| Recharge Time | 8 – 9 minutes (DB2160 battery, 30% – 95%) |
| Protection Functions | Over-temperature, over-voltage, under-voltage, short circuit, fan stall |
| Operating Temperature | 0 °C – 40 °C |
| Output Channels | 1 (1.8 m charging cable) |
| Compatible Batteries | DJI DB1580 / DB2160 |
| Compatible Drones | DJI Agras T70P, DJI Agras T100 |
