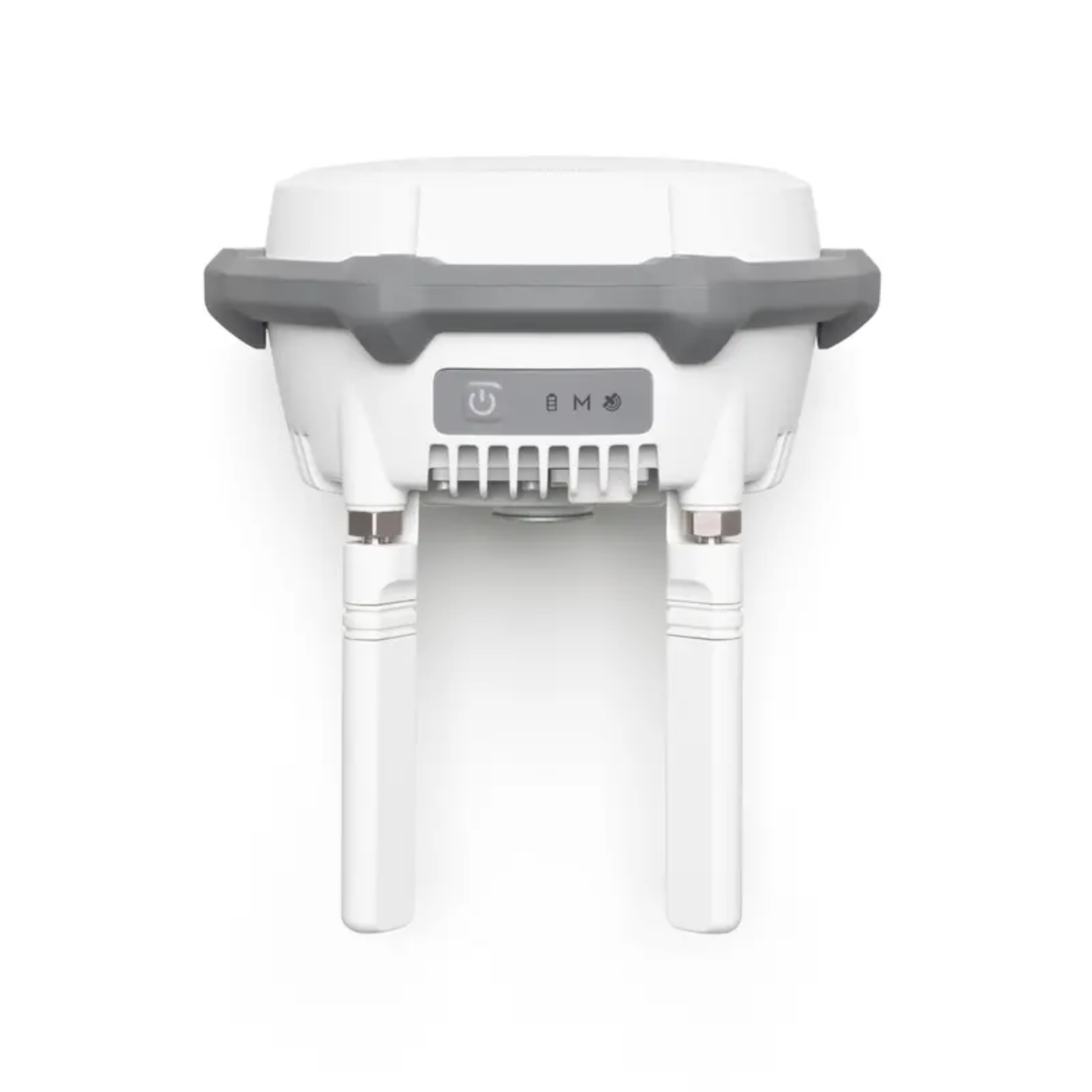

RENTAL D-RTK 3 AG GNSS STATION FOR DJI AGRAS T100
![RENTAL D-RTK 3 AG GNSS STATION FOR DJI AGRAS T100 [1]](https://gomagcdn.ro/domains3/zerovec.ro/files/product/original/inchiriere-statie-gnss-d-rtk-3-ag-pentru-dji-agras-t100-994072.png "RENTAL D-RTK 3 AG GNSS STATION FOR DJI AGRAS T100 [1]")
The DJI D-RTK 3 is a high-precision multifunctional GNSS station equipped with high-performance antennas and receiver modules capable of tracking data from major global navigation satellite systems. It supports Base Station, Relay Station, and Rover Station modes, providing high-precision positioning and multiple data transmission options.
In Base Station mode, it can provide positioning data for multiple aircraft simultaneously. In Relay Station mode, it can extend the drone's operating range. The Rover Station mode provides high-precision RTK measurements for aerial surveying applications, offering a comprehensive solution for safe and accurate operations.
In Base Station mode, it can provide positioning data for multiple aircraft simultaneously. In Relay Station mode, it can extend the drone's operating range. The Rover Station mode provides high-precision RTK measurements for aerial surveying applications, offering a comprehensive solution for safe and accurate operations.
Ediție:
Product Code:
C325
Do you need help?
0770531656
- Description
- Reviews (0)
| Specifications | |
|---|---|
| GNSS Receiver | |
| GNSS Frequency | GPS: L1C/A, L2C, L5 BDS: B1I, B2I, B3I, B1C, B2a, B2b Galileo: E1, E5a, E5b, E6 GLONASS: L1, L2 QZSS: L1C/A, L2C, L5 L-Band |
| Base / Relay Mode Accuracy | Single point (uncalibrated): 1.5 m horizontal / 3.0 m vertical (RMS) Satellite-based differential (20 min convergence): 30 cm horizontal / 40 cm vertical (RMS) Network RTK calibration: 1.0 cm + 1 ppm horizontal / 3.0 cm + 1 ppm vertical (RMS) |
| Rover Mode Accuracy | RTK fixed survey: 0.8 cm + 1 ppm horizontal / 1.5 cm + 1 ppm vertical (RMS) RTK tilt survey (0° – 60°): 8 mm + 0.7 mm/° tilt (under 2 cm within 30°) |
| Initialization Reliability | > 99.9% |
| Differential Data Format | RTCM 3.0 / 3.1 / 3.2 / 3.3, MSM4 / MSM5 / MSM6 / MSM7 |
| Transmission | |
| Transmission System | O4 Enterprise (OcuSync 4 directional antennas × 4, 2T4R) + Bluetooth 5.1 |
| Operating Frequency | Relay mode: 2.4 / 5.2 / 5.8 GHz Base mode: 2.4 / 5.8 GHz Rover mode: BLE 2.4 GHz |
| Max Distance (Base Mode) | With Matrice 400: 40 km (FCC) / 20 km (SRRC/CE/JP) With other aircraft: 15 km (FCC) / 12 km (SRRC) / 8 km (CE/JP) |
| Max Distance (Relay Mode) | Aircraft to relay: 25 km (FCC) / 12 km (SRRC) / 10 km (CE) Relay to remote controller/Dock 3: recommended within 1 km, max 3 km (CE: 300 m / 1 km) |
| Range Extension Effect (Relay Mode) | Severe obstruction (buildings, mountains): 3× – 5× improvement Mild obstruction (trees, glass): 1× – 3× improvement |
| Electrical Properties | |
| Power Consumption | Relay: 14.5 W / Base: 7 W / Rover: 6.2 W |
| Battery Operating Time | Relay: 4 hrs / Base: 7 hrs / Rover: 10 hrs |
| Battery | LiPo, 6500 mAh, 46.8 Wh |
| Power Port | Multifunctional Station: USB Type-C (USB PD 3.0 adapter, 9 – 15 V) Relay Fixed Deployment Version: USB Type-C + Ethernet PoE (Cat 6, max 100 m) |
| Physical Characteristics | |
| Operating Temperature | Multifunctional Station: -20 °C to 55 °C Relay Fixed Deployment Version: -30 °C to 55 °C |
| Max Altitude | 6000 m |
| Protection Rating | IP67 (both versions) |
| Drop Resistance | 2 m (with pole) |
| Dimensions | Multifunctional Station: 163 × 89 mm (without antennas) Relay Fixed Deployment Version: 163 × 344 mm |
| Weight | Multifunctional Station: approx. 1.26 kg Relay Fixed Deployment Version: approx. 2.24 kg |
