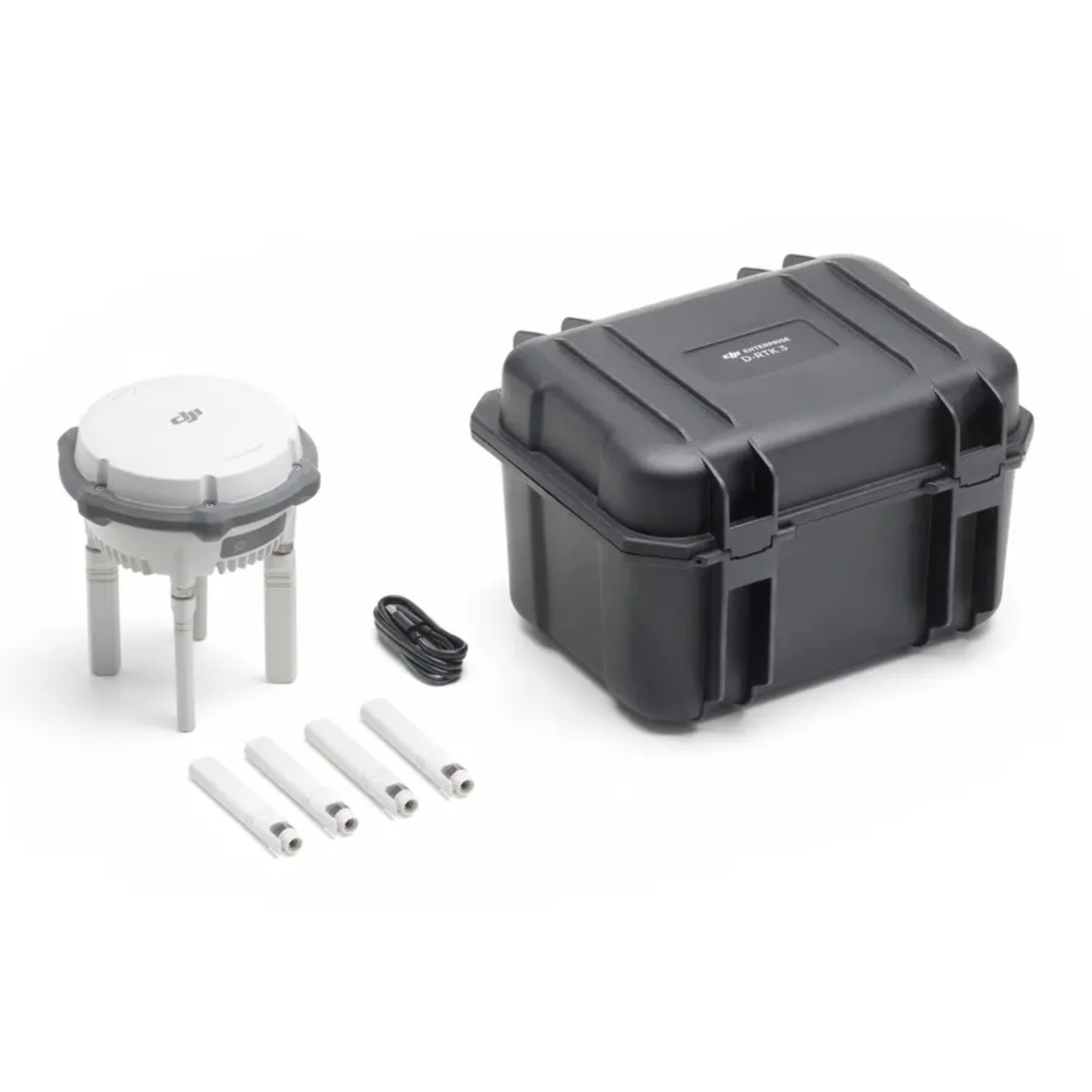

DJI D-RTK 3 MULTIFUNCTIONAL STATION

Name: DJI D-RTK 3 MULTIFUNCTIONAL STATION
Brand: DJI Enterprise
SKU: C87
Price: 1816.68 EUR
Availability: InStock

1.816,68 EUR

The new D-RTK 3 multifunctional station is equipped with high-performance antennas and advanced reception modules, capable of tracking and processing signals from major global satellite navigation systems. It supports multiple data transmission methods, providing high versatility in various operating scenarios.

The D-RTK 3 can function as a base station, simultaneously providing centimeter-accurate positioning data to multiple drones, or it can extend the operating range of drones and DJI Dock 3 when used in relay station mode. Also, the new rover mode, together with the DJI Enterprise and DJI Terra applications, provides a complete solution for high-precision aerial surveying work, contributing to safe, efficient and accurate operations.

User Manual (PDF)

In stock

Stock limit

Add to cart

Product Code: C87 Do you need help? 0770531656

Add to wishlist

Description
Video (1)
Reviews (0)

Specifications
GNSS Receiver
GNSS Frequency	GPS: L1C/A, L2C, L5 BDS: B1I, B2I, B3I, B1C, B2a, B2b GALILEO: E1, E5a, E5b, E6 GLONASS: L1, L2 QZSS: L1C/A, L2C, L5 L-Band
System Accuracy	Base Station Mode: Single Point Positioning Accuracy (uncalibrated): Horizontal: 1.5 m (RMS), Vertical: 3.0 m (RMS) Satellite-Based Differential Positioning Accuracy: Horizontal: 30 cm (RMS), Vertical: 40 cm (RMS) Rover Station Mode: RTK Accuracy (Fixed Solution): Horizontal: 0.8 cm (RMS) + 1 ppm, Vertical: 1.5 cm (RMS) + 1 ppm
Satellite-Based Precise Point Positioning	Supported Frequencies: BDS B2b, GALILEO E6, L-BAND Convergence Time: 20 minutes Accuracy: Horizontal: 30 cm (RMS), Vertical: 40 cm (RMS)
Differential Data Transmission Format	Rover Station Mode: Supports RTCM v3.0, v3.1, v3.2, MSM4, MSM5, MSM6, MSM7 Base Station records raw data in RTCM 3.2 (DAT) format
Initialization Reliability	>99.9%
Video Transmission
Video Transmission System	O4 Enterprise
Operating Frequency	Relay Station Mode: 2.4 GHz / 5.2 GHz / 5.8 GHz Base Station Mode: 2.4 GHz / 5.8 GHz Rover Station Mode: BLE 2.4 GHz
Transmitter Power (EIRP)	2.4000 GHz – 2.4835 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.150 GHz – 5.250 GHz: <23 dBm (CE/FCC) 5.725 GHz – 5.850 GHz: <33 dBm
Bluetooth	Protocol: Bluetooth 5.1 Frequency: 2.400 GHz – 2.4835 GHz EIRP Power: <10 dBm
Maximum Transmission Distance (unobstructed, interference-free)	Base Station Mode: FCC: 15 km SRRC: 12 km CE/JP: 8 km Rover Station Mode: Between D-RTK 3 and mobile devices: 30 m
Maximum Transmission Distance in Relay Station Mode	FCC: Aircraft – Relay Station: 25 km, Relay Station – Remote Controller: 1 km SRRC: Aircraft – Relay Station: 12 km, Relay Station – Remote Controller: 1 km CE: Aircraft – Relay Station: 10 km, Relay Station – Remote Controller: 300 m
Maximum Transmission Distance (obstructed, with interference)	Low interference, obstructed by buildings: 0–0.5 km Low interference, obstructed by trees: 0.5–3 km

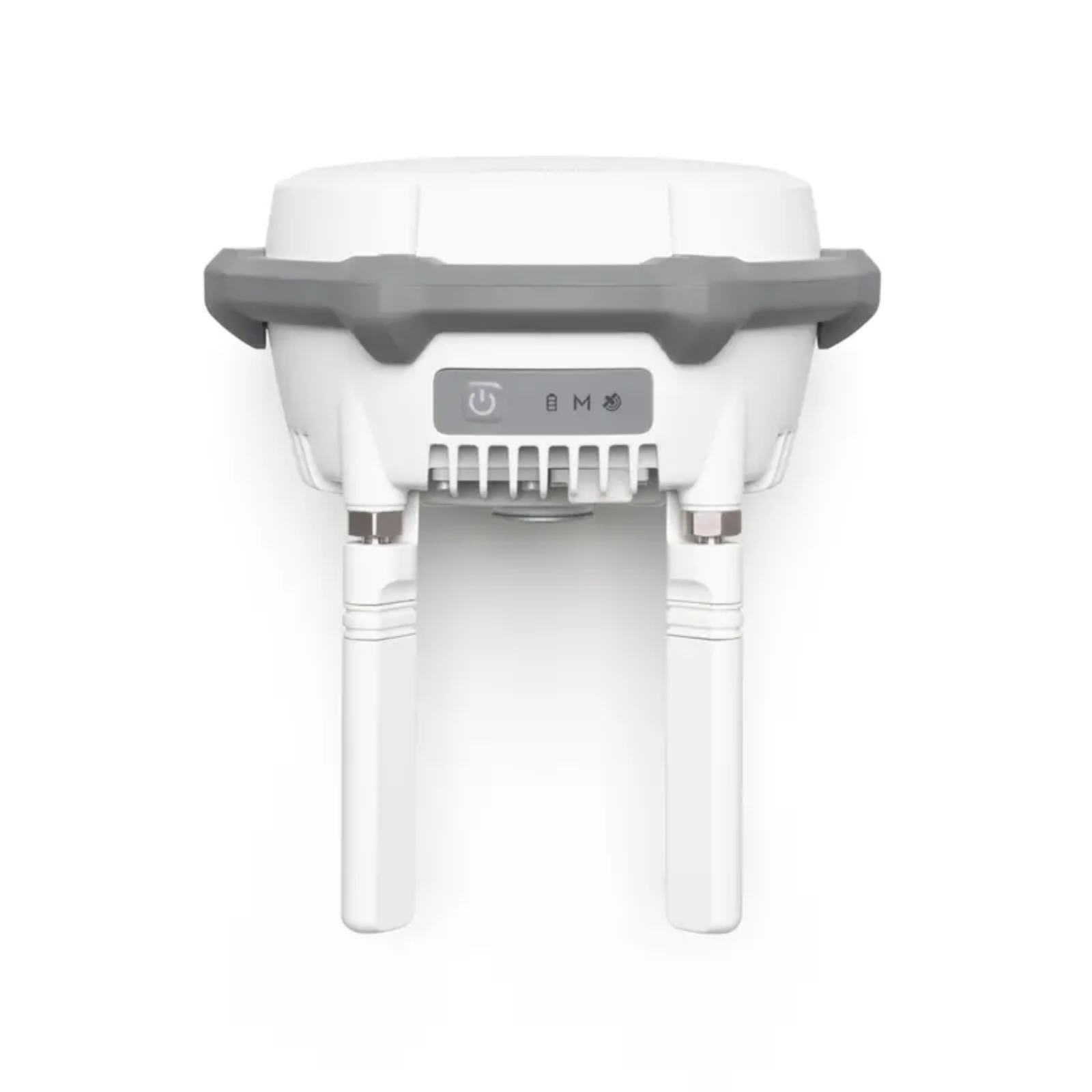

Antenna	OcuSync 4 directional antennas × 4, 2T4R
Fixed Relay Station Deployment Version	Compatible with DJI Cellular Dongle 2

Product safety information

Safety Information

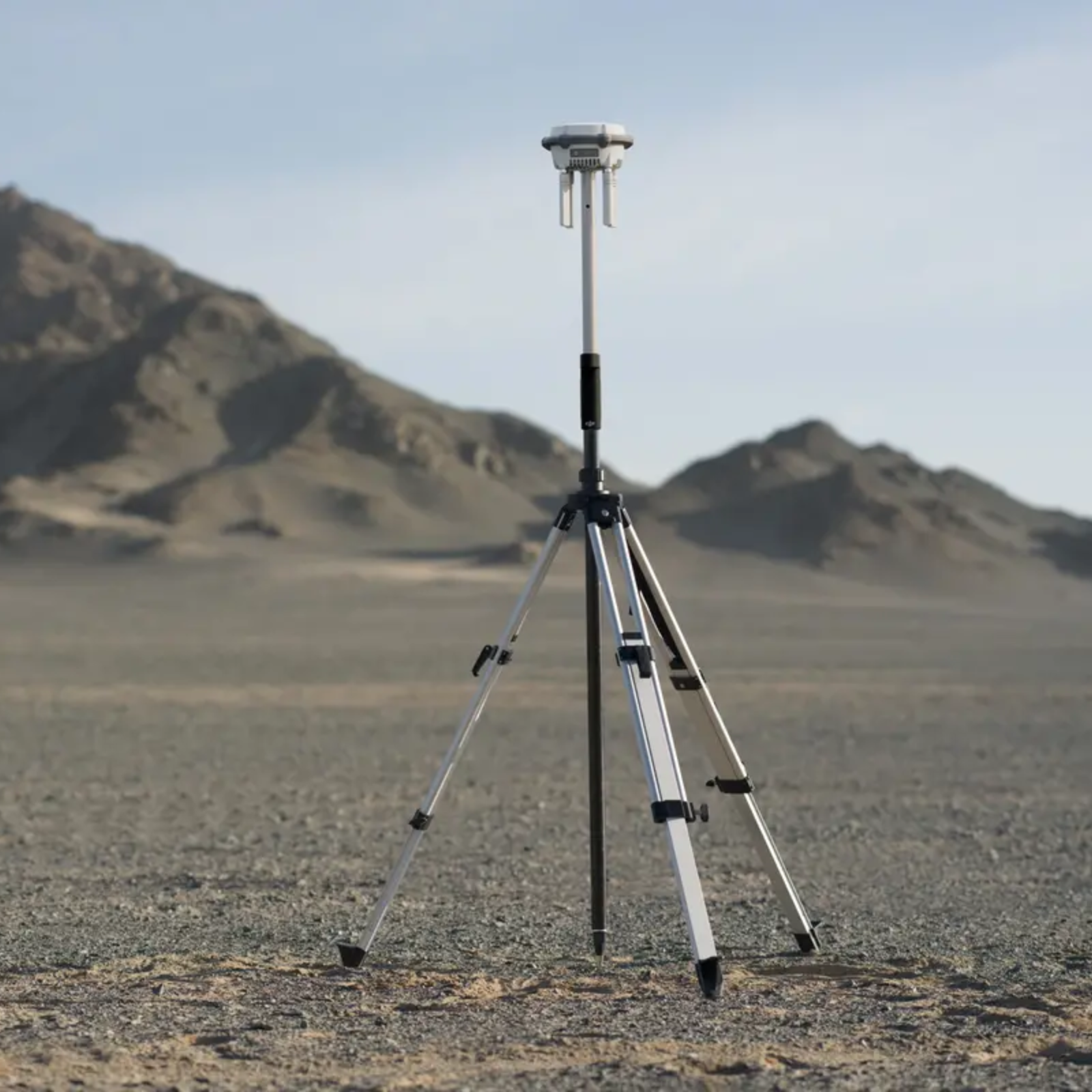

Set up the station in an open area, with no obstructions (trees, buildings) within 15° above the horizontal plane of the antennas and free of radio interference.
Stay at least 200 m from high-power radio sources and at least 50 m from high-voltage power lines.
Do not obstruct the antennas during use and avoid collisions to protect the precision components.
Do not let foreign matter (water, oil, soil, sand) get inside the product, and cover unused ports.
In rain or snow, take measures to protect against water and lightning.
Charge the product with a PD 3.0 USB charger with 9–15 V output, such as the DJI 65W Portable Charger. A 5 V charger charges the product only while it is powered off.
For storage longer than three months, keep the product at −5° to 30° C with the battery at 30% to 50%, and fully charge it at least once every six months. Do not store it fully discharged.
Do not leave the product near heat sources, in direct sunlight or in a hot vehicle.
Do not disassemble the product: the battery may leak, catch fire or explode. Use only genuine or officially authorized parts.
Use the product only in the corresponding frequency band and in accordance with local laws and regulations.
In rover mode, make sure the pole height set in the DJI Enterprise app matches the actual height.
