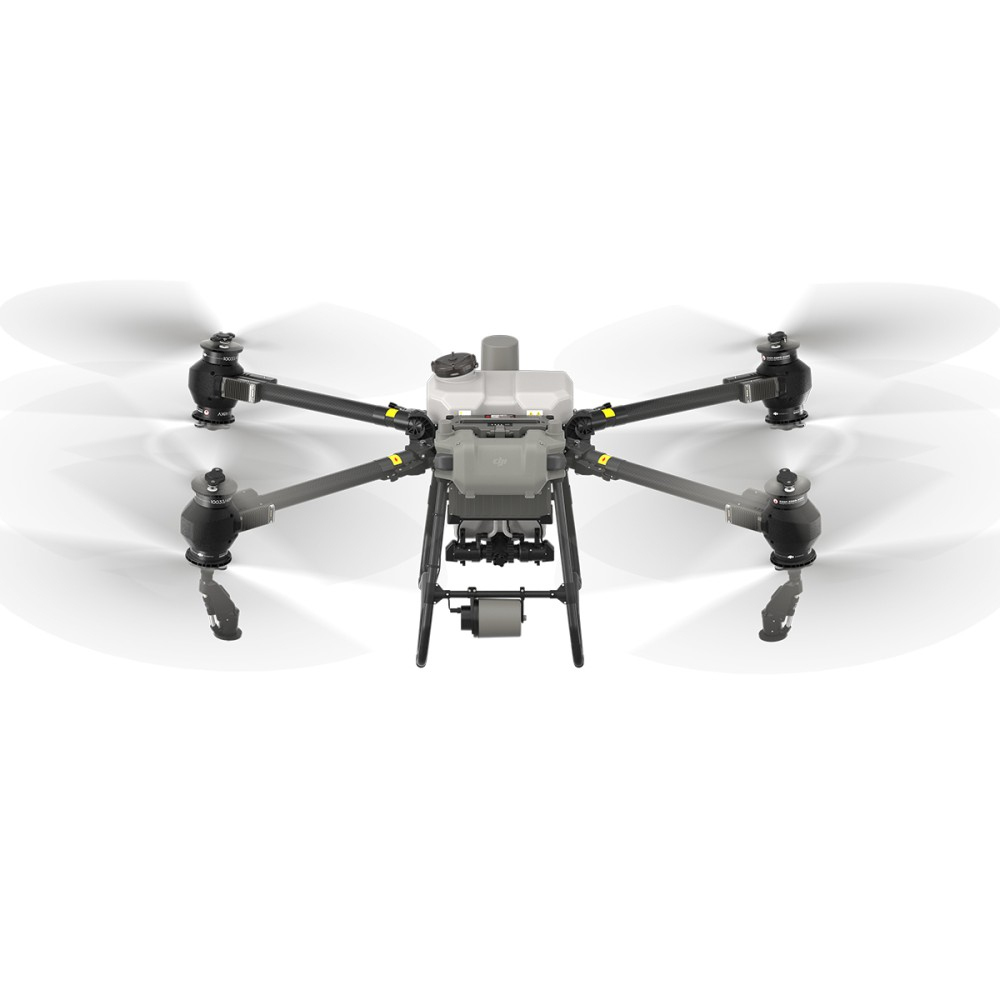

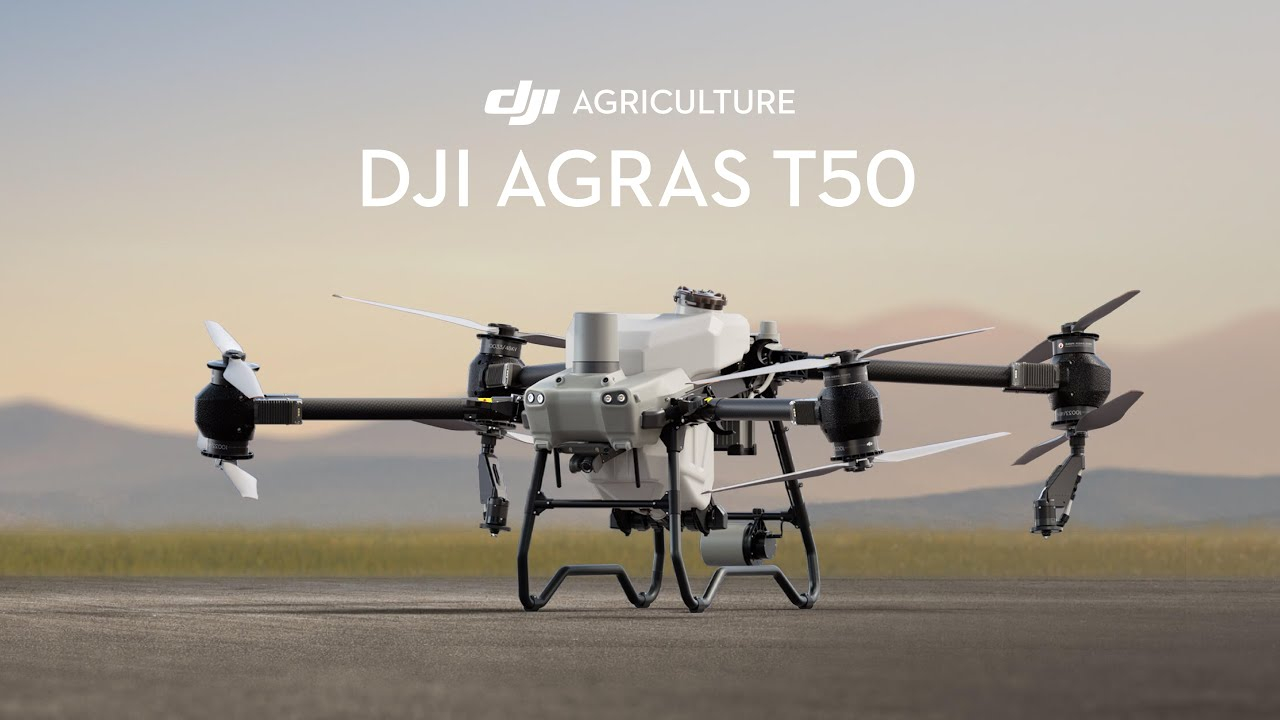

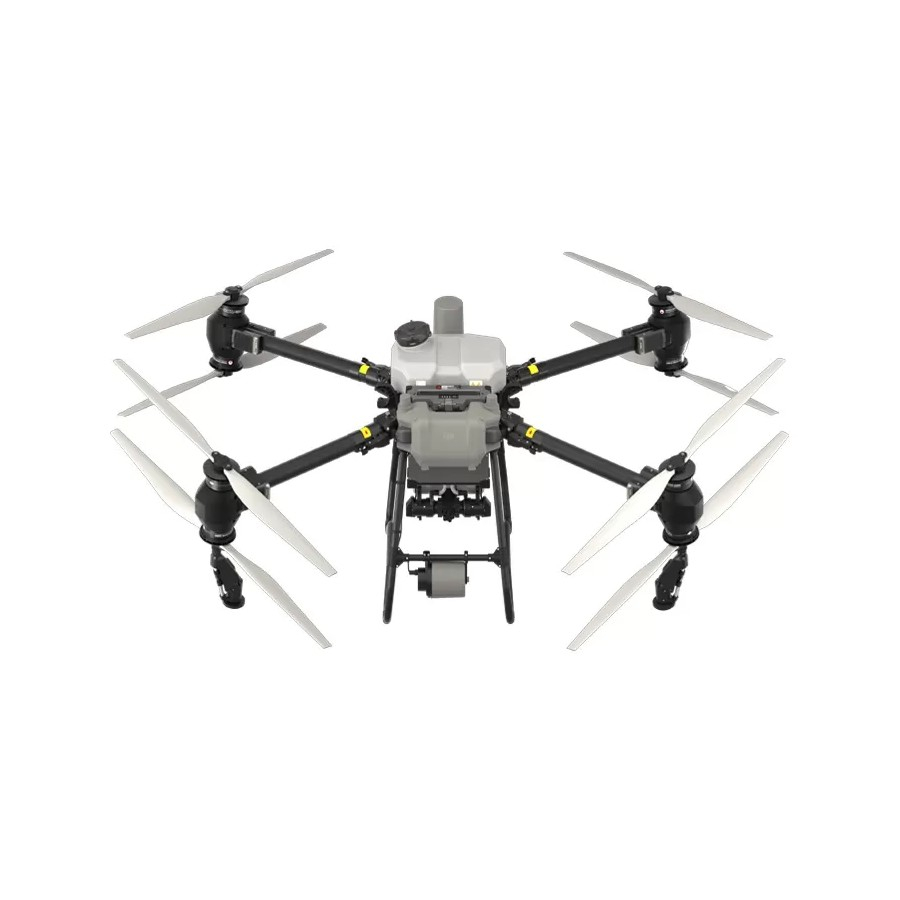

DJI AGRAS T50 RENTAL

Name: DJI AGRAS T50 RENTAL
Brand: DJI AGRICULTURE
SKU: C291
Price: 114.66 EUR
Availability: InStock

114,66 EUR

Rent the DJI Agras T50 for your agricultural work without investing in a drone of your own. It is a high-capacity drone suited to crop protection and work on large areas, and with the compatible spreading system it can also handle granular fertilisers and seeds. Renting suits seasonal jobs, trials before purchase or busy periods, by the day, the week or for the whole season. You receive the drone ready for work, with batteries, charger and the required accessories. On request we help you choose the right configuration and train your operator. Operation requires a trained pilot and compliance with drone regulations and rules on plant protection products. Contact us for availability and a quote.

Ediție:

In stock

Stock limit

Add to cart

Product Code: C291 Do you need help? 0770531656

Add to wishlist

Description
Reviews (0)

Specifications
General
Weight	39.9 kg (without battery) 52 kg (with battery)
Maximum takeoff weight for spraying	92 kg (at sea level)
Maximum takeoff weight for spreading	103 kg (at sea level)
Maximum diagonal wheelbase	2200 mm
Dimensions	2800×3085×820 mm (arms and propellers unfolded) 1590×1900×820 mm (arms unfolded and propellers folded) 1115×750×900 mm (arms and propellers folded)
Hovering accuracy range (with strong GNSS signal)	RTK enabled: Horizontal ±10 cm, Vertical ±10 cm RTK disabled: Horizontal ±60 cm, Vertical ±30 cm (radar module enabled: ±10 cm)
RTK/GNSS operating frequency	RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galileo E1/E5b, QZSS L1/L2 GNSS: GPS L1, GLONASS F1, BeiDou B1I, Galileo E1, QZSS L1
Maximum configurable flight radius	2000 meters
Maximum wind resistance	6 m/s
Propulsion System - Motors
Stator size	100×33 mm
KV	48 rpm/V
Power	4000 W/rotor
Propulsion System - Propellers
Material	Nylon carbon fiber filament
Size	54 in (1371.6 mm)
Propeller rotation diameter	1375 mm
Quantity	8
Dual-Atomized Spraying System - Spray Tank
Material	Plastic (HDPE)
Volume	40 liters
Operational payload	40 kg
Quantity	1
Dual-Atomized Spraying System - Sprinklers
Model	LX8060SZ
Quantity	2
Nozzle distance	1570 mm (rear nozzles)
Droplet size	50-500 μm
Effective spraying width	4-11 m (at a height of 3 m above crops)
Dual-Atomized Spraying System - Delivery Pumps
Type	Impeller pump (magnetic drive)
Quantity	2
Single pump flow rate	0-12 l/min
Maximum flow rate	16 l/min (2 sprinklers); 24 l/min (4 sprinklers)
T50 Spreading System
Compatible material diameter	0.5-5 mm dry granules
Spreading tank volume	75 liters
Internal spreading tank payload	50 kg
Spreading width	8 meters
Phased Array Radar System
Model	RD241608RF (front phased array radar); RD241608RB (rear phased array radar)
Terrain following	Maximum operating slope without mapping: 50° Altitude detection range: 1-50 m Stabilization operating range: 1.5-30 m
Obstacle avoidance	Obstacle detection range (omnidirectional): 1-50 m FOV: Front phased array radar: horizontal 360°, vertical ±45°, upward ±45° (cone). Rear phased array radar: vertical 360°, horizontal ±45°. Operating conditions: flight at a height greater than 1.5 m above the obstacle, with a horizontal speed of no more than 10 m/s and a vertical speed of no more than 3 m/s. Safety limit distance: 2.5 m Detection direction: 360° omnidirectional detection
Binocular Vision System
Measurement range	0.5-29 meters
Effective detection speed	≤10 m/s
Field of view (FOV)	Horizontal: 90°, Vertical: 106°
Operating environment	Adequate lighting and easily observable surroundings
Remote Controller
Model	RM700B
Operating frequency	2.4000-2.4835 GHz, 5.725-5.850 GHz
Maximum transmission distance	7 km (FCC), 5 km (SRRC), 4 km (MIC/CE); (without obstacles, without interference and at an altitude of 2.5 m)
Wi-Fi protocol	Wi-Fi 6
Wi-Fi operating frequency	2.4000-2.4835 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz
Bluetooth protocol	Bluetooth 5.1
Bluetooth operating frequency	2.4000-2.4835 GHz
GNSS	GPS+Galileo+BeiDou
Display	7.02-inch LCD touchscreen, 1920×1200 pixel resolution, 1200 cd/m² brightness
Operating temperature	-20° to 50° C (-4° to 122° F)
Storage temperature range	Less than one month: -30° to 45° C (-22° to 113° F) One to three months: -30° to 35° C (-22° to 95° F) Six months to one year: -30° to 30° C (-22° to 86° F)
Charging temperature	5° to 40° C (41° to 104° F)
Internal battery operating time	3 hours 18 minutes
External battery operating time	2 hours 42 minutes
Charging type	A locally certified USB-C charger with a maximum rated power of 65 W and maximum voltage of 20 V is recommended, such as the DJI 65W Portable Charger.
Charging time	2 hours for the internal battery or internal and external batteries (when the remote controller is powered off and a standard DJI charger is used)
DB1560 Intelligent Flight Battery
Model	DB1560 Intelligent Flight Battery (BAX702-30000mAh-52.22V)
Weight	Approx. 12.1 kg
Capacity	30000 mAh
Rated voltage	52.22 V
D12000iE Multifunctional Inverter Generator
Output channel	1. DC charging output 42-59.92 V/9000 W 2. Power supply for air-cooled radiator 12 V/6 A 3. AC output 230 V/1500 W or 120 V/750 W
Battery charging time	9-12 minutes
Fuel tank capacity	30 liters
Starting method	Generator startup via one-button start switch
Maximum engine power	12000 W
Fuel type	Unleaded gasoline with RON ≥91 (AKI ≥87) and alcohol content below 10% (Brazil: unleaded gasoline with RON ≥91 and alcohol content of 27%)
Reference fuel consumption	500 ml/kWh
Engine oil model	SJ 10W-40
C10000 Intelligent Power Supply
Model number	CSX702-9500
Dimensions	400 × 266 × 120 mm
Weight	Approx. 11.4 kg
Input/Output	Input (main): 220-240 V AC, 50/60 Hz, 24 A MAX Input (auxiliary): 220-240 V AC, 50/60 Hz, 24 A MAX Output: 59.92 V DC MAX, 175 A MAX, 9000 W MAX Input (main): 100-120 V AC, 50/60 Hz, 16 A MAX Input (auxiliary): 100-120 V AC, 50/60 Hz, 16 A MAX Output: 59.92 V DC MAX, 60 A MAX, 3000 W MAX
Charging time	9-12 minutes
Protection functions	Overvoltage, overcharge, undervoltage, and overtemperature protection
Charging safety	AC cable protection, power cable protection, and charging connector protection
Relay
Model	RL01-65
Dimensions	120×110×100 mm
Weight	≤575 g
Input voltage	9 V 3 A / 12 V 2.5 A / 15 V 2 A
Power consumption	9 W (SRRC), 12 W (FCC)
Capacity	6500 mAh
Operating time	4 hours
Operating frequency	2.4000-2.4835 GHz, 5.725-5.850 GHz
Maximum transmission distance	5 km (SRRC), 4 km (MIC/KCC/CE), 7 km (FCC) (without obstacles, without interference and at a flight altitude of 2.5 m)
Charging time	2 hours 20 minutes (when using a standard DJI charger)
IP rating	IP55
In the Box
Contents	1 × DJI AGRAS T50

Product safety information

Read the manufacturer's Safety Guidelines and User Manual before first use. The aircraft is intended only for trained adult operators who comply with aviation law and the rules on plant protection products. For rentals, the aircraft must be returned cleaned and in the condition in which it was received.

Warnings:

Do not fly over people, animals, dwellings, water sources or sensitive areas. Keep bystanders at a safe distance during takeoff, flight and landing.
Stay away from rotating propellers and motors. Wait until they stop fully and do not touch the motors, as they can cause burns.
Wear protective equipment (gloves, mask, goggles, protective clothing) when handling chemicals, fertilisers and contaminated equipment. Follow the product label and the safety data sheet.
Aerial application is regulated. Use the drone only with the required authorisations and comply with the rules on plant protection products, buffer zones and weather conditions (especially wind, to avoid drift).
Do not operate near manned aircraft or in prohibited areas. Check GEO zones and local restrictions before flight.
Do not fly in severe weather (strong wind, rain, fog, lightning). Avoid flying near high-voltage lines and other obstacles.
Do not exceed the maximum tank capacity or maximum takeoff weight. Use only genuine or DJI-authorized systems, nozzles and parts.
Before flight, check the propellers, arms, sensors, tank, pipes and nozzles. Do not use an aircraft that malfunctions or has been in a collision.
After each use, clean the aircraft and the spraying or spreading system as described in the manual, and do not leave chemical residues in the equipment.
Batteries: use only genuine DJI batteries and chargers and observe the temperature range given by the manufacturer. Do not use swollen or damaged batteries, and never disassemble or short-circuit them or charge them near flammable materials. Keep batteries away from moisture.
Rental: the aircraft must be operated only by trained operators, in compliance with the law. The renter is responsible for damage to crops, third parties and the environment, and for loss of or damage to the equipment during the rental period.
Not intended for children. Keep the equipment, batteries and substances out of children's reach.
