SHARE 6100 SDK

Name: SHARE 6100 SDK
Brand: Share UAV
SKU: C119
Price: 9357.06 EUR
Availability: InStock

9.357,06 EUR

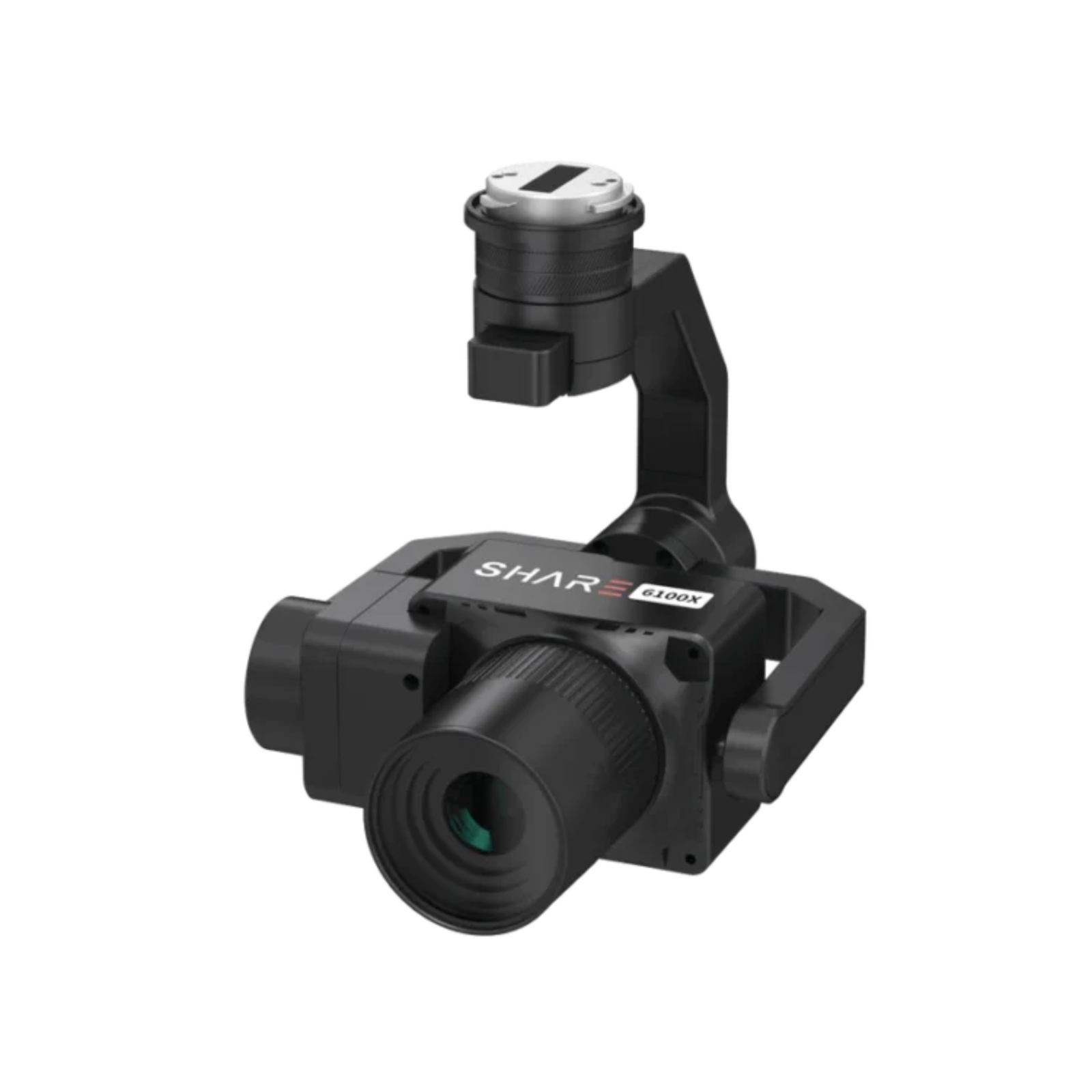

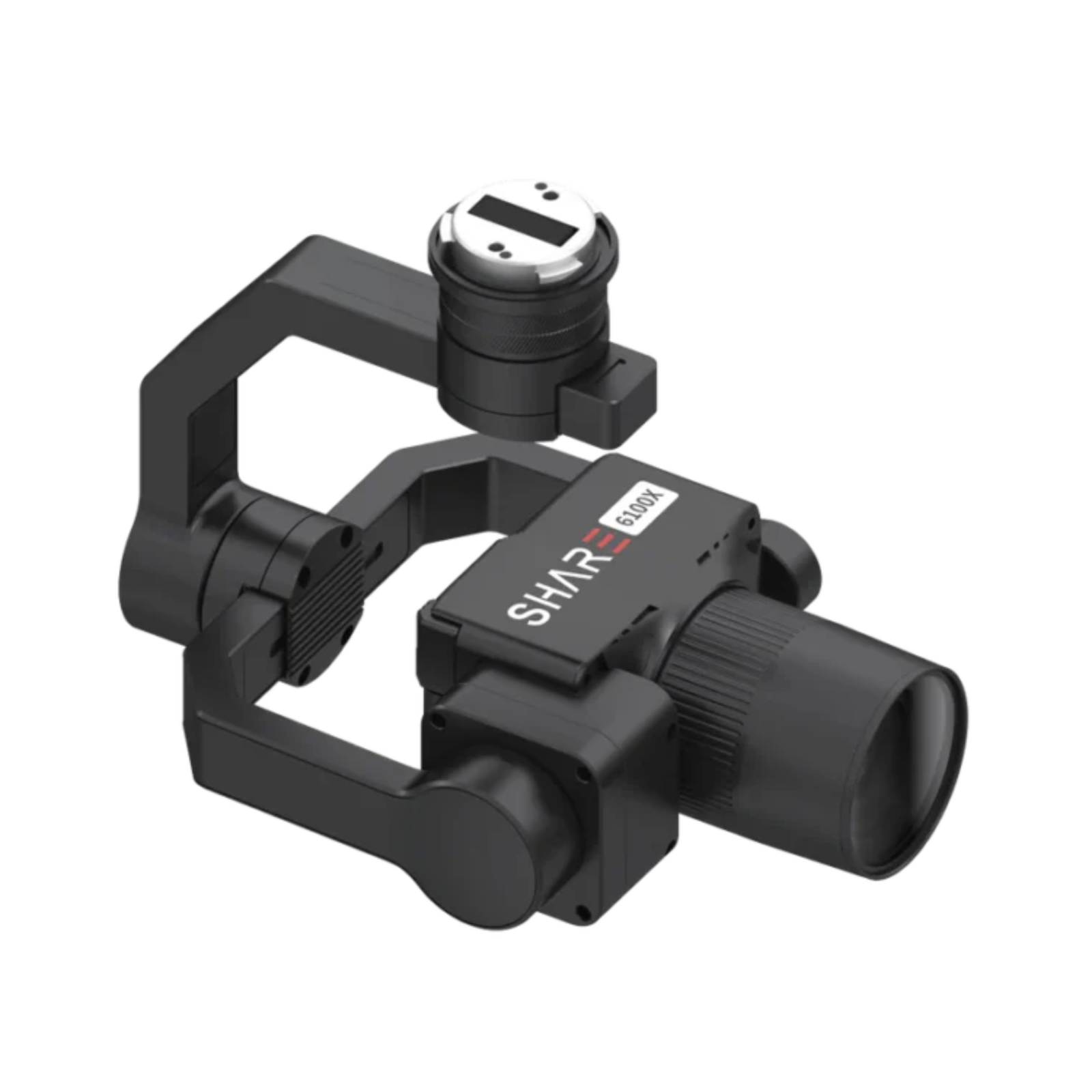

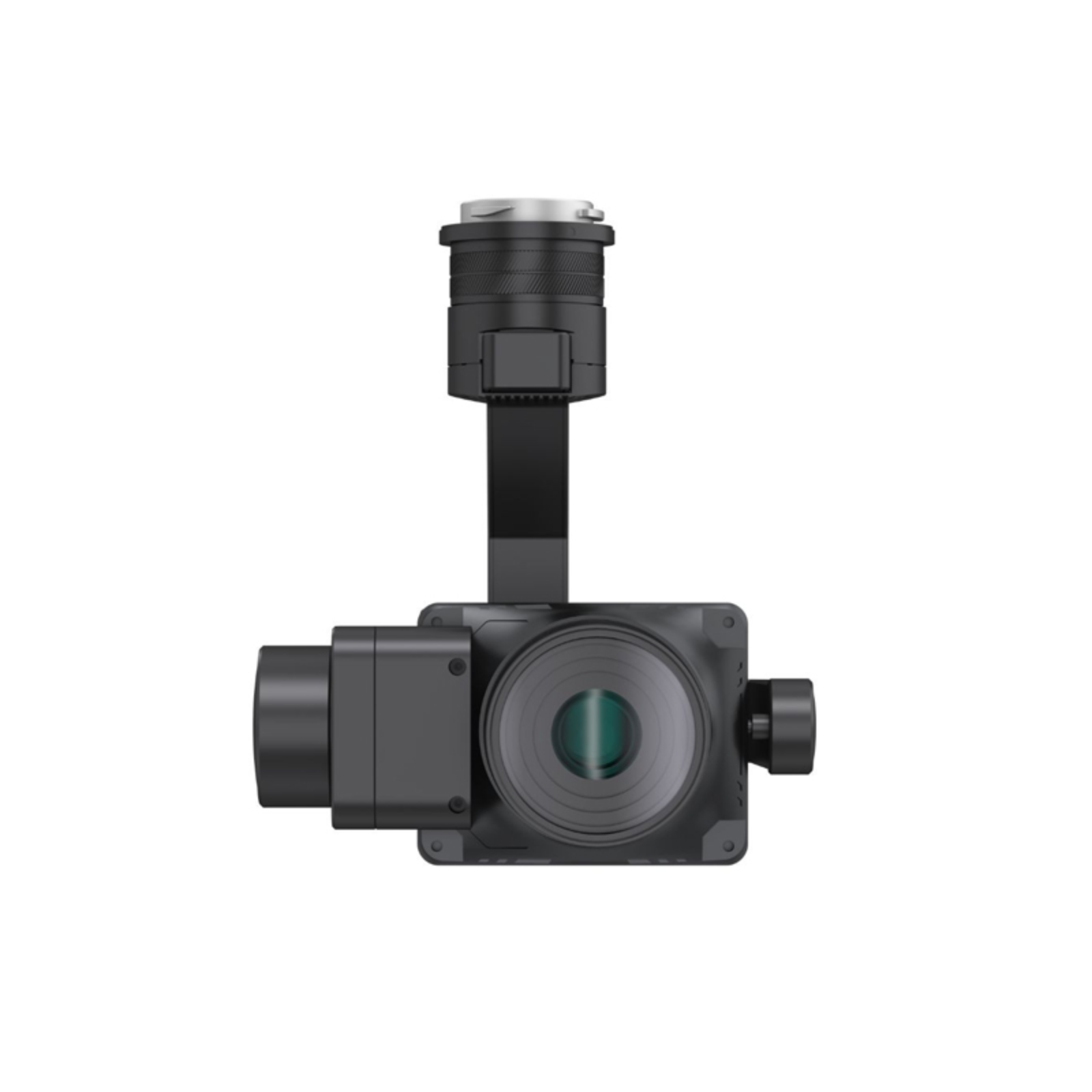

The SHARE 6100X/SDK is a professional 61 MP Full-Frame single-lens aerial mapping and inspection camera, designed for high-precision surveying, inspection, facade imaging, and real-time mapping applications.

Its lightweight construction, professional mapping lens, advanced stabilization, and compatibility with DJI enterprise UAV platforms make it suitable for a wide range of professional aerial operations.

In stock

Stock limit

Add to cart

Product Code: C119 Do you need help? 0770531656

Add to wishlist

Description
Video (1)
Reviews (0)

Specifications
Dimensions	128 × 181 × 153 mm
Weight	640 g (camera body: 280 g, one-piece aircraft aluminum alloy)
Supported Aircraft	DJI Matrice 350 RTK, as well as rotary and fixed-wing drones from other manufacturers
Camera Interface	DJI SkyPort and universal aviation plug interface (J30J 21P); standard DJI X-PORT gimbal
Effective Pixels	61 million pixels
Sensor	Full-frame, 36 × 24 mm, pixel size 3.76 μm
Lens Focal Length	Standard 40 mm, customizable to 56 mm
Lens	Professional mapping lens with LD low-dispersion elements and nano-coating
Shutter	Between-lens (Kimoto), 500,000-cycle lifespan, low friction, reduced jelly effect
Storage Capacity	512 GB
Camera Settings	Adjustable ISO, white balance, color mode, and shutter speed; Bluetooth parameter adjustment
Video Resolution	4K (3840 × 2160), 30 fps
Real-Time Transmission	1080P HD streaming, with automatic code stream adjustment
GCP-Free Modeling	TIMESYNC 2.0, for synchronized, accurate GCP-free operations
Minimum Focus Distance	20 m (macro photogrammetry and facade shooting)
Applications
Special Inspections	Top-mounted on the DJI Matrice 350 RTK, for bridge and construction inspections
Facades and Macro Photogrammetry	Detailed facade capture
Real-Time Mapping / Modeling	Real-time data transmission for immediate terrain modeling in emergency scenarios

Product safety information

The SHARE 6100 SDK is a 61 MP aerial camera with a full-frame sensor, designed to be mounted on drones (for example the DJI Matrice 350 RTK), for mapping and photogrammetry. It is intended for professional use only, by trained persons. It is not a toy.

Warnings:

Read the manufacturer's documentation before use.
Use the equipment only with a compatible drone, with original cables and accessories.
Before every flight, check the equipment for damage and make sure it is mounted correctly on the drone. Observe the drone's payload capacity.
Do not expose the equipment to water, rain or excessive moisture and do not immerse it.
The equipment may heat up during operation. Do not cover it and do not touch it immediately after use.
Do not touch the lens and sensor with your fingers. Clean the lens only with materials intended for optical equipment.
Do not open, disassemble or modify the equipment. Do not use it if it is damaged.
The camera can record images and videos of people. Comply with privacy and personal data protection law (including GDPR) and use it only during authorized operations.
Comply with aviation law in your country.
Keep out of reach of children.

Manufacturer: SHARE (SHARE3DCAM LIMITED). Web: www.share3dcam.com. Read the documentation supplied by the manufacturer with the product.
