SHARE 505S PRO

Name: SHARE 505S PRO
Brand: Share UAV
SKU: C116
Price: 314635.83 EUR
Availability: InStock

314.635,83 EUR

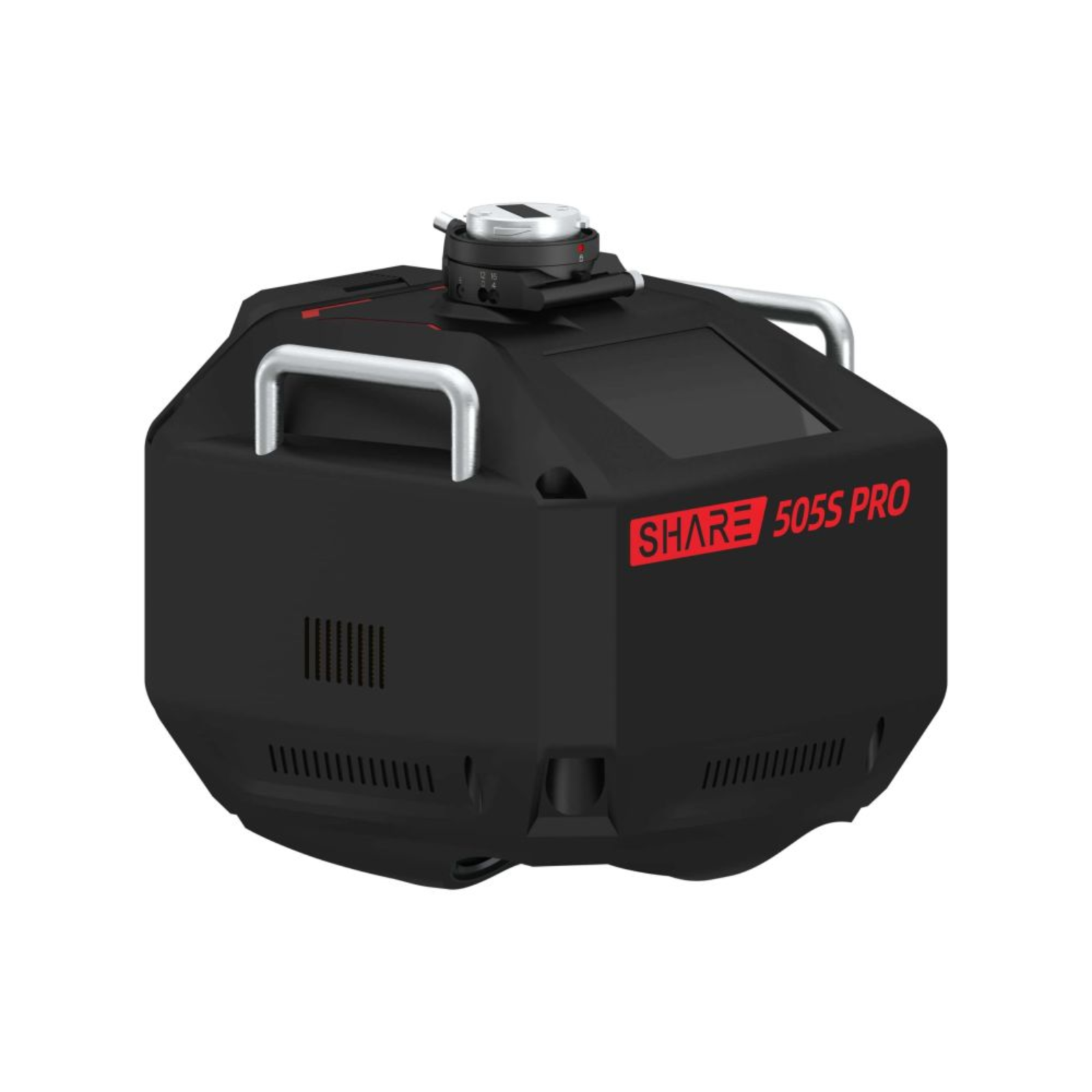

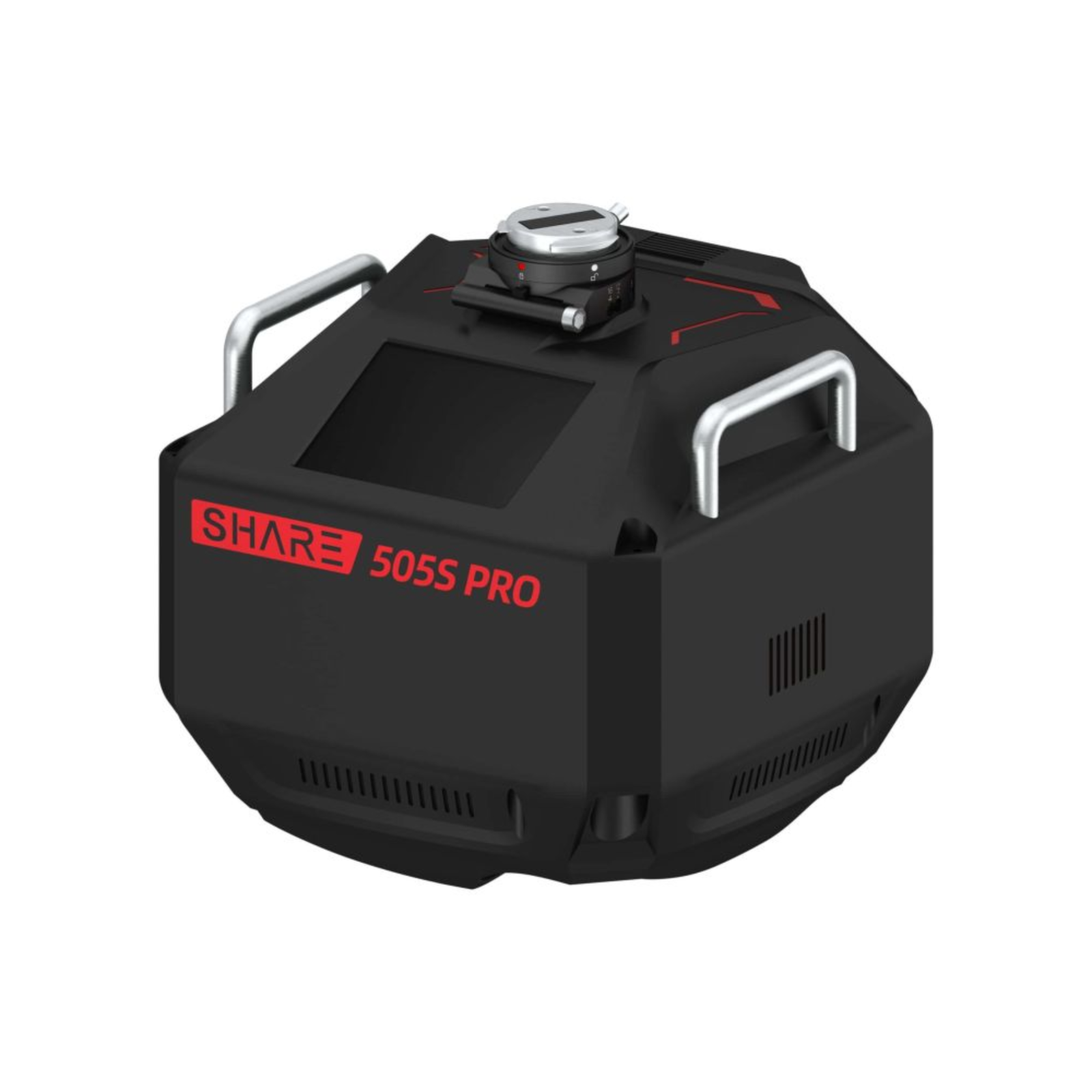

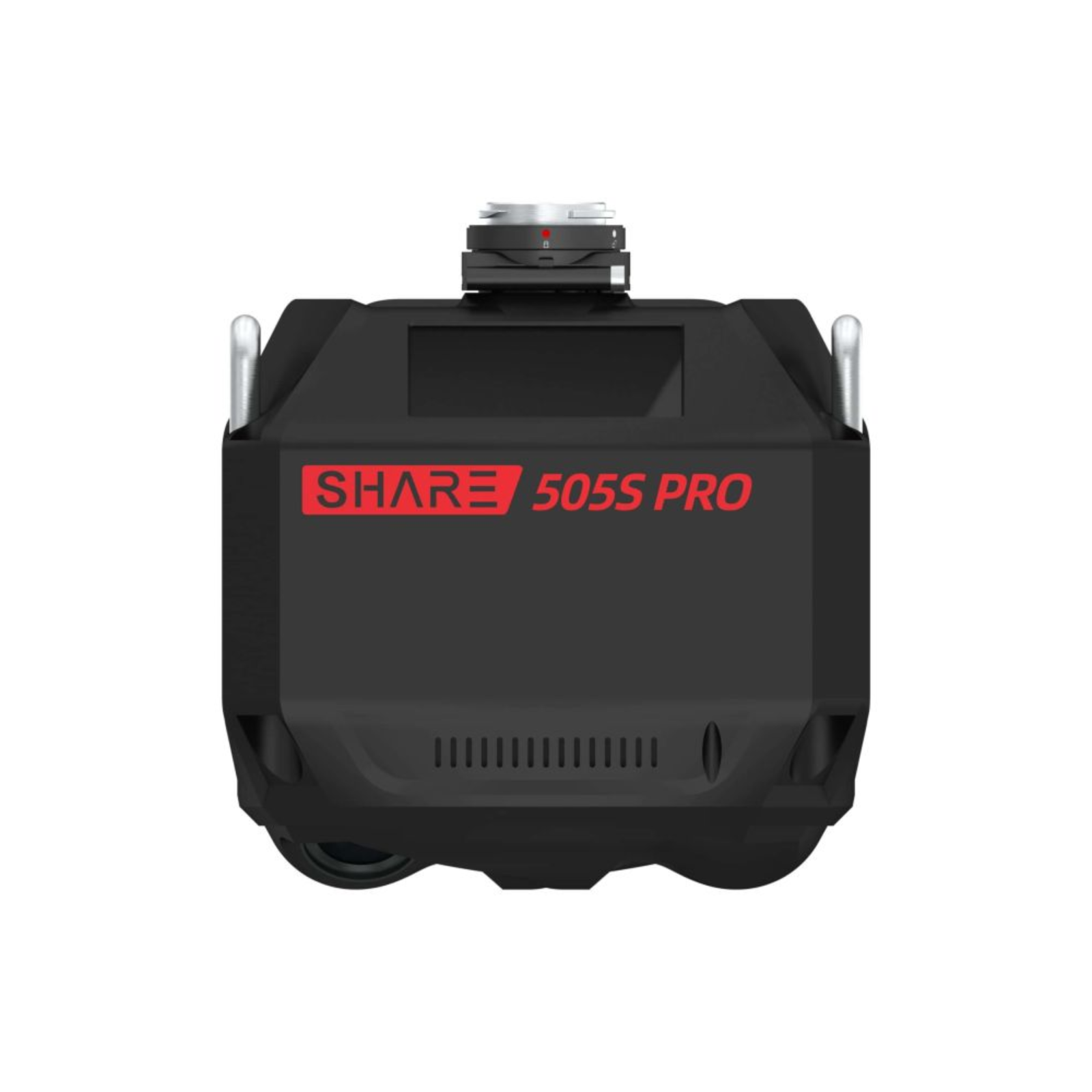

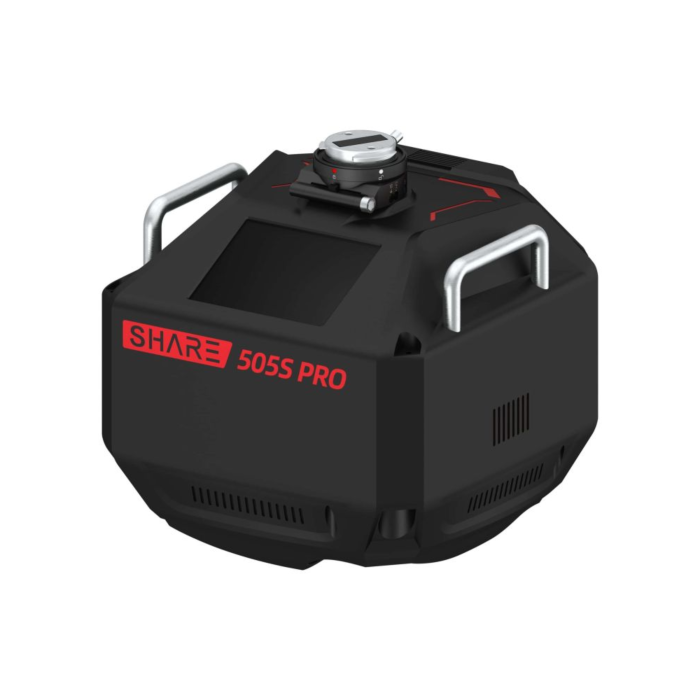

The SHARE 505S PRO is a professional oblique aerial surveying camera from the SHARE 5 series, equipped with 5 Medium-Format lenses and a total resolution of over 505 MP. It is designed for large-scale 3D mapping, aerial surveying, high-precision 3D modeling, and Digital Twin projects.

The camera is compatible with the DJI Matrice 400, as well as multirotor and fixed-wing UAVs, and is designed for fast, high-volume aerial data collection.

In stock

Stock limit

Add to cart

Product Code: C116 Do you need help? 0770531656

Add to wishlist

Description
Reviews (0)

Specifications

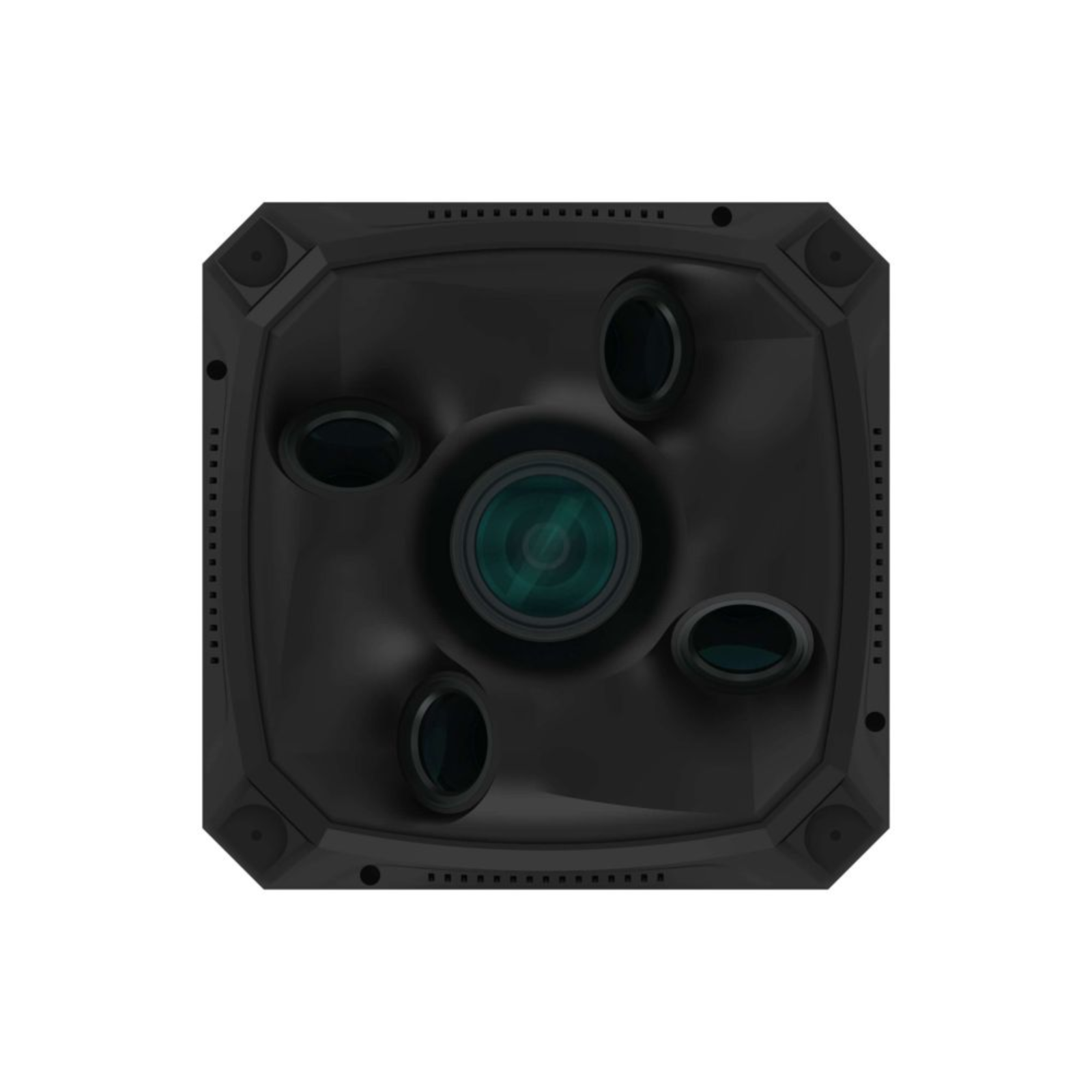

Lens Configuration	5 lenses: 4 × oblique + 1 × nadir (perpendicular)
Effective Pixels	Over 505 million total pixels
Sensor	Medium format, 43.8 × 32.9 mm, pixel size 3.76 × 3.76 μm
Focal Length	4 × oblique camera: 56 mm 1 × nadir camera: 40 mm
Shutter Life	1,000,000 actuations
Recommended Equipment	DJI Matrice 400, multirotor or fixed-wing UAVs
Flight Speed	Aerial data collection at speeds up to 25 m/s on the DJI Matrice 400
Live Video Transmission	Real-time synchronized HD video from all 5 lenses, 4K / 1080P, with 1-view or 5-view display
Image Processing Chip	5 nm chip, for improved image consistency, modeling accuracy, and lighting adaptability
Construction	Lightweight CNC-machined aerospace-grade magnesium alloy body, for extreme environments (high temperature, humidity, cold)
Storage	Industrial-grade SSD modules, 2 TB capacity
Copy Speed	Over 1 GB/s
Interfaces	DJI SkyPort / universal interface / USB-C
Power Supply	DC 12 – 50 V
Applications
3D Mapping	From rural housing mapping and block-level data collection to high-precision modeling of high-rise buildings
Large-Scale 3D Modeling	City-level 3D modeling at 3 cm ground resolution, and digital twin over thousands of square kilometers

Product safety information

The SHARE 505S PRO is a 5-lens oblique aerial camera with medium-format sensors (over 510 MP in total), with a 56 mm focal length for the oblique images and 40 mm for the down-view, dual 2 TB SSD storage and 4K/1080p live video. It is powered from an external 12–50 V DC source and mounts on drones through the DJI SkyPort, universal or USB-C interfaces (recommended: DJI Matrice 400, as well as other multi-rotor and fixed-wing drones). It is intended for professional use only, by trained persons. It is not a toy.

Warnings:

Read the manufacturer's documentation before use.
Use the equipment only with a compatible drone, with original cables and accessories. Power it only from a source within 12–50 V DC.
Before every flight, check the equipment for damage and make sure it is mounted correctly on the drone. Observe the drone's payload capacity.
Do not expose the equipment to water, rain or excessive moisture and do not immerse it.
The equipment may heat up during operation. Do not cover it and do not touch it immediately after use.
Do not touch the lenses and sensors with your fingers. Clean the lenses only with materials intended for optical equipment.
Do not open, disassemble or modify the equipment. Do not use it if it is damaged.
The camera can record images and videos of people. Comply with privacy and personal data protection law (including GDPR) and use it only during authorized operations.
Comply with aviation law in your country.
Keep out of reach of children.

Manufacturer: SHARE (SHAREUAV), Shenzhen, China. Read the documentation supplied by the manufacturer with the product.
