SHARE 105S PRO

Name: SHARE 105S PRO
Brand: Share UAV
SKU: C108
Price: 27250.19 EUR
Availability: InStock

27.250,19 EUR

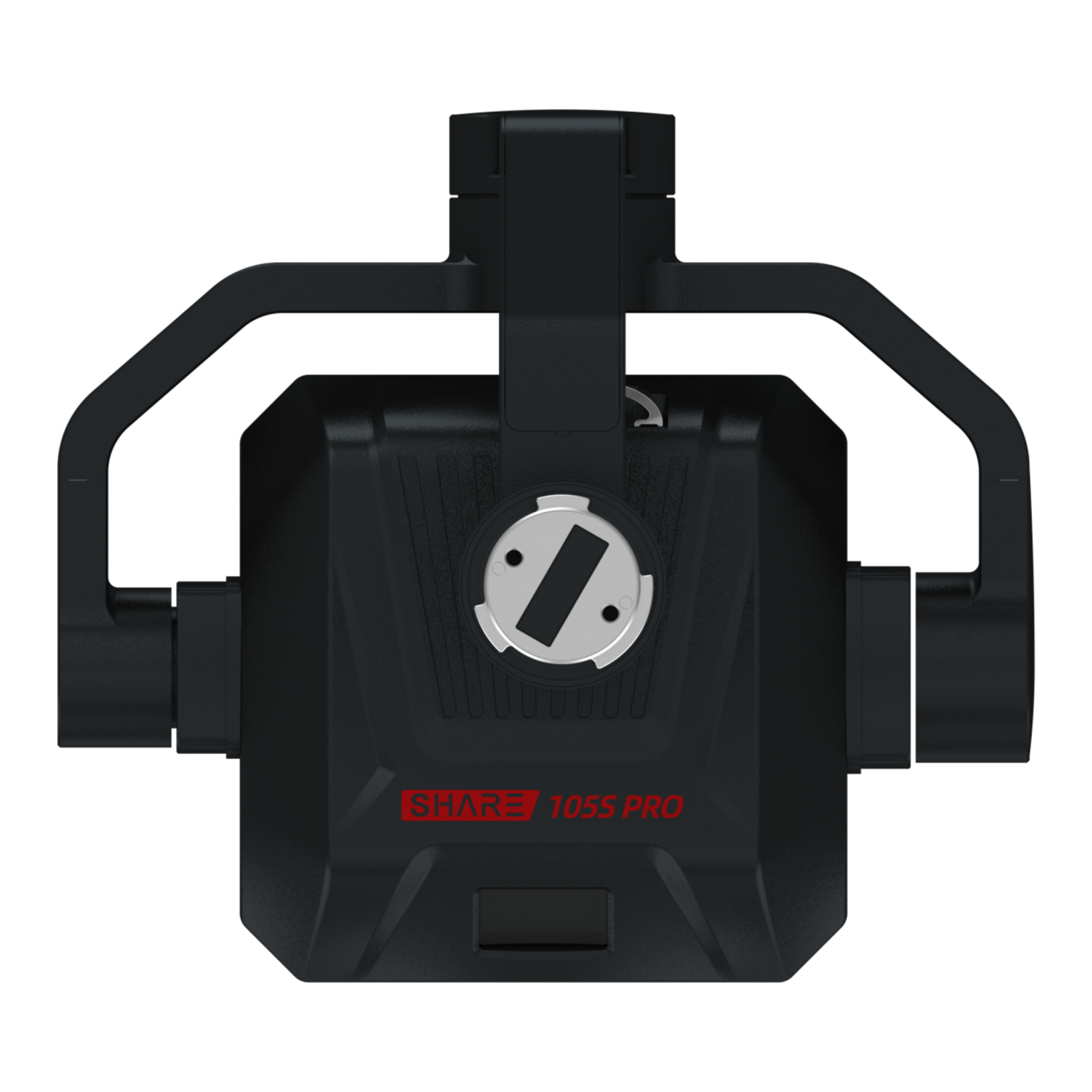

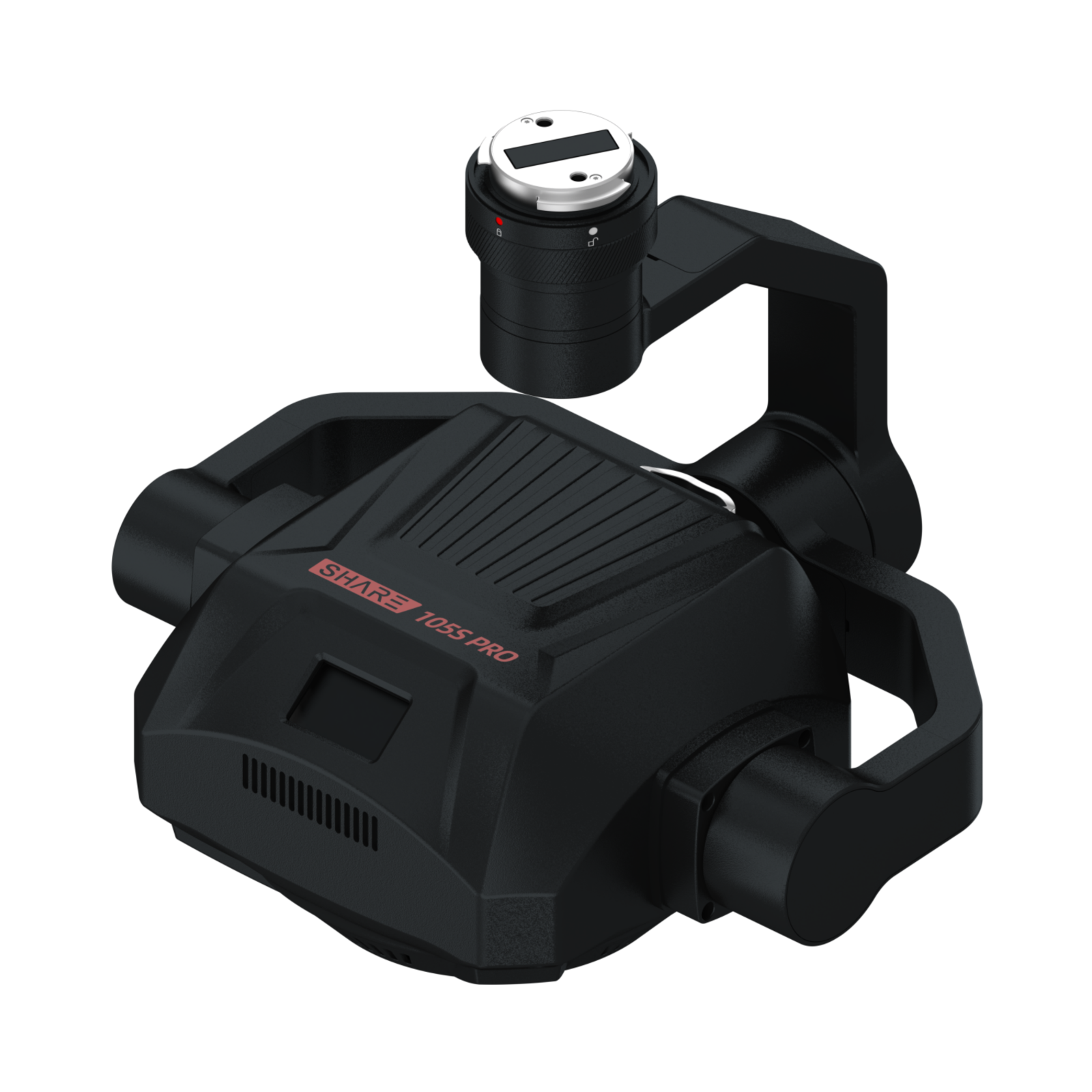

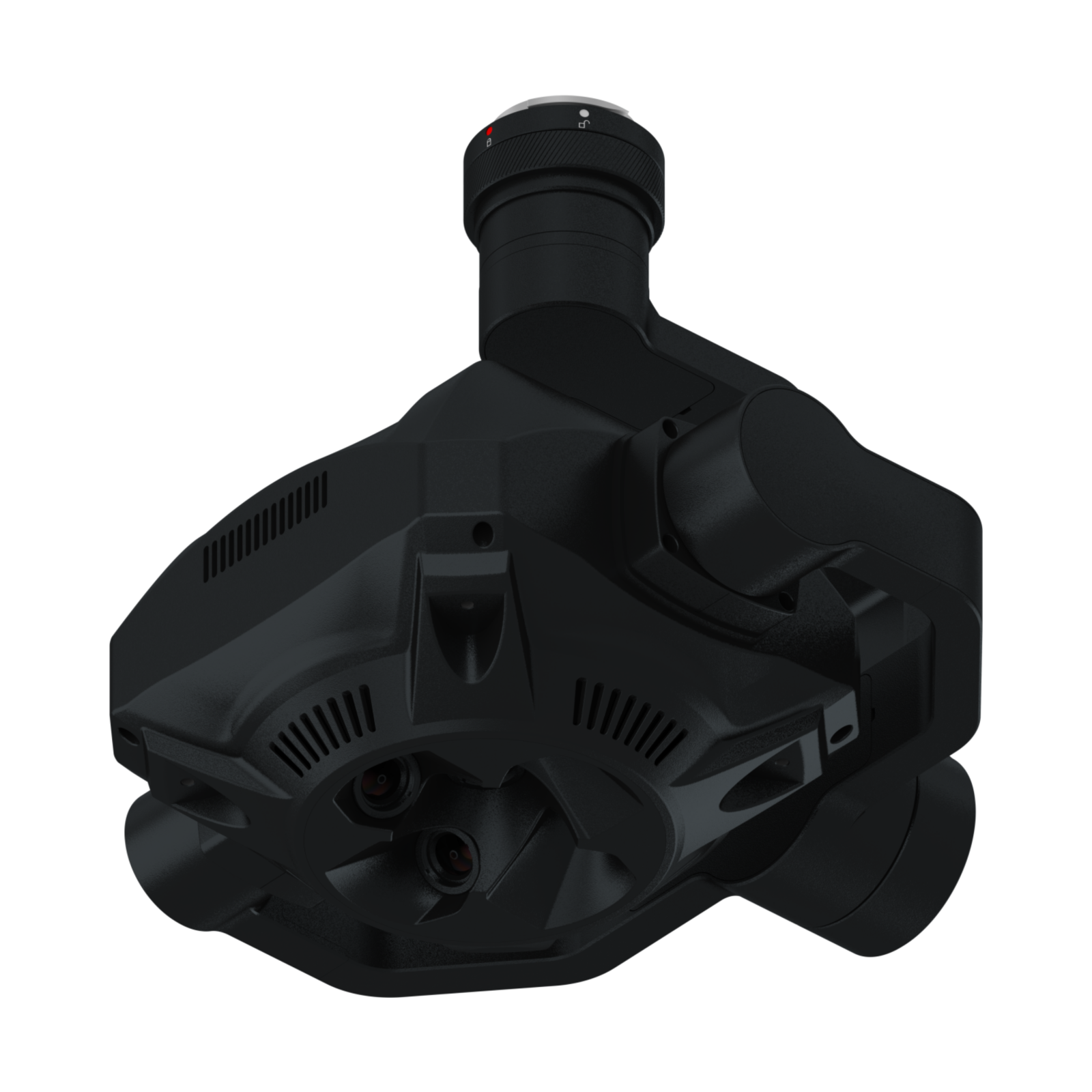

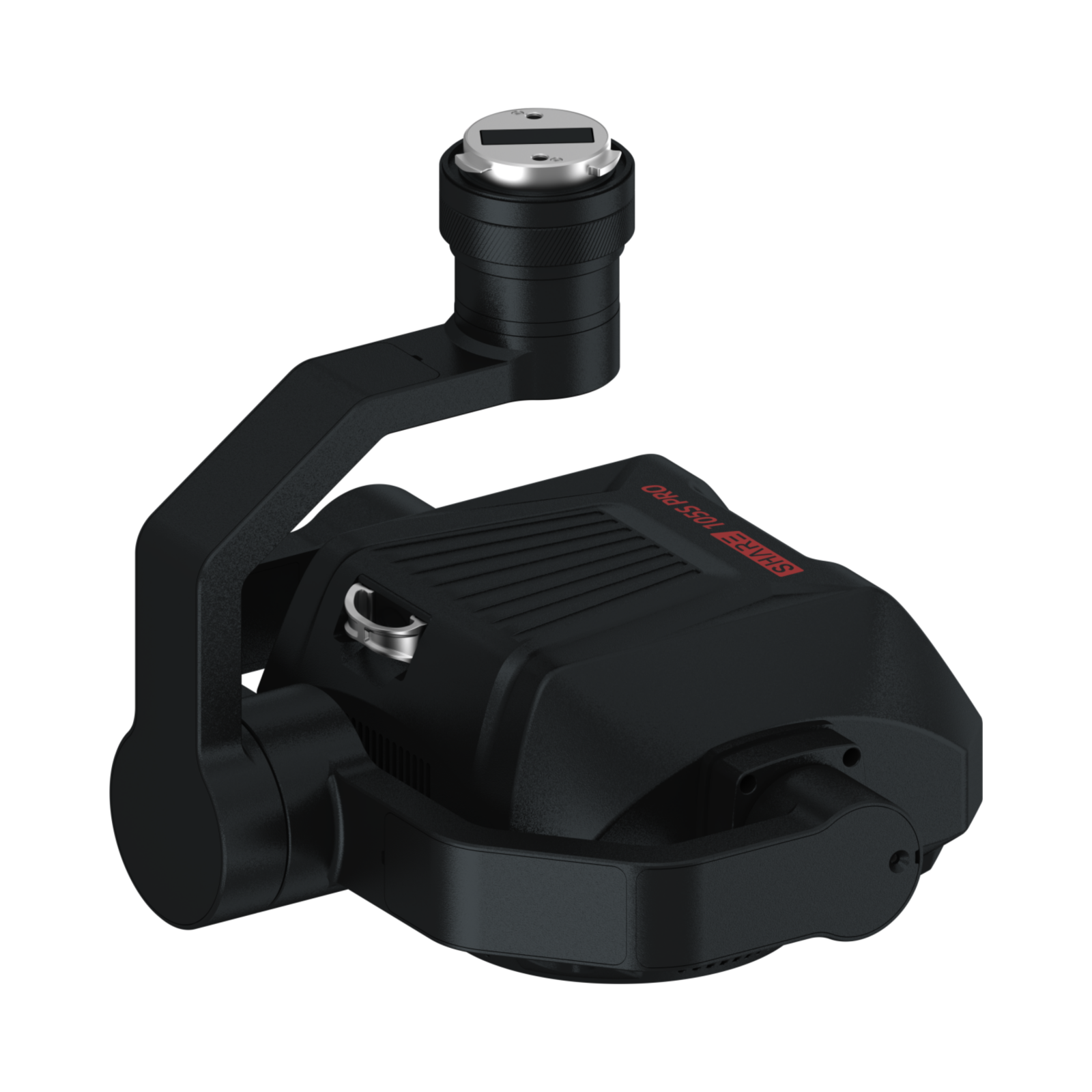

The SHARE 105S PRO is a professional 5-lens oblique aerial mapping camera with a total resolution of over 130 MP. It is designed for aerial surveying and 3D mapping, from rural and urban area mapping to high-precision building modeling and large-scale digital twin projects.

The camera is specifically designed for the DJI Matrice 400, with hardware, firmware, and software communication protocol integration through the SkyPort interface.

In stock

Stock limit

Add to cart

Product Code: C108 Do you need help? 0770531656

Add to wishlist

Description
Reviews (0)

Specifications
5 Lenses	4 × 35 mm oblique + 1 × 25 mm nadir
Total Resolution	over 130 MP
Sensor	23.5 × 15.7 mm
Pixel Size	3.76 × 3.76 μm
Recommended Equipment	DJI Matrice 400, as well as multirotor and fixed-wing drones
Flight Speed	supports data collection operations at speeds of up to 25 m/s on DJI Matrice 400
Live Video Transmission	supports synchronized video streaming up to 4K/1080P, with 1-camera or 5-camera display
Image Processing Chip	advanced processing for improved image consistency, modeling accuracy, and adaptability to lighting conditions
Construction	CNC-machined aerospace-grade magnesium alloy body
Storage	two industrial-grade SSD modules, with a total indicated capacity of 2 TB
Copy Speed	over 1 GB/s
Interfaces	DJI SkyPort / universal interface / USB-C
Power Supply	DC 12–50 V
Technical Parameters
Sensor Size	23.5 × 15.7 mm
Pixel Size	3.76 × 3.76 μm
Effective Pixels	over 130 million
Focal Length	4 × oblique camera: 35 mm 1 × nadir camera: 25 mm
Storage	1280 GB industrial storage hard drive according to the provided specification
Shutter Life	500,000 actuations
Power Supply	DC 12–50 V
Interface	DJI SkyPort / universal interface / USB-C
Applications
Topographic Mapping	Topographic Mapping
Urban 3D Mapping	Urban 3D Mapping
Building Modeling	Building Modeling
Oblique Photogrammetry	Oblique Photogrammetry
Digital Twin	Digital Twin
Large-Scale 3D Modeling	Large-Scale 3D Modeling
Rapid Aerial Data Collection	Rapid Aerial Data Collection
Package Contents
Package Contents	1 × SHARE 105S PRO – 130 MP 5-Lens Oblique Aerial Camera

Product safety information

The SHARE 105S PRO is a 5-lens oblique aerial camera (130 MP in total), with a 35 mm focal length for the oblique images and 25 mm for the down-view, a 3-axis gimbal and 1280 GB of storage. It weighs approx. 580 g without the gimbal (1040 g with the gimbal) and mounts on DJI Matrice 400 RTK drones, as well as on other multi-rotor and fixed-wing drones and on manned aircraft. It is intended for professional use only, by trained persons. It is not a toy.

Warnings:

Read the manufacturer's documentation before use.
Use the equipment only with a compatible aircraft, with original cables and accessories.
Before every flight, check the equipment for damage and make sure it is mounted correctly. The equipment weighs up to 1040 g, so observe the aircraft's payload capacity.
Use the equipment at temperatures between -20 °C and 65 °C. Do not expose it to water, rain or excessive moisture and do not immerse it.
The equipment may heat up during operation. Do not cover it and do not touch it immediately after use.
Do not touch the lenses and sensors with your fingers. Clean the lenses only with materials intended for optical equipment.
Do not open, disassemble or modify the equipment. Do not use it if it is damaged.
The camera can record images and videos of people. Comply with privacy and personal data protection law (including GDPR) and use it only during authorized operations.
Comply with aviation law in your country.
Keep out of reach of children.

Manufacturer: SHARE (SHAREUAV), Shenzhen, China. Read the documentation supplied by the manufacturer with the product.
