SHARE 100M A10

Name: SHARE 100M A10
Brand: Share UAV
SKU: C121
Price: 55024.43 EUR
Availability: InStock

55.024,43 EUR

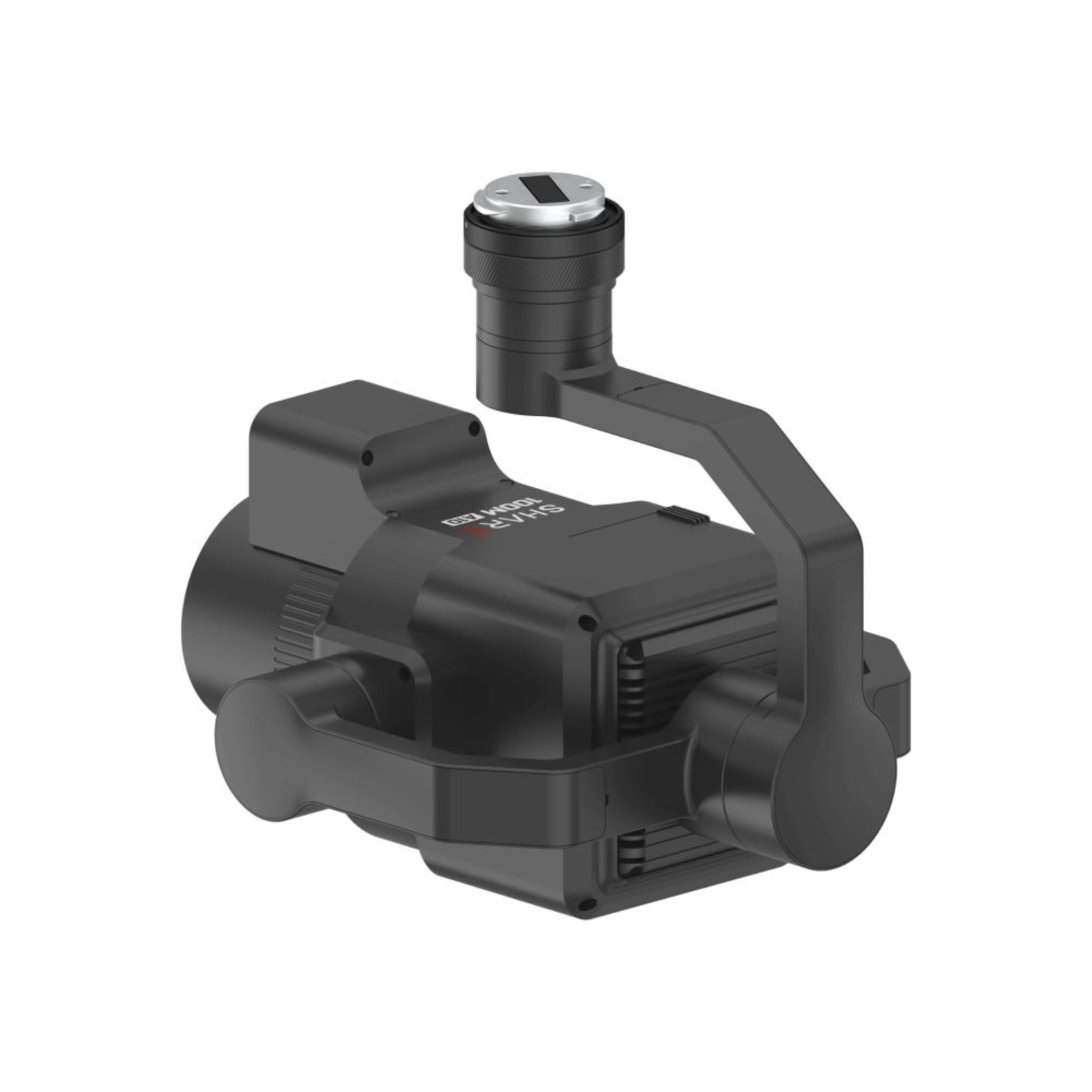

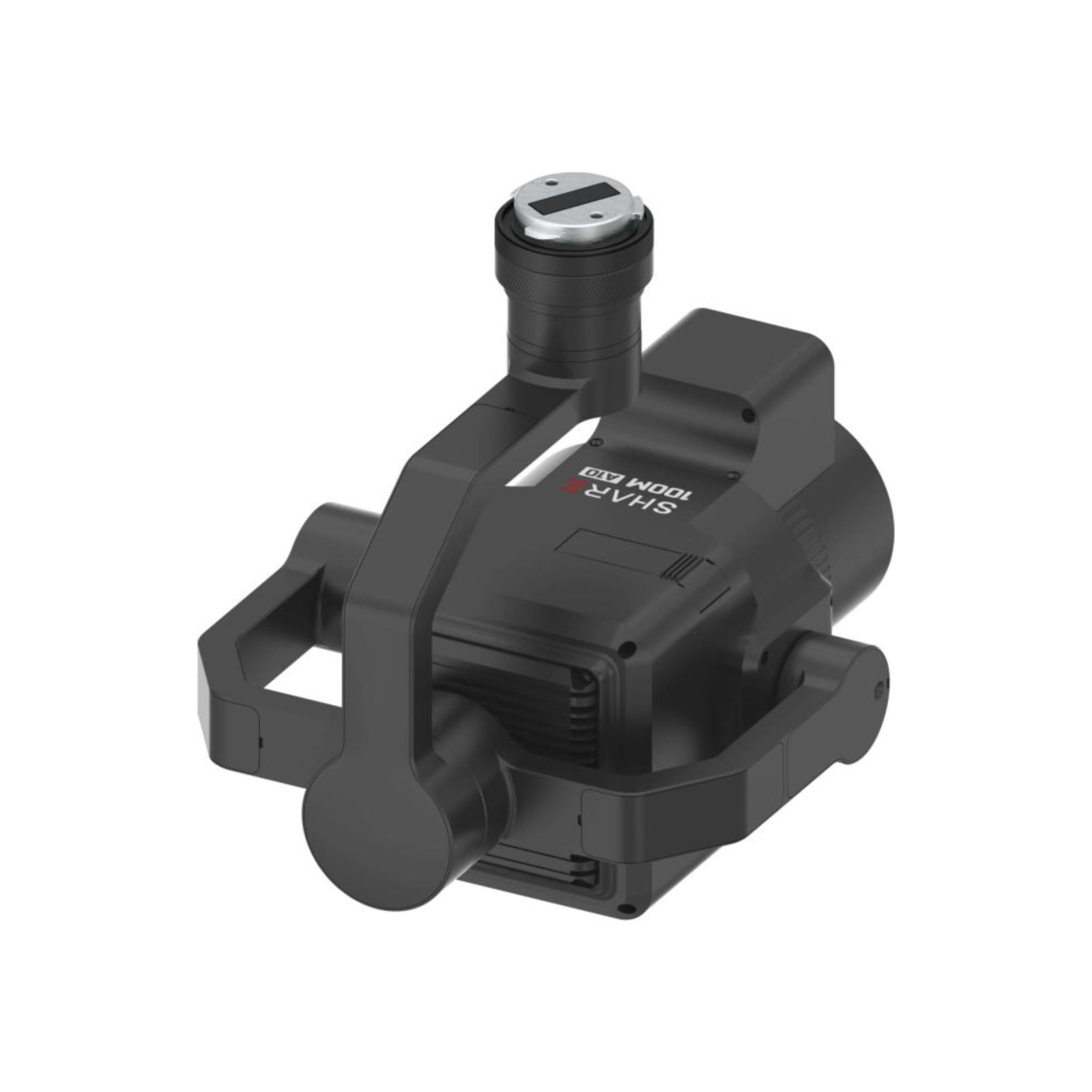

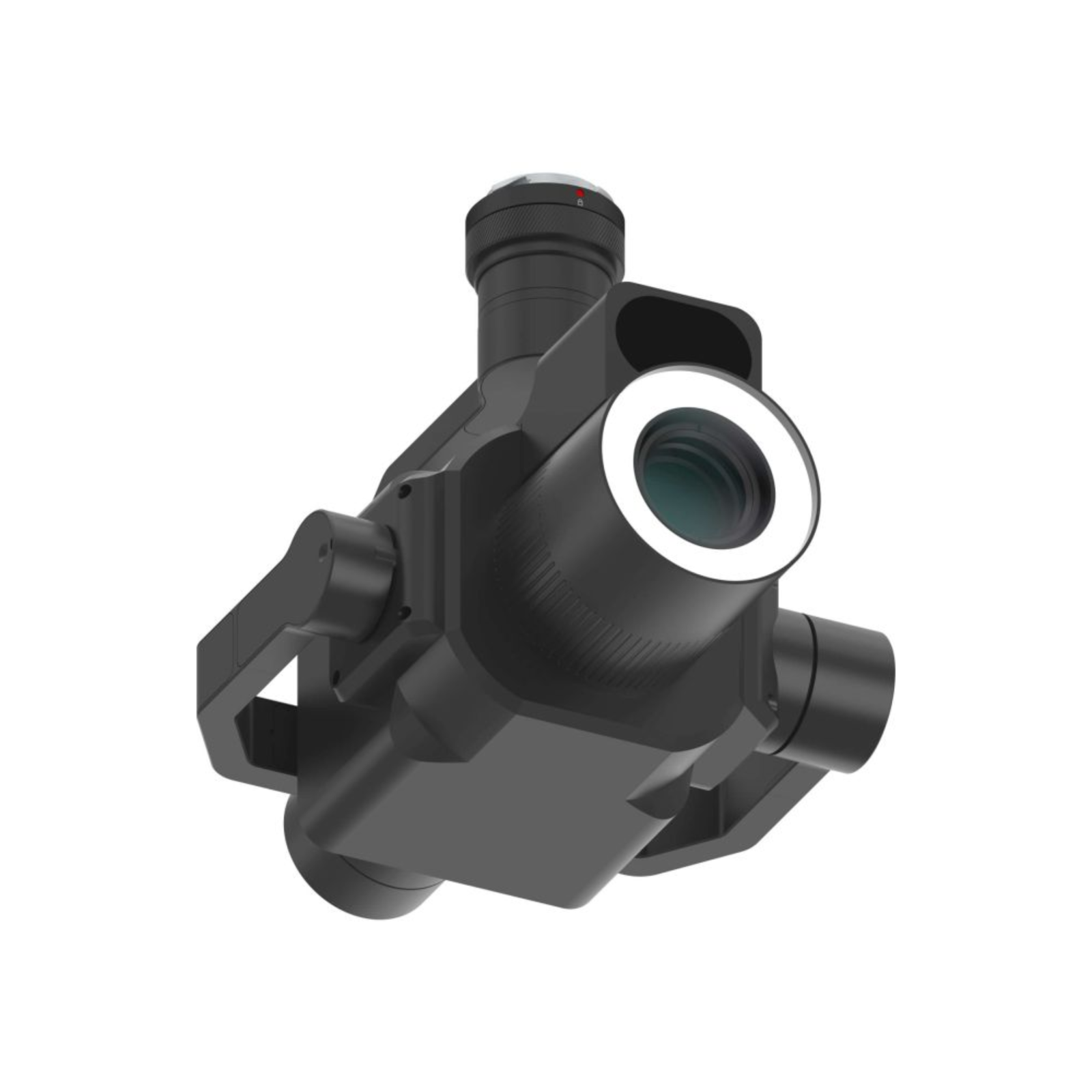

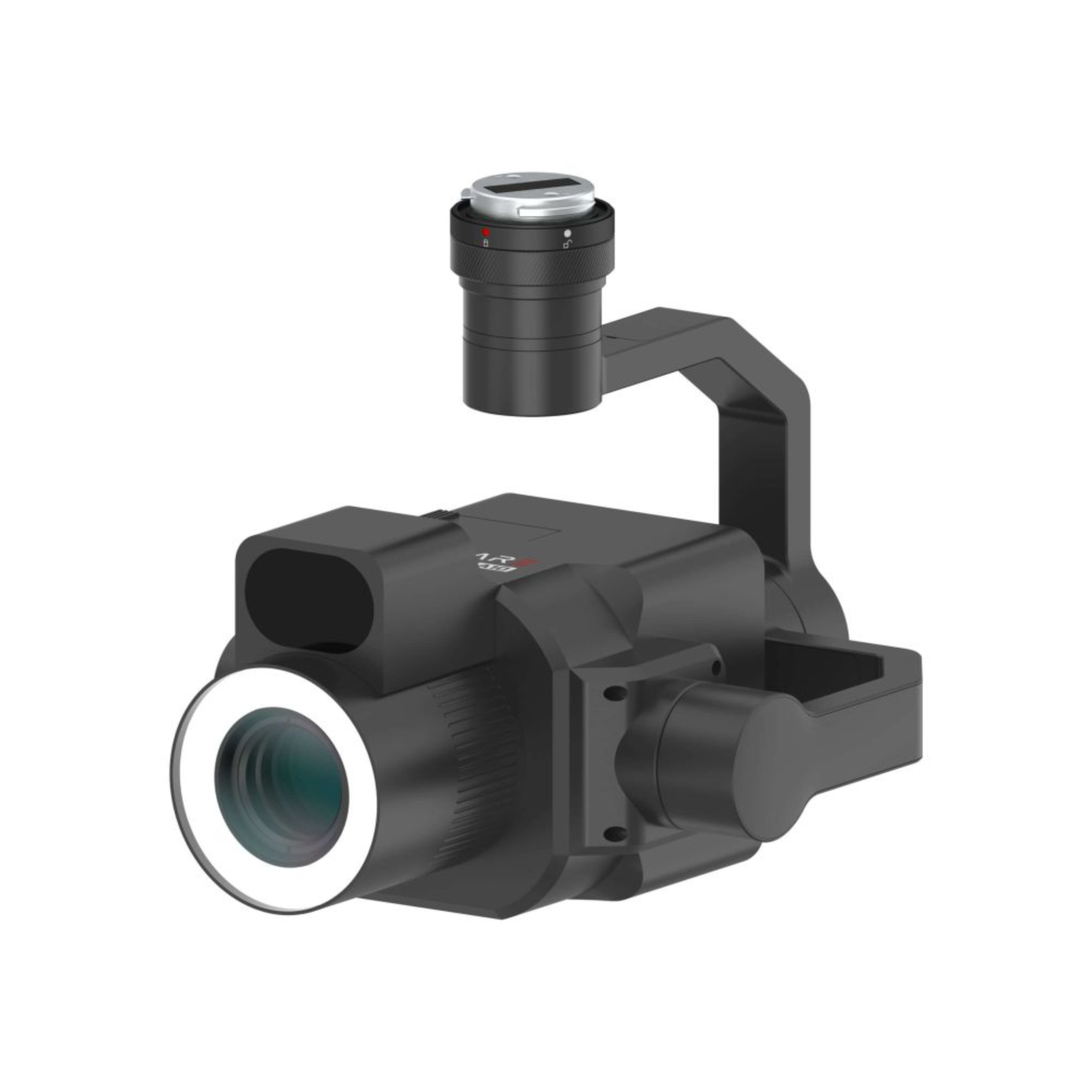

The SHARE 100M A10 is a professional aerial inspection camera equipped with a 102 MP medium-format IMX461 sensor and a 110 mm autofocus lens. It is specifically designed for high-precision inspection applications, providing detailed imagery for complex structures such as bridges and buildings.

The system combines fast autofocus, focusing LiDAR, and a front ring fill light to support precise imaging in a wide range of operating conditions.

In stock

Stock limit

Add to cart

Product Code: C121 Do you need help? 0770531656

Add to wishlist

Description
Video (1)
Reviews (0)

Specifications
Key Features
102 MP Medium-Format IMX461 Sensor	102 MP
110 mm Autofocus Lens	110 mm
Ultrasonic Motor for Focusing	Fast and precise focusing
Optical Design	7 lenses in 3 groups
Aspherical Lenses	Glass
Distortion	Low, for clear and precise images
Image Resolution	Up to 0.1 mm
Focusing Distance	3 m to infinity
LiDAR Focusing	Centimeter-level measurement accuracy within a 10 m range
LiDAR Frequency	Up to 100 Hz
Front Ring-Type Fill Light	Independently adjustable intensity
Development Interface	Enables camera triggering through external signals and integration with inspection software solutions
Video	4K at 30 fps
Storage	2 × 256 GB
Applications
Bridge Inspections	Yes
Building Inspections	Yes
Infrastructure Inspections	Yes
High-Precision Aerial Surveying	Yes
Detailed Structure Capture	Yes
Inspections in Low-Light Conditions	Yes
Image Collection for Technical Analysis	Yes
Technical Parameters
Dimensions Without Gimbal	97 × 103 × 165 mm
Dimensions With Gimbal	161 × 184 × 236 mm
Weight Without Gimbal	836 g
Weight With Gimbal	1,270 g
Protection	IP5X
Supported Aircraft	DJI Matrice 350 RTK and various multirotor and fixed-wing drones
Effective Pixels	102 MP
Sensor	Medium-Format, 43.8 × 32.9 mm
Pixel Size	3.76 μm
Image Size	4:3 (11,648 × 8,736 px)
Focal Length	110 mm
Aperture	F5.6
Shutter Speed	1/200 s – 1/16,000 s
Storage	2 × 256 GB
Video	4K (3840 × 2160), 30 fps
Package Contents
Package Contents	1 × SHARE 100M A10 – 102 MP Medium-Format Aerial Inspection Camera

Product safety information

The SHARE 100M A10 is a medium-format inspection camera with a 102 MP sensor, designed to be mounted on drones (for example the DJI Matrice 350 RTK). It weighs approx. 836 g without the gimbal (1270 g with the gimbal), has an IP5X protection rating and includes a focus lidar and a front ring fill light. It is intended for professional use only, by trained persons. It is not a toy.

Warnings:

Read the manufacturer's documentation before use.
Use the equipment only with a compatible drone, with original cables and accessories.
Before every flight, check the equipment for damage and make sure it is mounted correctly on the drone. The equipment weighs up to 1270 g, so observe the drone's payload capacity.
The protection rating is IP5X (dust protection, not water protection). Do not expose the equipment to water, rain or moisture and do not immerse it.
The ring fill light and the focus lidar emit light. Do not look directly into them at short distance and do not point them at the eyes of people or animals.
The equipment may heat up during operation. Do not cover it and do not touch it immediately after use.
Do not open, disassemble or modify the equipment. Do not use it if it is damaged.
The camera can record images and videos of people. Comply with privacy and personal data protection law (including GDPR) and use it only during authorized operations.
Comply with aviation law in your country.
Keep out of reach of children.

Manufacturer: SHARE3DCAM LIMITED. Web: www.share3dcam.com. Read the documentation supplied by the manufacturer with the product.
