PSDK 102S V3

Name: PSDK 102S V3
Brand: Share UAV
SKU: C105
Price: 17468.07 EUR
Availability: InStock

17.468,07 EUR

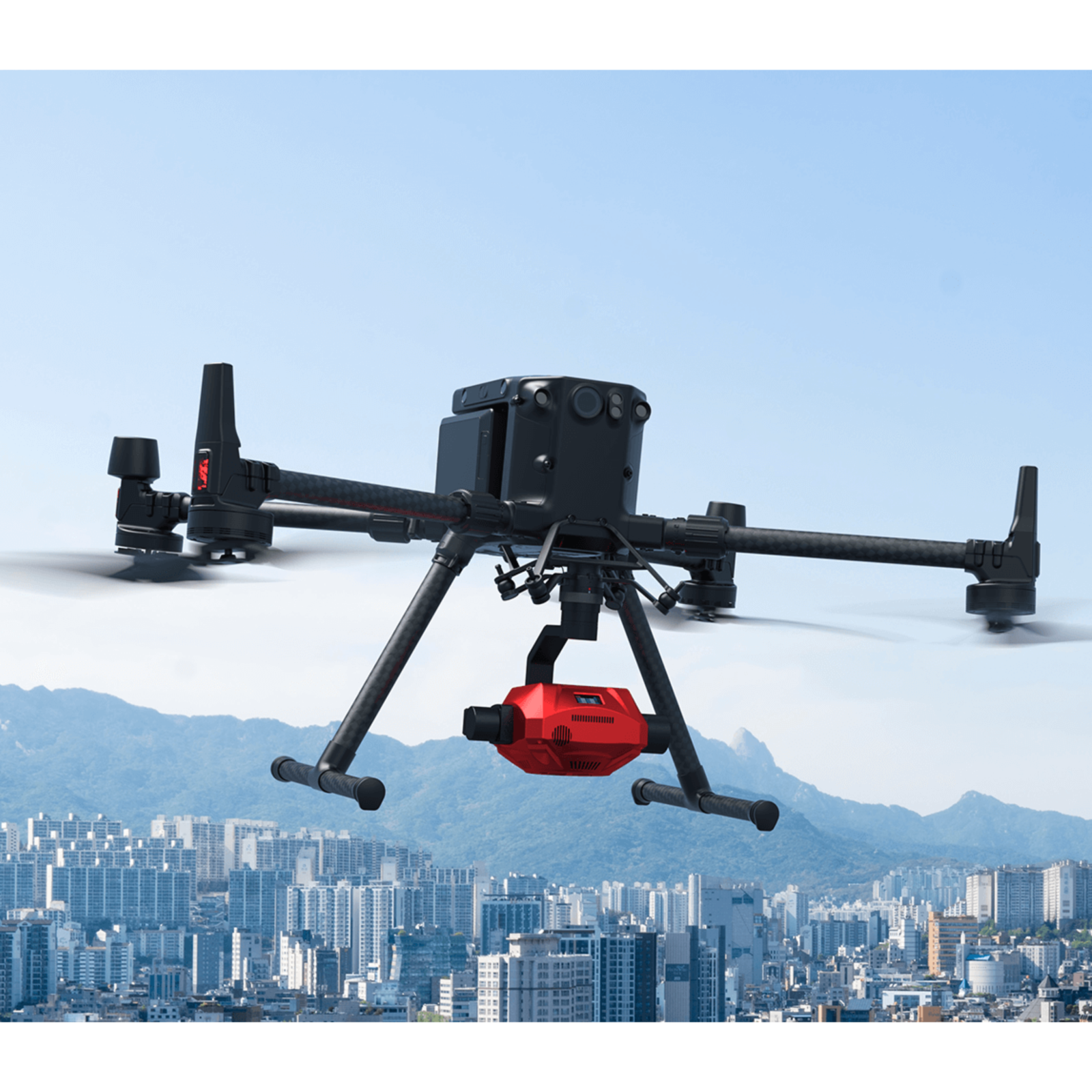

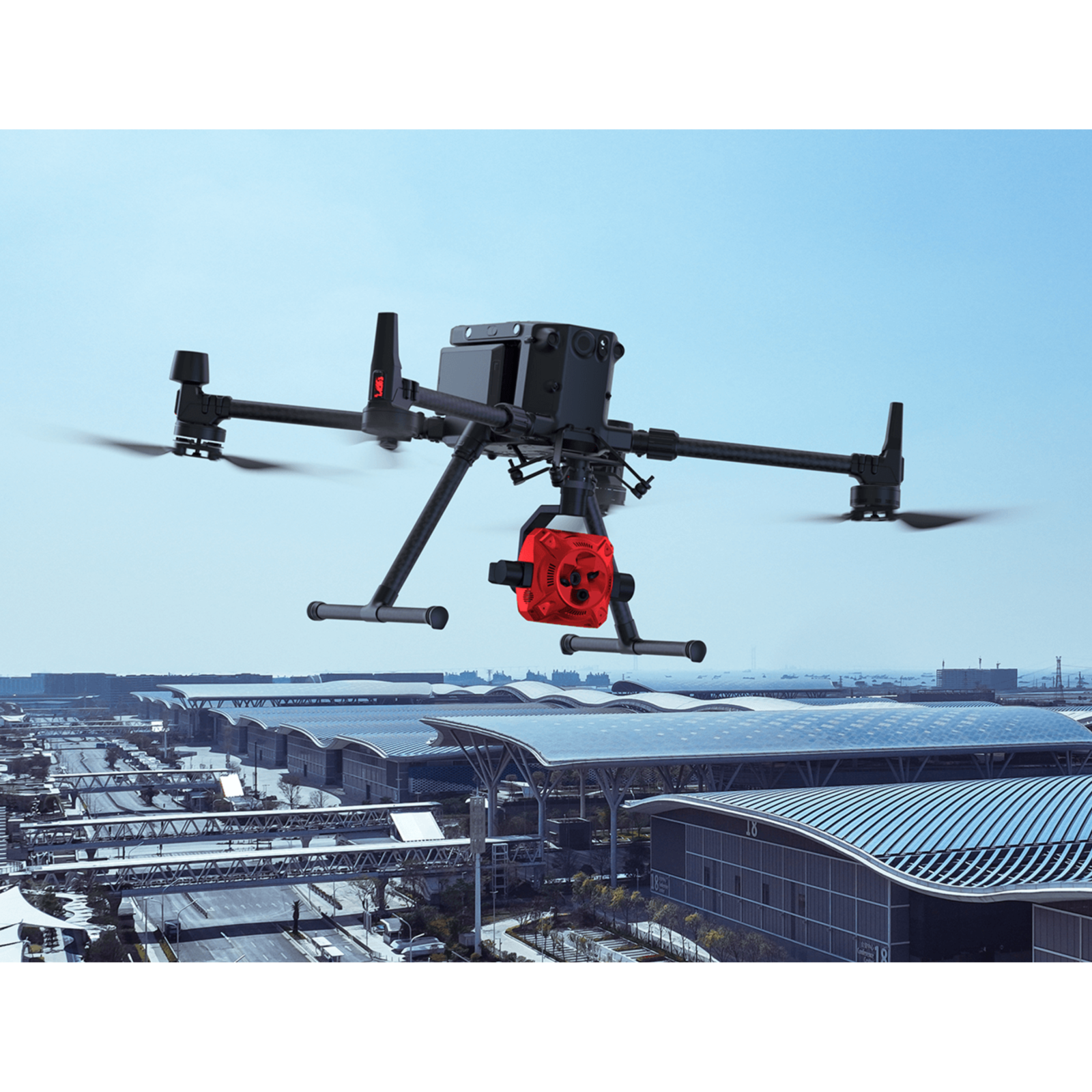

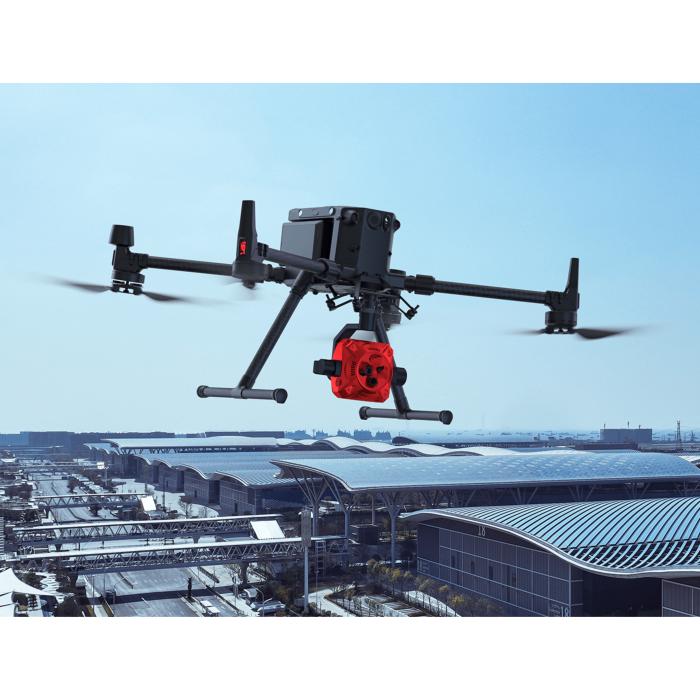

The PSDK 102S V3 is a professional mapping camera equipped with a 3-axis stabilized gimbal, global shutter, and an APS-C sensor, designed for high-precision photogrammetry, aerial mapping, and 3D modeling applications.

The system allows camera parameter control through DJI Pilot, instant recording of POS information and camera parameters in photographs, and multi-angle image capture.

In stock

Stock limit

Add to cart

Product Code: C105 Do you need help? 0770531656

Add to wishlist

Description
Video (1)
Reviews (0)

Specifications
3-Axis Stabilized Gimbal	Ensures camera stability and allows image capture from multiple angles.
S-GS Global Shutter	Reduces distortion effects and is designed for an extended lifespan.
APS-C Sensor	23.1 × 15.4 mm
Effective Pixels	≥25 MP per lens, 125 MP total
Shutter	Mechanical / electronic
TimeSync 2.0	Microsecond-level synchronization and precise recording of POS information in photos.
S-OPG System	Image control system for surveying and mapping.
Lenses	25 mm for nadir (normal incidence) and 35 mm for oblique photography.
Oblique Angle	45°
Storage	1280 GB
Mounting Interface	DJI SKYPORT
Power Supply	DC 12–50 V
Applications
Macro Photogrammetry	Macro Photogrammetry
3D Modeling	3D Modeling
High-Resolution Aerial Mapping	High-Resolution Aerial Mapping
Oblique Photography	Oblique Photography
Terrain-Following Scenarios	Terrain-Following Scenarios
Surface and Slope Modeling	Surface and Slope Modeling
Precision Surveying and Mapping	Precision Surveying and Mapping
Technical Specifications
Dimensions	120 × 120 × 83 mm
Dimensions with Gimbal	171 × 192 × 185 mm
Weight	610 g
Weight with Gimbal	1,100 g
Operating Temperature	-20 °C to +65 °C
Storage Temperature	-20 °C to +50 °C
Pixel Size	3.76 μm
Image Size	6144 × 4096 px
Minimum Focus Distance	Down to 10 m for top-down view
Planimetric Accuracy	3 cm
Altimetric Accuracy	5 cm
Ground Resolution	3 cm
Flight Speed	15 m/s
Forward Overlap	80%
Side Overlap	70%
ISO Range	50–200 / 50–400 / 50–640 / 50–800 / 50–1000 / 50–1600
Shutter Speed	1/500 – 1/1250 s
Aperture	F5.6
Photo Interval	≥0.5 s
Gimbal Rotation	Pitch -120° to +45°, Roll ±45°, Yaw ±160°
Package Includes
Package Contents	1 × PSDK 102S V3 1 × 3-Axis Stabilized Gimbal

Product safety information

The SHARE PSDK 102S V3 is a 5-sensor oblique aerial camera with over 25 MP per sensor (over 125 MP in total), a 35 mm focal length for the oblique images and 25 mm for the down-view, a global shutter, 1280 GB of storage and a 3-axis stabilized gimbal. It weighs approx. 1041 g with the gimbal (580 g camera body without gimbal). It is powered by an external 12–50 V DC supply and mounts on DJI Matrice 300/350 RTK drones through the DJI SkyPort interface, as well as on other multi-rotor or fixed-wing drones. It is intended for professional use only, by trained persons. It is not a toy.

Warnings:

Read the user manual and warranty card supplied with the product before use.
Power the equipment only within the stated voltage range (12–50 V DC) and use only original cables and accessories.
Before every flight, check the equipment and gimbal for damage and make sure they are fixed correctly on the drone. Observe the drone's payload capacity.
Remove the lens cover before flight and do not block the gimbal's movement.
Do not expose the equipment to water, rain or excessive moisture and do not immerse it. Observe the operating temperature range given by the manufacturer.
The equipment may heat up during operation. Do not cover it and do not touch it immediately after use.
Do not touch the lenses and sensors with your fingers. Clean the lenses only with the supplied cloth or with materials intended for optical equipment.
Do not open, disassemble or modify the equipment. Do not use it if it is damaged.
The camera can record images of people. Comply with privacy and personal data protection law (including GDPR) and use it only during authorized operations.
Comply with aviation law in your country.
Keep out of reach of children.
