DJI AGRAS T70P/T100 INTELLIGENT POWER SUPPLY (C12000)

1.724,86 EUR

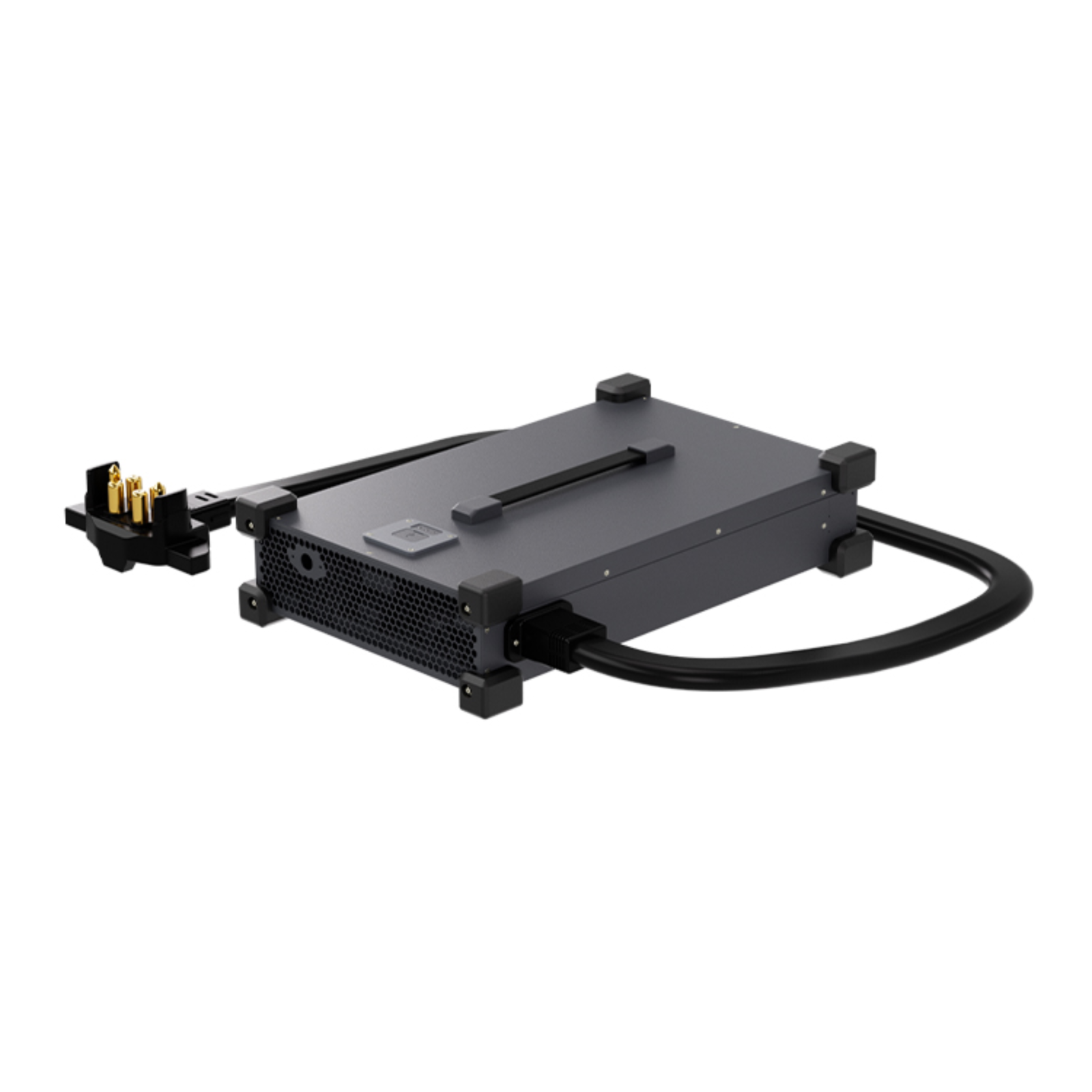

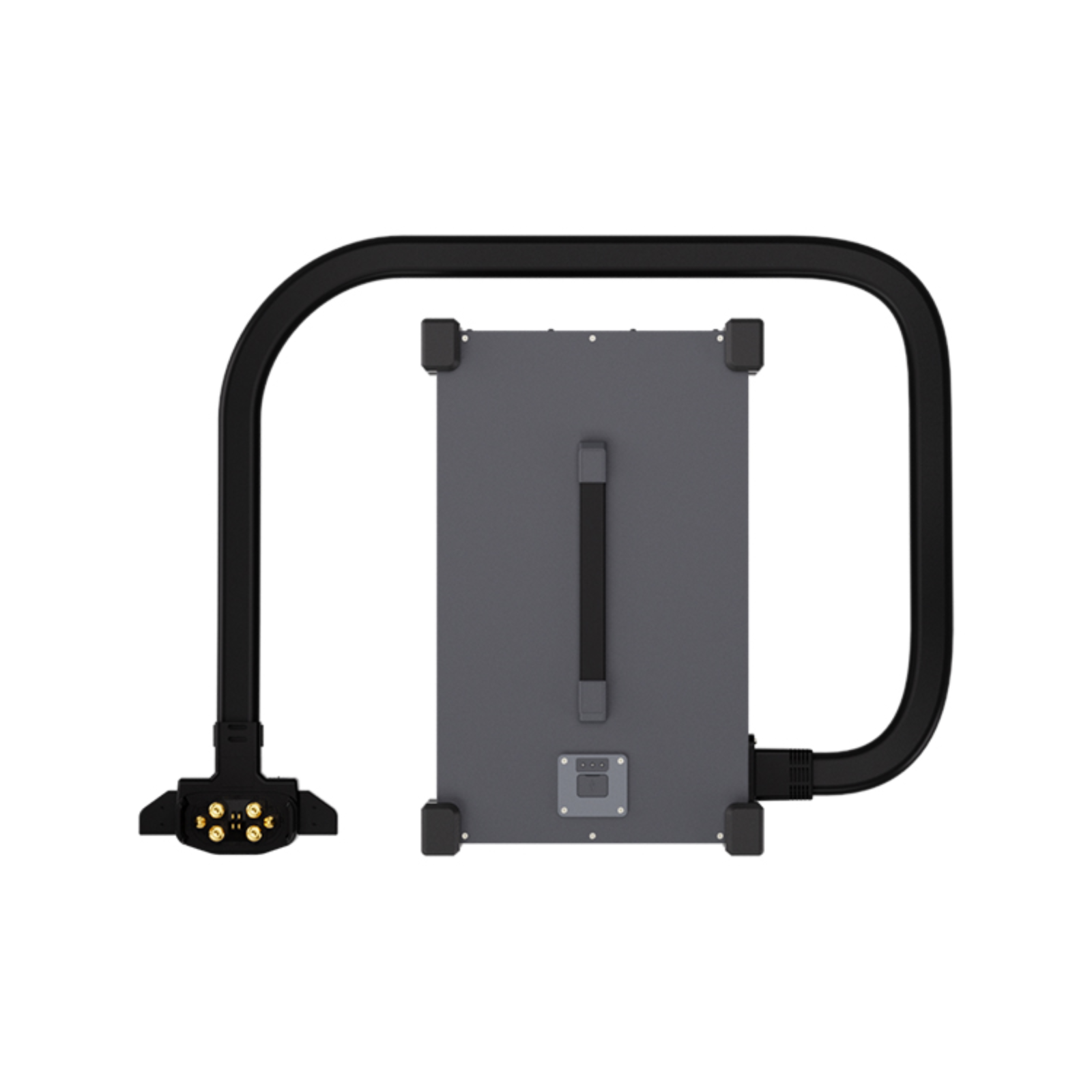

The DJI C12000 Intelligent Charger is a high-power charging solution designed for DJI Agras T100 and T70 agricultural drones. It supports both three-phase and single-phase power input, providing fast and efficient charging for compatible batteries.
With up to 12,000 W of power when using three-phase input and up to 3,000 W with single-phase input, the C12000 is designed to reduce battery charging time and maintain operational efficiency during agricultural operations. The system includes protection against overvoltage, undervoltage, overheating, short circuits, and fan blockage.

In stock

Stock limit

Add to cart

Product Code: C49 Do you need help? 0770531656

Add to wishlist

Description
Reviews (0)

Specifications
General
Models	CSX901-12000, CSX901-12000H
Dimensions	456 × 291 × 107 mm
Weight	13.13 kg
Operating temperature	0 °C to 40 °C
Compatible batteries	DB1580, DB2160, DB2100
Compatible drones	DJI Agras T70P, DJI Agras T100
Fast charging
Input	CSX901-12000: 175–520 V AC, three-phase, 50/60 Hz, max 22 A CSX901-12000H: 380–480 V AC, three-phase, 50/60 Hz, max 22 A
Output	CSX901-12000: 62 V DC, 194 A, max 12000 W CSX901-12000H: 52–62 V DC, max 230 A, max 12000 W
Required power supply	380 V three-phase, at least 15 kW
Recharge time (DB2160, 30% → 95%)	8–9 minutes
Slow charging
Input	CSX901-12000: 200–264 V AC, single-phase, max 16 A CSX901-12000H: 220–240 V AC, single-phase, max 16 A
Output	CSX901-12000: 62 V DC, 48 A, max 3000 W CSX901-12000H: 52–62 V DC, max 58 A, max 3000 W
Required power supply	220 V single-phase, at least 3.6 kW

Product safety information

The DJI C12000 Intelligent Power Supply is a high-power (up to 12000 W), mains-powered electrical device for charging the batteries of the DJI Agras T70P and T100 agricultural drones. It is intended for professional use only, by trained persons.

Warnings:

Read the official guide before first use.
Fast-charging connections must be made only by qualified electricians wearing insulated gloves. Three-phase wiring must comply with local regulations.
Place the unit on a flat, stable surface with at least 50 cm of ventilation space. Do not place it on blankets or carpets or leave it near flammable materials.
Keep the unit away from direct sunlight, rain, moisture, heat, water, flammable gases and corrosive substances. Keep at least 30 cm between the unit and the batteries being charged.
Do not unplug AC or charging cables during operation. Switch off the circuit breaker before disconnecting the fast-charging cable. Remove the batteries after charging.
Do not connect the ground wire to a neutral or live terminal.
Do not move or carry the unit by its charging cable. Handle connectors gently.
The operating temperature is 0–40 °C.
In case of fire, use a dry powder extinguisher, not a liquid one.
Disconnect power before cleaning connectors. Clean the dustproof cover regularly.
A used device must not be thrown in household waste. Hand it in at a collection point for waste electrical and electronic equipment (WEEE).
Keep out of reach of children.
