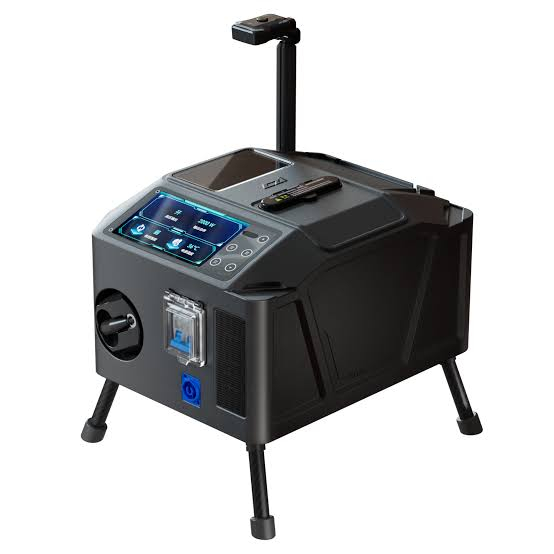

CZI TK3 TETHERED POWER SYSTEM
![CZI TK3 - Portable Tethered Power System [1]](https://gomagcdn.ro/domains3/zerovec.ro/files/product/original/czi-tk3-tethered-power-system-974369.jpeg "CZI TK3 - Portable Tethered Power System [1]")
The CZI TK300 Backpack Tethered Power System is a portable tethered power system designed for the DJI Matrice 300 and Matrice 350 RTK drones, intended for long-duration operations.
The system converts single-phase or three-phase AC power into high-voltage DC power and delivers it to the drone through a high-performance nickel-alloy power cable. When used together with backup batteries, it can provide up to 24 hours of continuous operation, while maintaining safe flight conditions.
The TK300 tethered system consists of two main components: an airborne power supply unit mounted on the drone and an integrated ground power station with a manual/automatic cable winding system.
The system converts single-phase or three-phase AC power into high-voltage DC power and delivers it to the drone through a high-performance nickel-alloy power cable. When used together with backup batteries, it can provide up to 24 hours of continuous operation, while maintaining safe flight conditions.
The TK300 tethered system consists of two main components: an airborne power supply unit mounted on the drone and an integrated ground power station with a manual/automatic cable winding system.
Product Code:
C167
Do you need help?
0770531656
- Description
- Video (1)
- Reviews (0)
| Specifications | |
|---|---|
| Operating Time | Up to 24 hours with backup batteries |
| Power System | Tethered |
| Power Conversion | Conversion of AC power to high-voltage DC |
| Power Transmission | Power transmission through a nickel-alloy cable |
| Design | Portable backpack design |
| Weight | Approximately 28 lb |
| Installation | Quick installation, designed for single-user operation |
| Protection | IP54 |
| Monitoring and Display | Intelligent monitoring and display |
| Cable Management | Automatic cable deployment and winding system |
| Automatic Winch | Manages cables up to 100 m |
| Cable Protection | Reduces impact and cable bending during operations |
| System Components | |
| Aerial Power Unit | Mounted on the drone |
| Ground Power Station | Integrates the power supply, high-power power cable and automatic winch |
| Applications | |
| Application | Long-duration aerial monitoring |
| Application | Surveillance |
| Application | Emergency lighting |
| Application | Emergency response operations |
| Application | Search and rescue |
| Application | Missions requiring continuous flight |
| Application | Monitoring of large areas |
| Compatibility | |
| Compatible Product | DJI Matrice 300 RTK |
| Compatible Product | DJI Matrice 350 RTK |
| Package Contents | |
| Included Product | 1 × CZI TK300 Backpack Tethered Power System |
