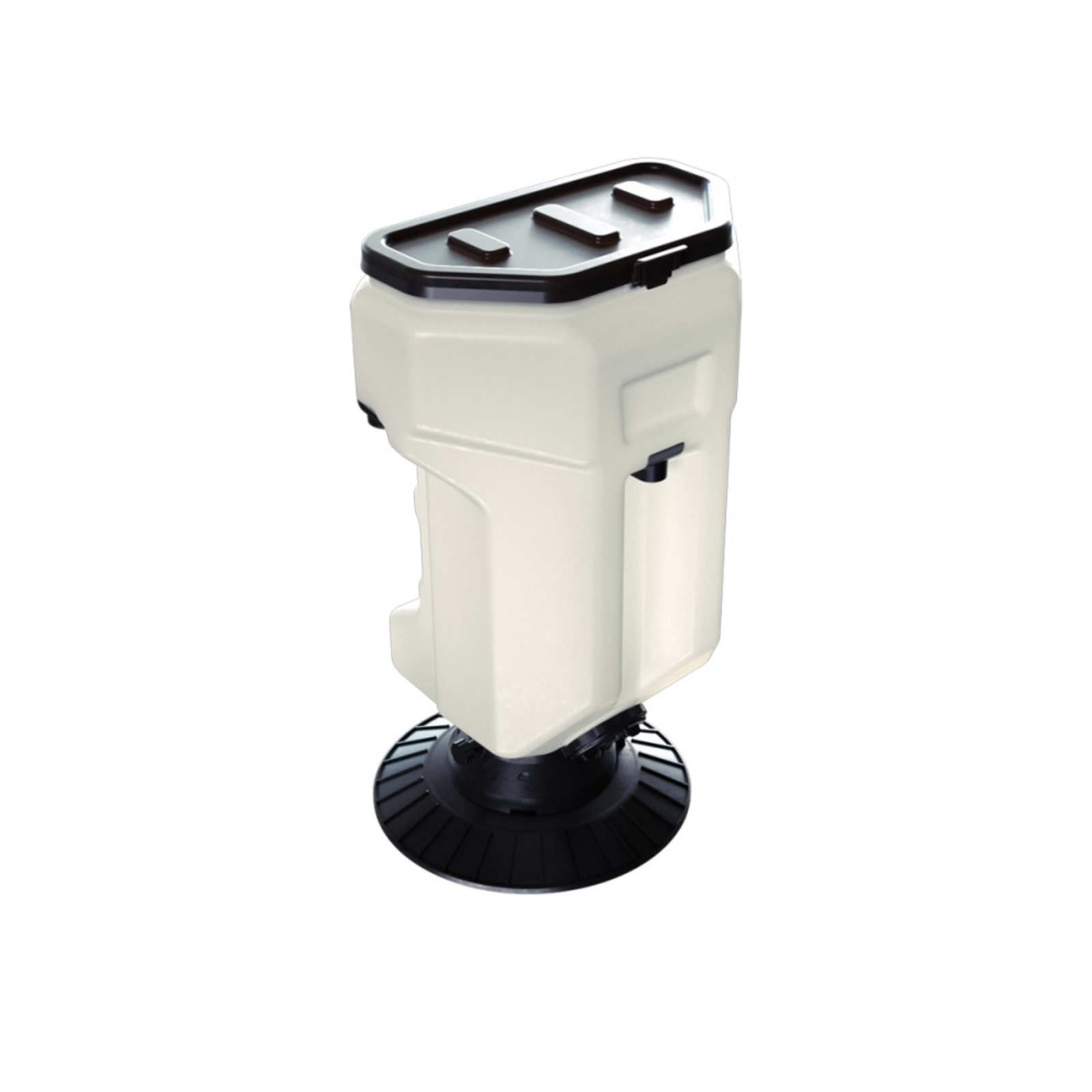

DJI AGRAS T25P SPREADING SYSTEM

The DJI Agras T25P Spreading System is a spreading system for dry materials (granules of 0.5–10 mm, depending on the screw feeder fitted), intended exclusively for the DJI Agras T25P drone. It has a 30 L tank and a maximum internal load of 25 kg, within the payload recommended by the DJI Agras app. The recommended spreading range is 3–8 m. The ingress protection rating is IP67 (IEC 60529) under stable laboratory conditions only and may decrease with aging and wear. It is intended for professional use only, by trained persons. It is not a toy.

Warnings:

• Read the official DJI document and all safety guidance before use.
• Use the system only with the DJI Agras T25P whose firmware supports the spreading system. Do not use it with other products or for non-agricultural purposes.
• Use only dry materials of the specified diameter. Other materials can reduce performance and damage the system.
• Remove large caked fertilizer clumps, woven bags, straw, gravel and other foreign objects, which can cause blockages.
• Do not exceed the recommended payload. The maximum depends on takeoff weight.
• Remove the Intelligent Flight Battery before installation. Check that the spinner disc will not damage cables or other parts.
• Tighten the hose nuts in their original positions so they are not lost. Cap all removed cables and connectors with their original covers.
• Connect cables carefully and securely, and avoid damaging them.
• Before each use, check that the screw feeder turns smoothly and the spinner disc runs normally.
• When replacing the screw feeder, protect the motor cable and clean the residue. When using screw feeder S, replace the spinner disc with the ringed version for even spreading.
• The system has sharp and moving mechanical parts that can cause injury. Handle it carefully and keep a safe distance during operation.
• Do not disassemble factory-installed parts unless the DJI guide allows it. Doing so affects ingress protection.
• The IP67 rating can decline after collisions, if seals are cracked or if the waterproof covers are loose. Water damage is not covered by warranty.
• Do not open or modify the equipment, and do not use it if it is damaged.
• Comply with aviation law in your country.
• Keep out of reach of children.

Manufacturer: SZ DJI Technology Co., Ltd., Shenzhen, China. EU contact: DJI GmbH, Industriestrasse 12, 97618 Niederlauer, Germany.
