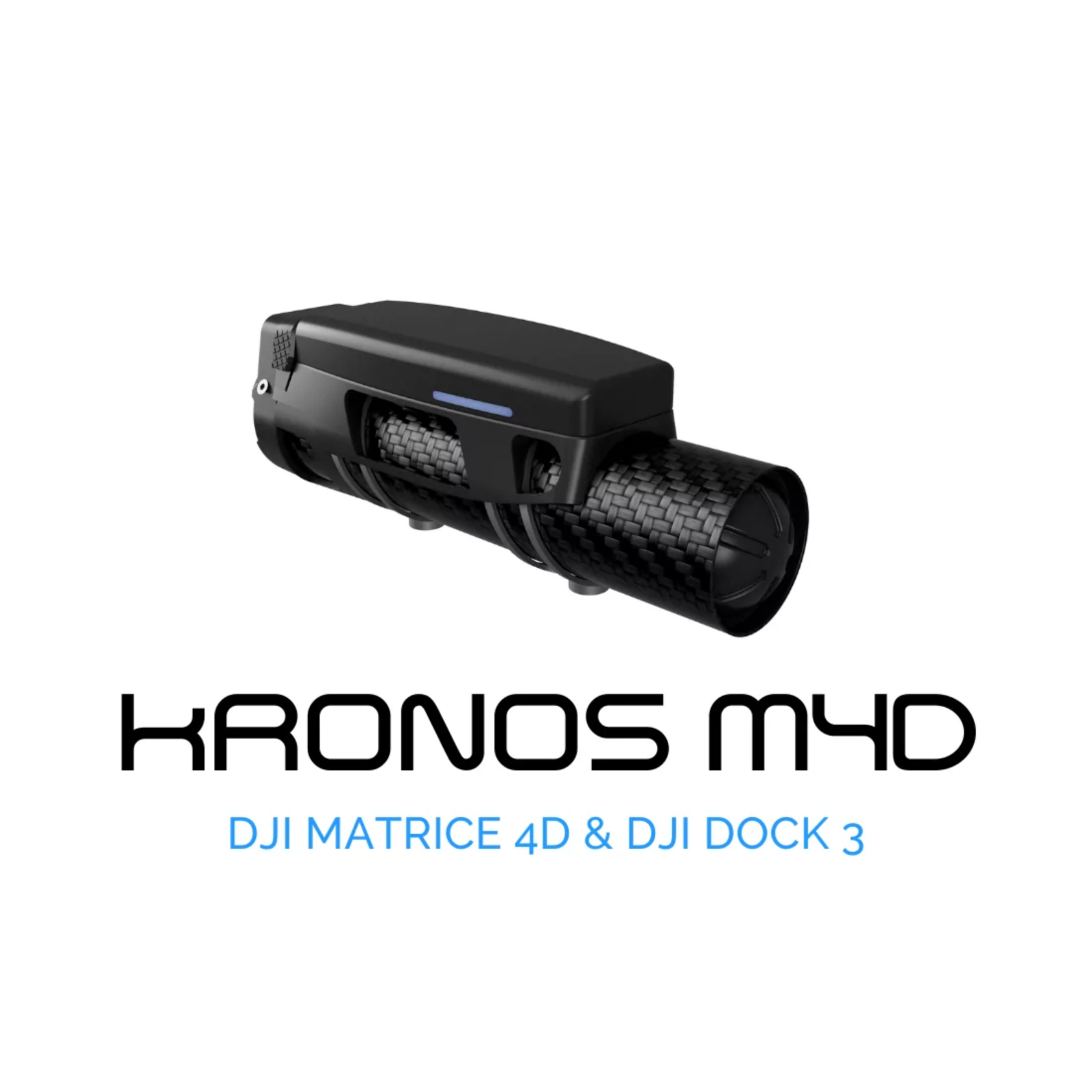

KRONOS MOC M2 PARACHUTE WITH INTERNAL FTS AND GEOLOCK MOC 2511 FOR DJI MATRICE 4D

The Dronavia Kronos M4D kit for the DJI Matrice 4D is a safety system made up of a parachute recovery system (PRS, MoC 2512-M2) with a pre-armed POD and an internal flight termination system (FTS, MoC 2511), with the Geolock option that confines the drone to a predefined geographic area. It converts the drone to EASA Class C5, for STS-01, STS-02 and SORA/PDRA scenarios. It deploys in 0.27 s, autonomously or manually with the Klick remote, and is re-armed by exchanging the POD. It operates from −5 °C to 40 °C and is powered by the drone. It is intended for professional use only, by trained persons. It is not a toy.

Warnings:

• Read the installation instructions and user guide supplied by the manufacturer before use.
• The internal FTS must be installed by a certified technician in an approved workshop. Do not attempt to install or modify the system yourself.
• Triggering the FTS ends the drone's flight and opens the parachute. The drone falls or descends uncontrolled. Use the system only in areas where the risk to people and property has been assessed and accepted.
• If you use the Geolock option, the drone triggers the FTS automatically when it leaves the defined geographic area. Check and test the defined area before every mission.
• The POD contains a pre-armed parachute with an ejection mechanism. Do not open, disassemble, modify or trigger it outside authorized use.
• On deployment, the parachute is ejected rapidly. Keep hands, face and other people away from the parachute exit.
• A used POD must be replaced with a new one, according to the manufacturer's instructions. Return the used POD according to the supplier's terms.
• Before every flight, check that the system is mounted correctly, connected correctly and shows no damage.
• The parachute does not eliminate the risk of injury or damage. Keep people and property away from the flight and landing areas and observe the minimum effective height given by the manufacturer.
• Manual deployment is done only with the Klick remote. The system is not yet compatible with all DJI FlightHub 2 functions.
• The annual inspection by the manufacturer is mandatory to keep the warranty and certification valid.
• Before any DJI repair, the kit must be removed by an approved workshop.
• Use the equipment only with the compatible drone (DJI Matrice 4D) and original Dronavia components.
• Observe the operating temperature (−5 °C to 40 °C).
• Comply with aviation law in your country.
• Keep out of reach of children.

Manufacturer: Dronavia. Read the documentation supplied by the manufacturer with the product.
