SHARE 105S PRO RENTAL
![SHARE 105S PRO RENTAL [1]](https://gomagcdn.ro/domains3/zerovec.ro/files/product/original/inchiriere-share-105s-pro-341708.png "SHARE 105S PRO RENTAL [1]")
![SHARE 105S PRO RENTAL [2]](https://gomagcdn.ro/domains3/zerovec.ro/files/product/original/inchiriere-share-105s-pro-238641.png "SHARE 105S PRO RENTAL [2]")
![SHARE 105S PRO RENTAL [3]](https://gomagcdn.ro/domains3/zerovec.ro/files/product/original/inchiriere-share-105s-pro-753459.png "SHARE 105S PRO RENTAL [3]")

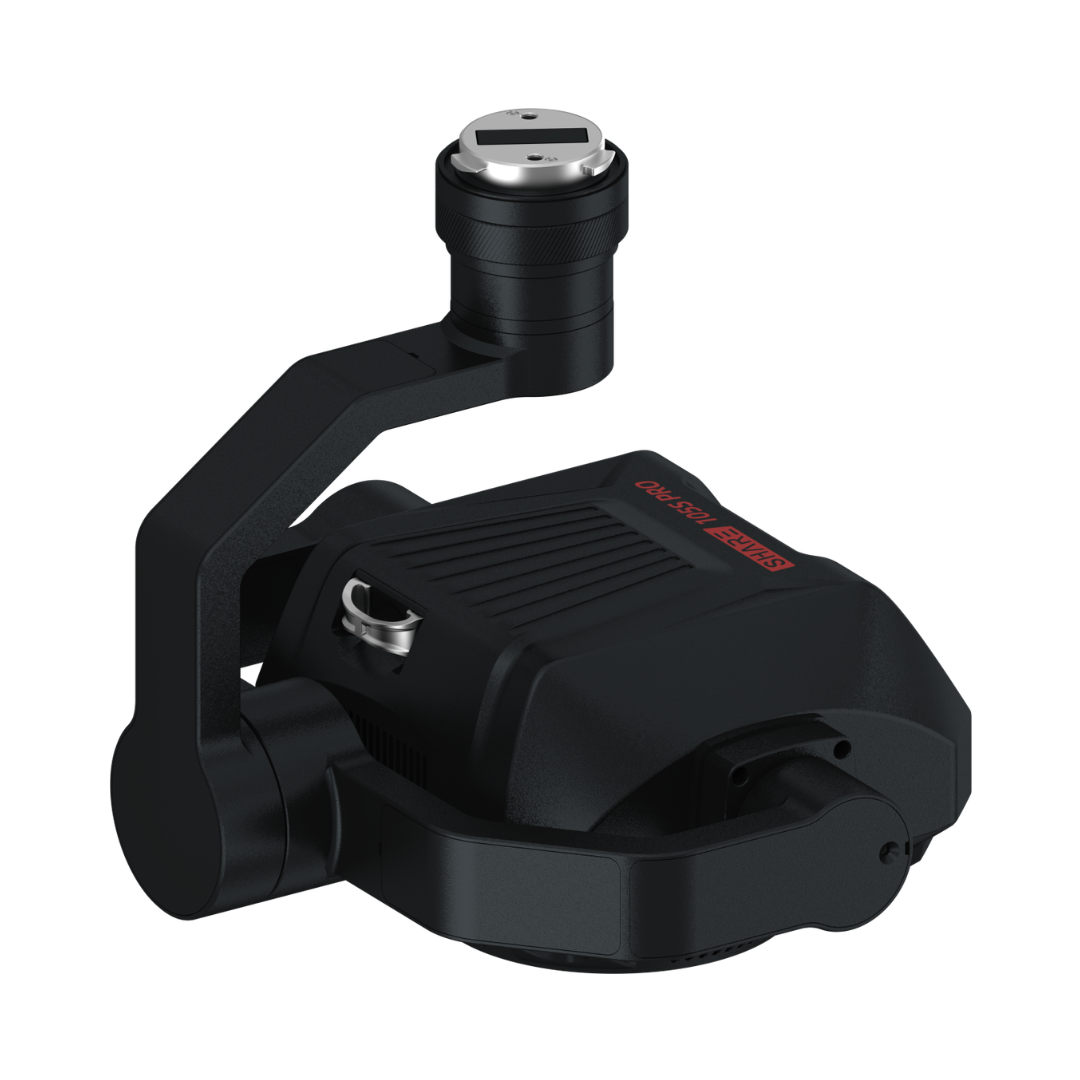

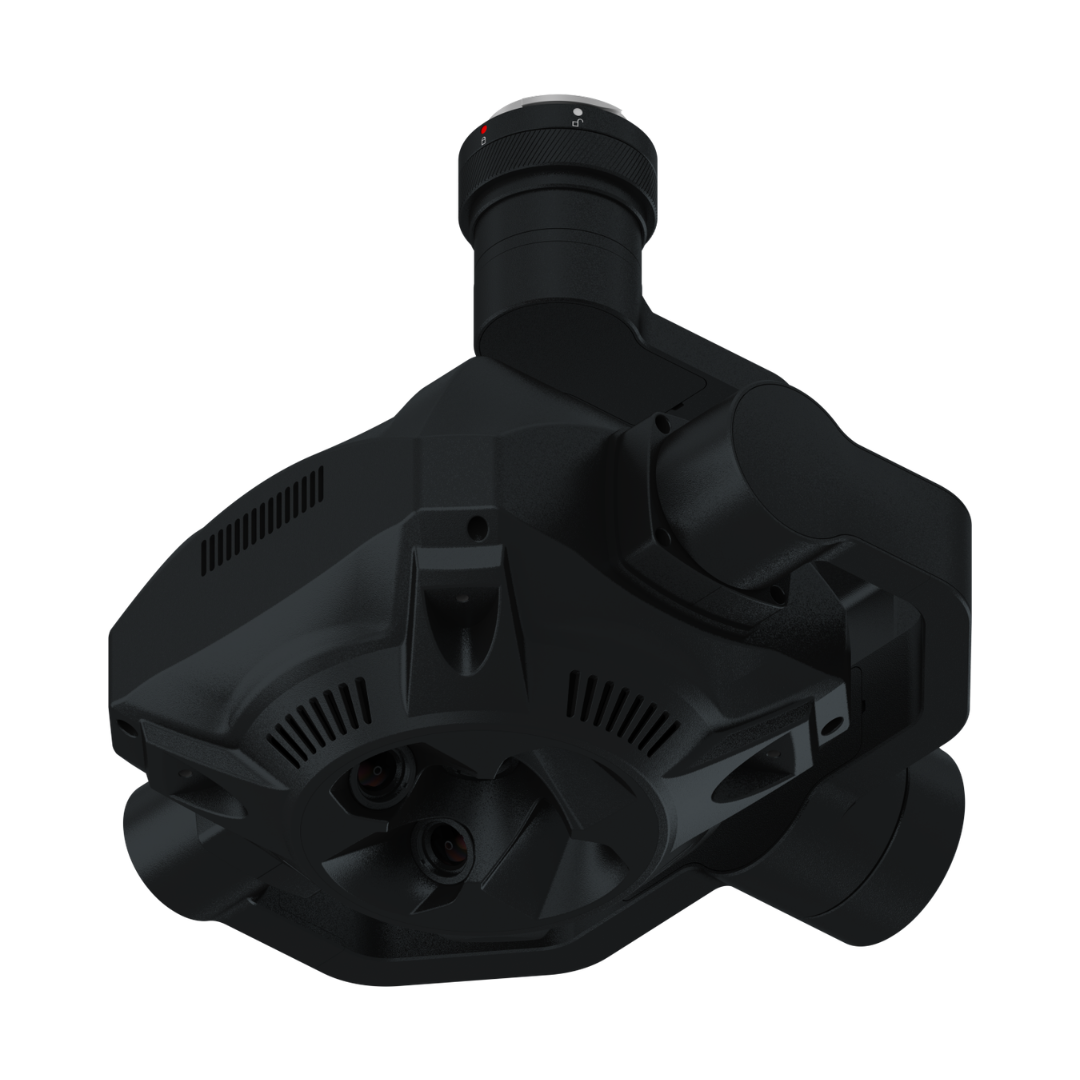

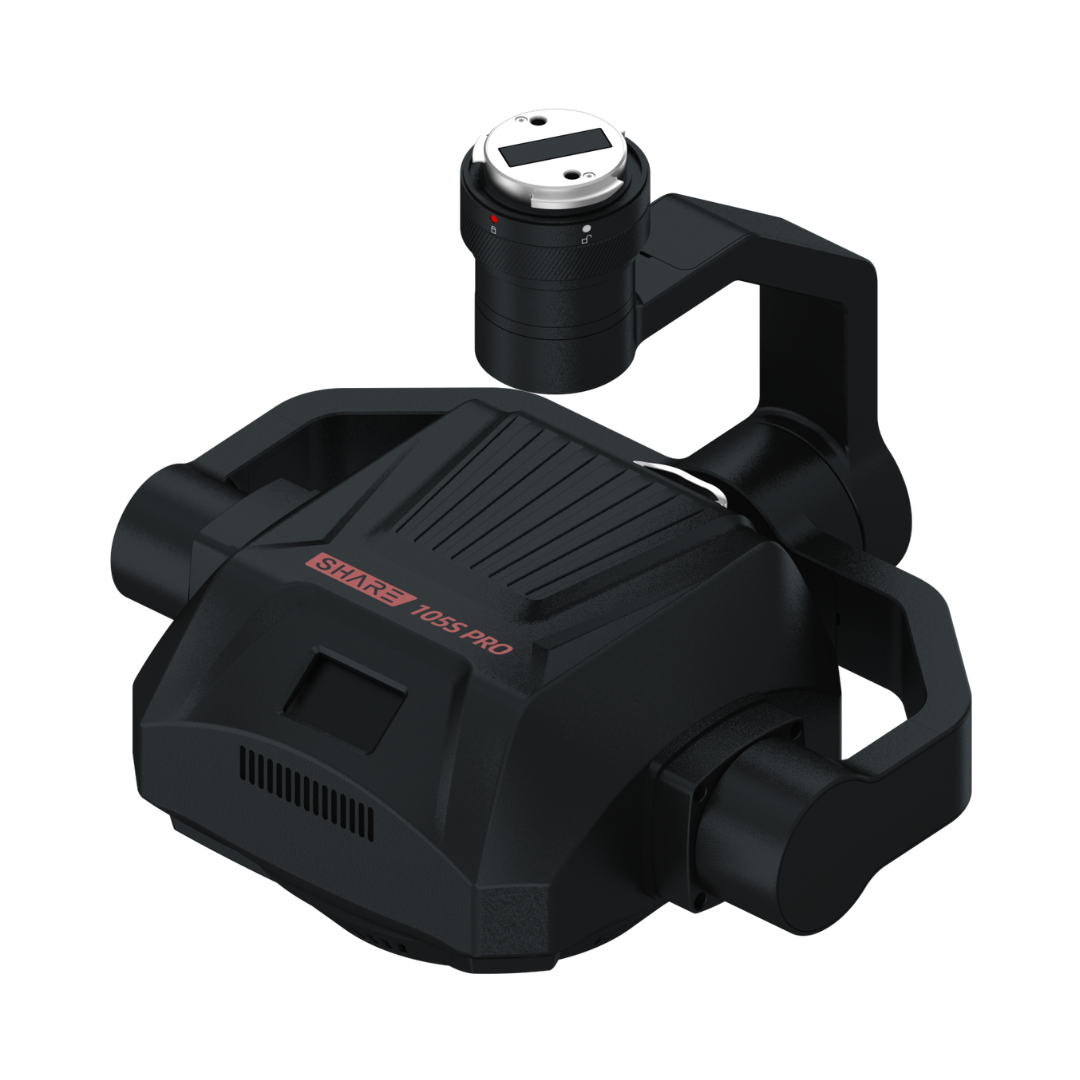

The SHARE 105S PRO is a professional 5-lens oblique aerial mapping camera with a total resolution of over 130 MP. It is designed for aerial surveying and 3D mapping, from rural and urban area mapping to high-precision building modeling and large-scale digital twin projects.
The camera is specifically designed for the DJI Matrice 400, with hardware, firmware, and software communication protocol integration through the SkyPort interface.
The camera is specifically designed for the DJI Matrice 400, with hardware, firmware, and software communication protocol integration through the SkyPort interface.
Ediție:
Product Code:
C406
Do you need help?
0770531656
- Description
- Reviews (0)
| Specifications | |
|---|---|
| 5 Lenses | 4 × 35 mm oblique + 1 × 25 mm nadir |
| Total Resolution | over 130 MP |
| Sensor | 23.5 × 15.7 mm |
| Pixel Size | 3.76 × 3.76 μm |
| Recommended Equipment | DJI Matrice 400, as well as multirotor and fixed-wing drones |
| Flight Speed | supports data collection operations at speeds of up to 25 m/s on DJI Matrice 400 |
| Live Video Transmission | supports synchronized video streaming up to 4K/1080P, with 1-camera or 5-camera display |
| Image Processing Chip | advanced processing for improved image consistency, modeling accuracy, and adaptability to lighting conditions |
| Construction | CNC-machined aerospace-grade magnesium alloy body |
| Storage | two industrial-grade SSD modules, with a total indicated capacity of 2 TB |
| Copy Speed | over 1 GB/s |
| Interfaces | DJI SkyPort / universal interface / USB-C |
| Power Supply | DC 12–50 V |
| Technical Parameters | |
| Sensor Size | 23.5 × 15.7 mm |
| Pixel Size | 3.76 × 3.76 μm |
| Effective Pixels | over 130 million |
| Focal Length | 4 × oblique camera: 35 mm 1 × nadir camera: 25 mm |
| Storage | 1280 GB industrial storage hard drive according to the provided specification |
| Shutter Life | 500,000 actuations |
| Power Supply | DC 12–50 V |
| Interface | DJI SkyPort / universal interface / USB-C |
| Applications | |
| Topographic Mapping | Topographic Mapping |
| Urban 3D Mapping | Urban 3D Mapping |
| Building Modeling | Building Modeling |
| Oblique Photogrammetry | Oblique Photogrammetry |
| Digital Twin | Digital Twin |
| Large-Scale 3D Modeling | Large-Scale 3D Modeling |
| Rapid Aerial Data Collection | Rapid Aerial Data Collection |
| Package Contents | |
| Package Contents | 1 × SHARE 105S PRO – 130 MP 5-Lens Oblique Aerial Camera |
