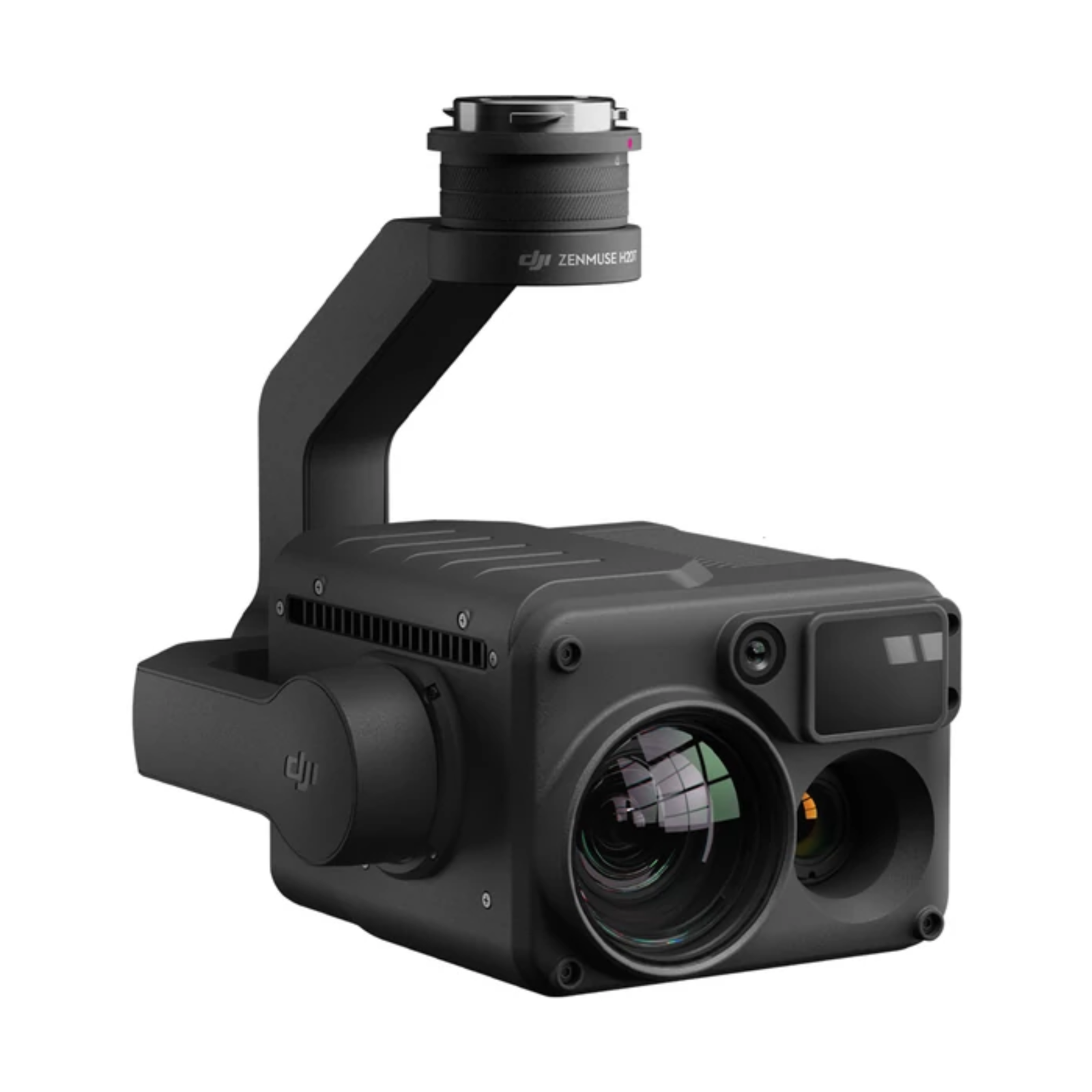

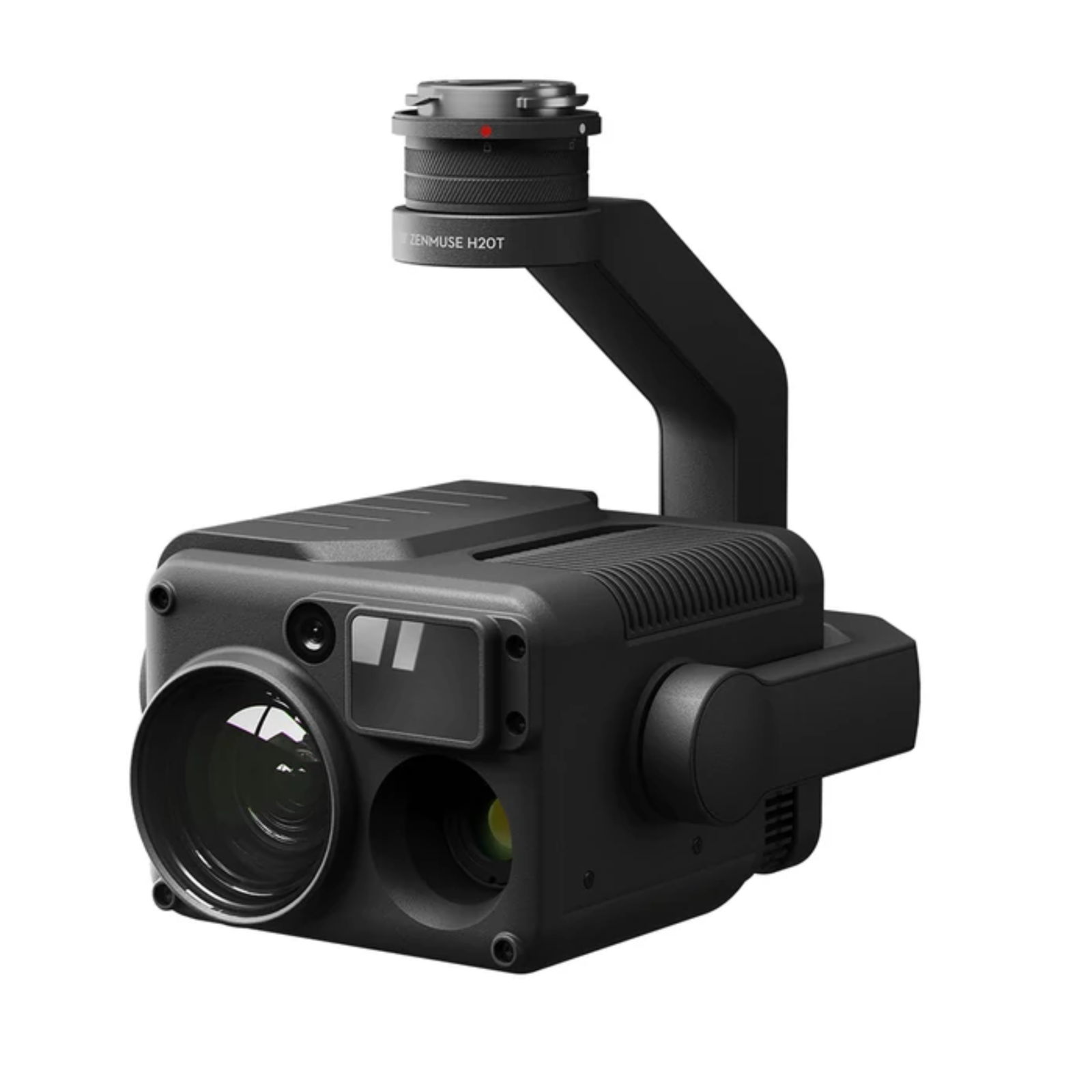

DJI ZENMUSE H20T RENTAL
![DJI ZENMUSE H20T RENTAL [1]](https://gomagcdn.ro/domains3/zerovec.ro/files/product/original/inchiriere-dji-zenmuse-h20t-876735.png "DJI ZENMUSE H20T RENTAL [1]")
![DJI ZENMUSE H20T RENTAL [2]](https://gomagcdn.ro/domains3/zerovec.ro/files/product/original/inchiriere-dji-zenmuse-h20t-690971.png "DJI ZENMUSE H20T RENTAL [2]")
Capture every detail, regardless of distance or visibility conditions. The camera delivers clear images in natural colors and thermal imaging, while the integrated laser rangefinder (LRF) enables distance measurements to objects up to 1,200 m away. A powerful, fully integrated solution designed to expand the intelligent capabilities of DJI industrial drone platforms.
Ediție:
Product Code:
C370
Do you need help?
0770531656
- Description
- Reviews (0)
| Specifications | |
|---|---|
| General | |
| Weight | 828 ± 5 g |
| Dimensions | 167 × 135 × 161 mm |
| Ingress Protection Rating | IP44 |
| Operating Temperature | -20 °C to 50 °C (temperature measurement only between -10 °C and 50 °C) |
| Storage Temperature | -20 °C to 60 °C |
| Laser Safety | Class 1M (IEC 60825-1:2014) |
| Supported Aircraft | DJI Matrice 300 RTK, DJI Matrice 350 RTK |
| Gimbal | |
| Controllable Range | Pitch: -120° to +30° Yaw: ±320° |
| Mechanical Range | Pitch: -132.5° to +42.5° Yaw: ±330° Roll: -90° to +60° |
| Angular Vibration Range / Mount | ±0.01° / detachable |
| Zoom Camera | |
| Sensor | 1/1.7" CMOS, 20 MP |
| Lens | DFOV: 66.6° – 4° Focal length: 6.83 – 119.94 mm (equivalent 31.7 – 556.2 mm) Aperture: f/2.8 – f/11 (normal), f/1.6 – f/11 (night scene) Focus: 1 m – ∞ (wide), 8 m – ∞ (telephoto) |
| Focus / Exposure Mode | MF / AF-C / AF-S; auto or manual exposure, compensation ±3.0 (1/3 steps) |
| Shutter Speed / ISO | 1 – 1/8000 s / ISO 100 – 25600 (photo and video) |
| Video | 3840 × 2160 @ 30 fps, 1920 × 1080 @ 30 fps (MP4, with subtitles) |
| Photo | 5184 × 3888 (JPEG) |
| Wide Camera | |
| Sensor | 1/2.3" CMOS, 12 MP |
| Lens | DFOV: 82.9° Focal length: 4.5 mm (equivalent 24 mm), aperture f/2.8 Focus: 1 m – ∞ |
| Video / Photo | 1920 × 1080 @ 30 fps (MP4) / 4056 × 3040 (JPEG) |
| Thermal Camera | |
| Sensor | Uncooled VOx microbolometer, 12 μm pixel pitch, 8 – 14 μm spectral band |
| Lens | DFOV: 40.6° Focal length: 13.5 mm (equivalent 58 mm), aperture f/1.0 Focus: 5 m – ∞ Digital zoom: 1×, 2×, 4×, 8× |
| Resolution | Video 640 × 512 @ 30 Hz (MP4) / image 640 × 512 (R-JPEG, 16-bit) |
| NETD | ≤ 50 mK @ f/1.0 |
| Temperature Measurement | Spot and area measurement; scene range -40 °C to 150 °C (High Gain) / -40 °C to 550 °C (Low Gain); temperature alert |
| FFC / Palettes | Auto / manual; White Hot, Fulgurite, Iron Red, Hot Iron, Medical, Arctic, Rainbow 1, Rainbow 2, Tint, Black Hot |
| Laser Rangefinder | |
| Wavelength | 905 nm (Class 1M) |
| Measurement Range | 3 – 1200 m (vertical surface ≥ 12 m diameter, 20% reflectivity) |
| Measurement Accuracy | ± (0.2 m + D × 0.15%), D = distance to a vertical surface |
| Features | |
| Zoom | 23× hybrid optical zoom (DFOV 4°, equivalent 556.2 mm) Max zoom 200× (DFOV 0.5°, equivalent 4800 mm) |
| One Click Capture | Saves photo or video from all 3 cameras simultaneously (zoom, wide, thermal) |
| Point to Aim | Double-click on the wide/thermal view and the gimbal automatically moves to the point of interest |
| High-Res Grid Photo | Frame an area in the wide view and the zoom camera automatically captures a set of 20 MP images, stored with an overview image |
| Night Scene / Timestamp | Supported (zoom camera) / GPS, date, and time |
| Storage | |
| Supported SD Card | MicroSD, max 128 GB (UHS-1 Speed Grade 3) File systems: FAT32 (≤ 32 GB), exFAT (> 32 GB) |
